0719733508 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 0719733508

0719733508: Description2.54mm (.100") pitch C-grid? pcb connector, dual row, right angle, early entryreceptacle, without flange, 16 circuits, lead free; File Size5MB，30 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

0719733508 Overview

2.54mm (.100") pitch C-grid? pcb connector, dual row, right angle, early entryreceptacle, without flange, 16 circuits, lead free

Preview

Download Datasheet

View All

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0719733530

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® PCB Connector, Dual Row, Right Angle, Early Entry

Receptacle, without Flange, 60 Circuits, Lead free

Documents:

3D Model

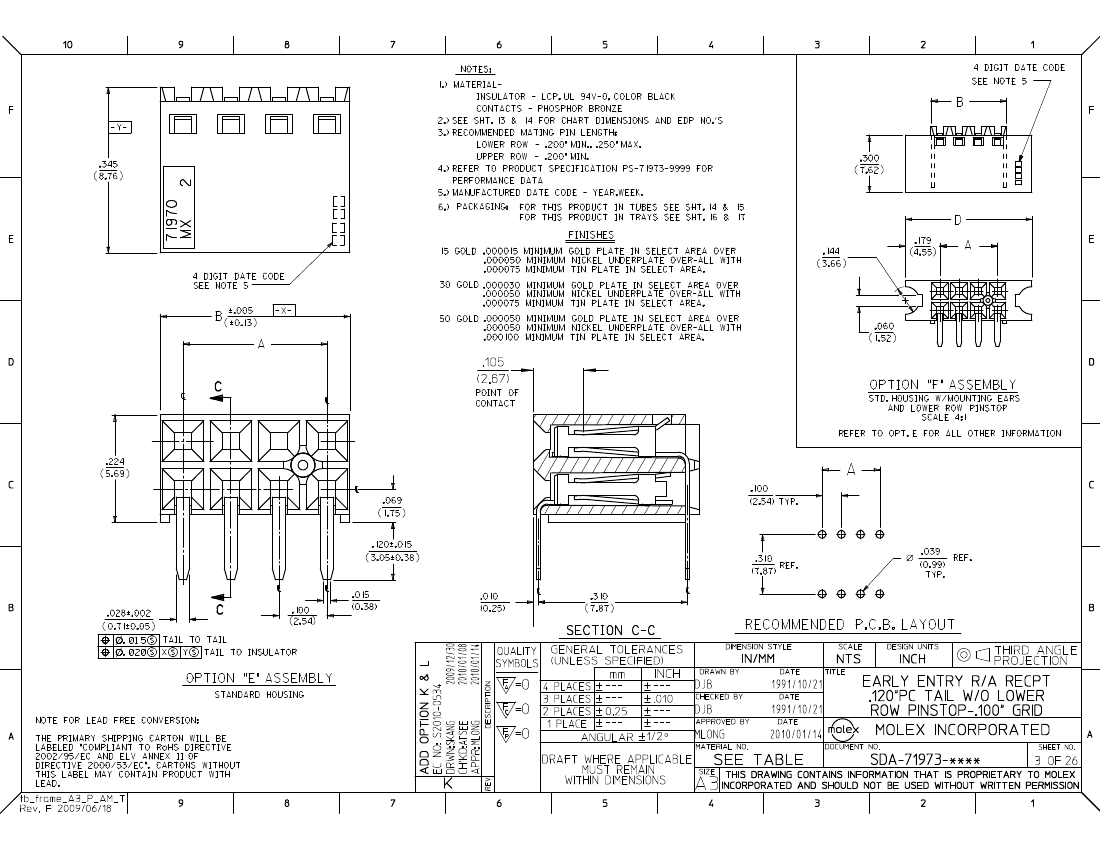

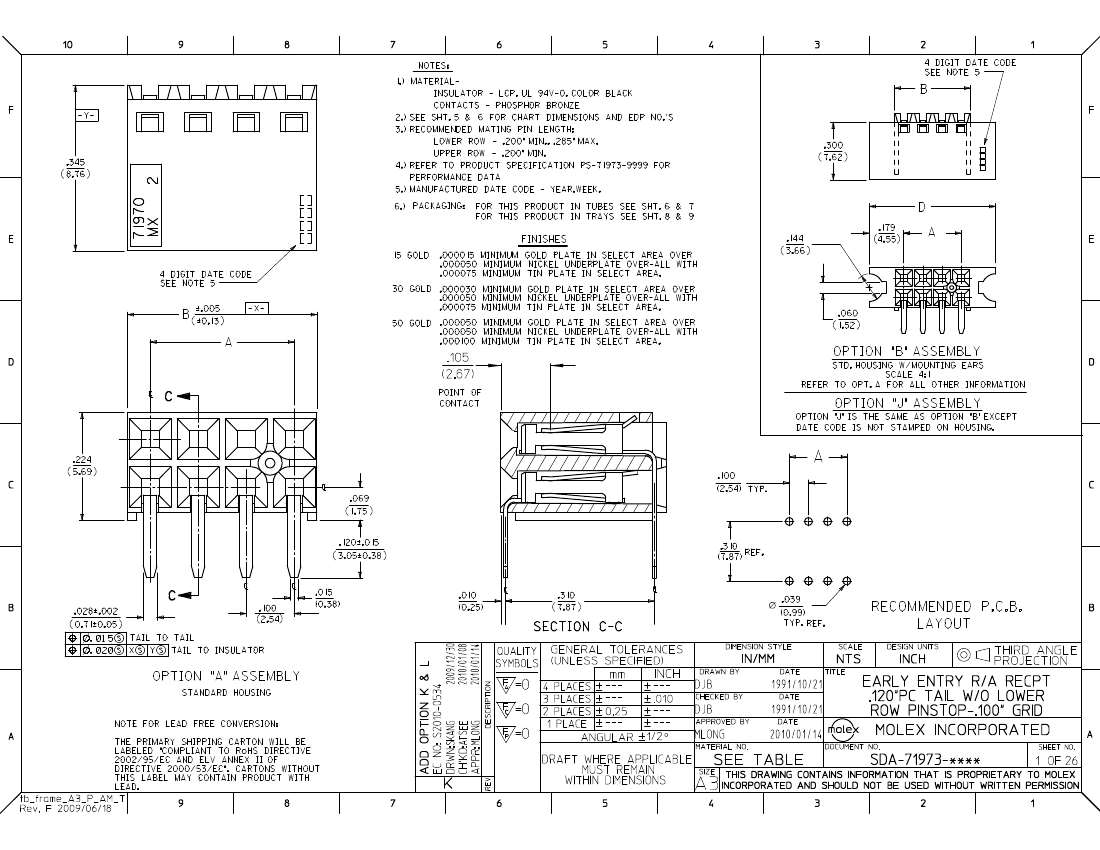

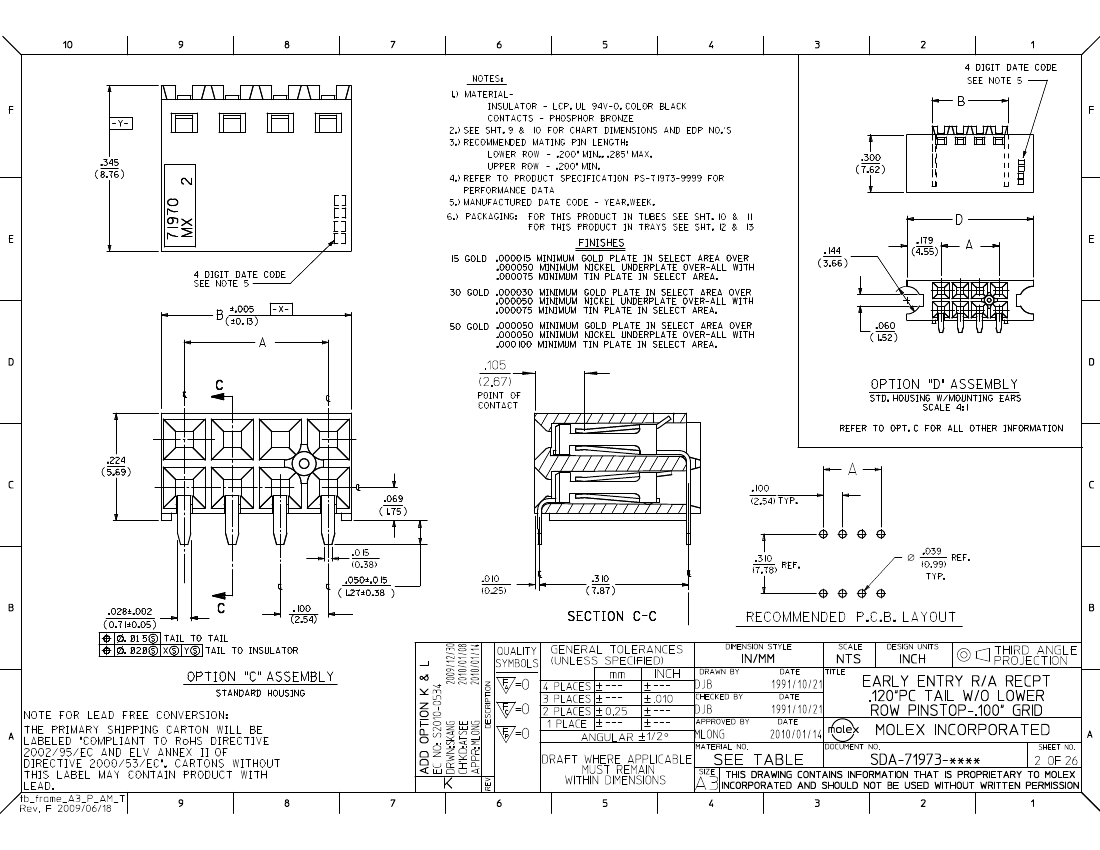

Drawing (PDF)

Product Specification PS-71973-9999 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

71973

Board-to-Board

cgrid__sl_products

C-Grid®

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.120 In

3.05 mm

None

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

0.76

1.90

-40°C to +105°C

Through Hole

Search Parts in this Series

71973Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers

0719733508 Related Products

	0719733508	0719733530
Description	2.54mm (.100") pitch C-grid? pcb connector, dual row, right angle, early entryreceptacle, without flange, 16 circuits, lead free	2.54mm (.100") pitch C-grid? pcb connector, dual row, right angle, early entryreceptacle, without flange, 60 circuits, lead free
