MAAMSS0045
High Dynamic Range Low Noise Amplifier
1400 - 2000 MHz
Features
•
Low Noise Figure: 1.4 dB
•
High Input IP3: +18 dBm at 8 V, 45 mA bias
+8 dBm at 3 V, 20 mA bias
•
High Gain: 14 dB
•
Single Supply: +3 to +8 VDC
•
Adjustable current: 20 to 60 mA with external
resistor
•
Lead-Free SOIC-8 Package
•
100% Matte Tin Plating over Copper
•
Halogen-Free “Green” Mold Compound
•
260°C Reflow Compatible
•
RoHS* Compliant Version of AM50-0004
Rev. V1
Functional Block Diagram
Description
M/A-COM’s MAAMSS0045 is a high dynamic range,
GaAs MMIC, low noise amplifier in a lead-free
SOIC 8-lead, surface mount, plastic package. It
employs external input matching to obtain optimum
noise figure performance and operating frequency
flexibility. The MAAMSS0045 also features flexible
biasing to control the current consumption vs.
dynamic range trade-off. The MAAMSS0045 can
operate from any positive supply voltage in the 3 V
to 8 V range. Its current can be controlled over a
range of 20 mA to 60 mA with an external resistor.
The MAAMSS0045 is ideally suited for use where
low noise figure, high gain, high dynamic range, and
low power consumption are required.
Typical
applications included receiver front ends in PDC,
DCS-1800, DCS-1900 and other PCN/PCS base
stations. It is also useful as a gain block, buffer,
driver, and IF amplifier in both fixed or portable PDC
and PCN/PCS systems.
The MAAMSS0045 is fabricated using a low-cost
0.5-micron gate length GaAs process. The process
features full passivation for increased performance
and reliability. The MAAMSS0045 is 100% RF
tested to ensure performance specification
compliance.
Pin Configuration
Pin No.
1
2
3
4
5
6
7
8
Pin Name
GND
R
EXT
RF IN
GND
GND
RF OUT
V
DD
GND
Description
RF and DC Ground
External Current Control
(optional)
RF Input of the amplifier
RF and DC Ground
RF and DC Ground
RF Output of the amplifier
Positive supply voltage
RF and DC Ground
Ordering Information
1,2
Part Number
MAAMSS0045
MAAMSS0045TR-3000
MAAMSS0045SMB
Package
Bulk Packaging
3000 piece reel
Sample Test Board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0045
High Dynamic Range Low Noise Amplifier
1400 - 2000 MHz
Electrical Specifications: T
A
= +25°C, Z
0
= 50
Ω,
F = 1785 MHz, P
in
= -30 dBm
Parameter
Gain
Noise Figure
Input VSWR
Output VSWR
Output 1 dB Compression
Input IP3
Reverse Isolation
Drain Current
Test Conditions
5 V, 45 mA
3
3 V, 20 mA
5 V, 45 mA
3
3 V, 20 mA
—
—
5 V, 45 mA
3
3 V, 20 mA
5 V, 45 mA
3
3 V, 20 mA
—
5 V, 45 mA
2
Units
dB
dB
dB
dB
Ratio
Ratio
dBm
dBm
dBm
dBm
dB
mA
Min.
12.0
—
—
—
—
—
—
—
13.0
—
—
30
Typ.
14
12.5
1.4
1.5
1.5:1
2.0:1
16.0
9.0
15
8.0
22
45
Max.
—
—
1.8
—
—
—
—
—
—
—
—
60
Rev. V1
3. Using external 15
Ω
resistor. See functional schematic on page 3.
Absolute Maximum Ratings
4,5
Parameter
V
DD
Input Power
Current
6
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
+10 VDC
+17 dBm
80 mA
+150°C
-40°C to +85°C
-65°C to +150°C
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive to
electrostatic discharge (ESD) and can be damaged by
static electricity. Proper ESD control techniques should
be used when handling these devices.
Channel Temperature
7
Operating Temperature
Storage Temperature
4. Exceeding any one or combination of these limits may cause
permanent damage.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
6. When pin #2 is used to increase current. (See note 9)
7. Thermal resistance (θjc) = +99°C/W.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0045
High Dynamic Range Low Noise Amplifier
1400 - 2000 MHz

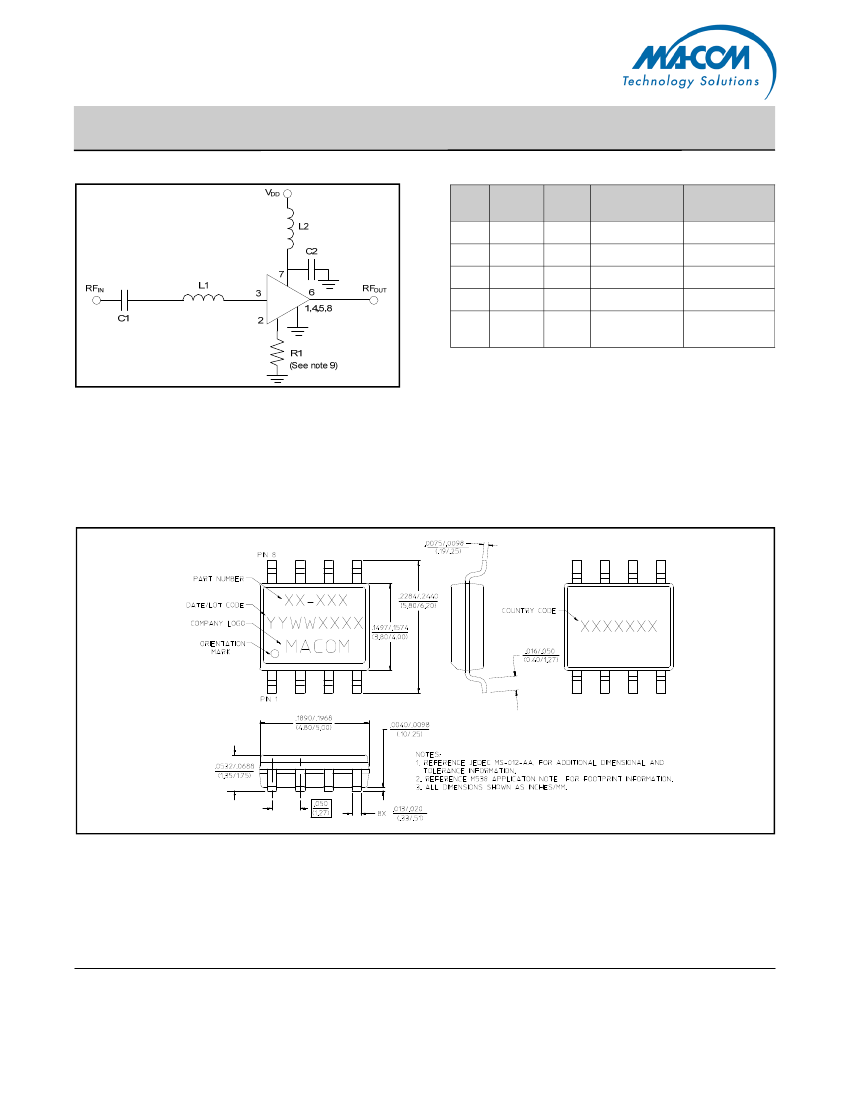

Functional Schematic
External Components List
8
Part
C1
C2
L1
L2
R1
Value
47 pF
47 pF
3.9 nH
12 nH
see
note 9
Case
Manufacturer
Size
0603
0603
0603
0603
0603
Murata
Murata
Coilcraft
Coilcraft
Panasonic
Purpose
DC Block
By-Pass
Tuning
RF Choke
Optional
current control
Rev. V1
8. All external circuitry parts are readily available, low cost
surface mount components (.060 in. x .030 in. or .080 in.
x .050 in.).
9. Pin 2 allows use of an external resistor to ground for
optional, higher current. For 20 mA operation, no resistor is
used.
For I
DD
~ 30 mA, R1 = 39 ohms;
I
DD
~ 45 mA, R1 = 15 ohms
I
DD
~ 60 mA, R1 = 6 ohms.
Lead-Free SOIC-8
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0045
High Dynamic Range Low Noise Amplifier
1400 - 2000 MHz

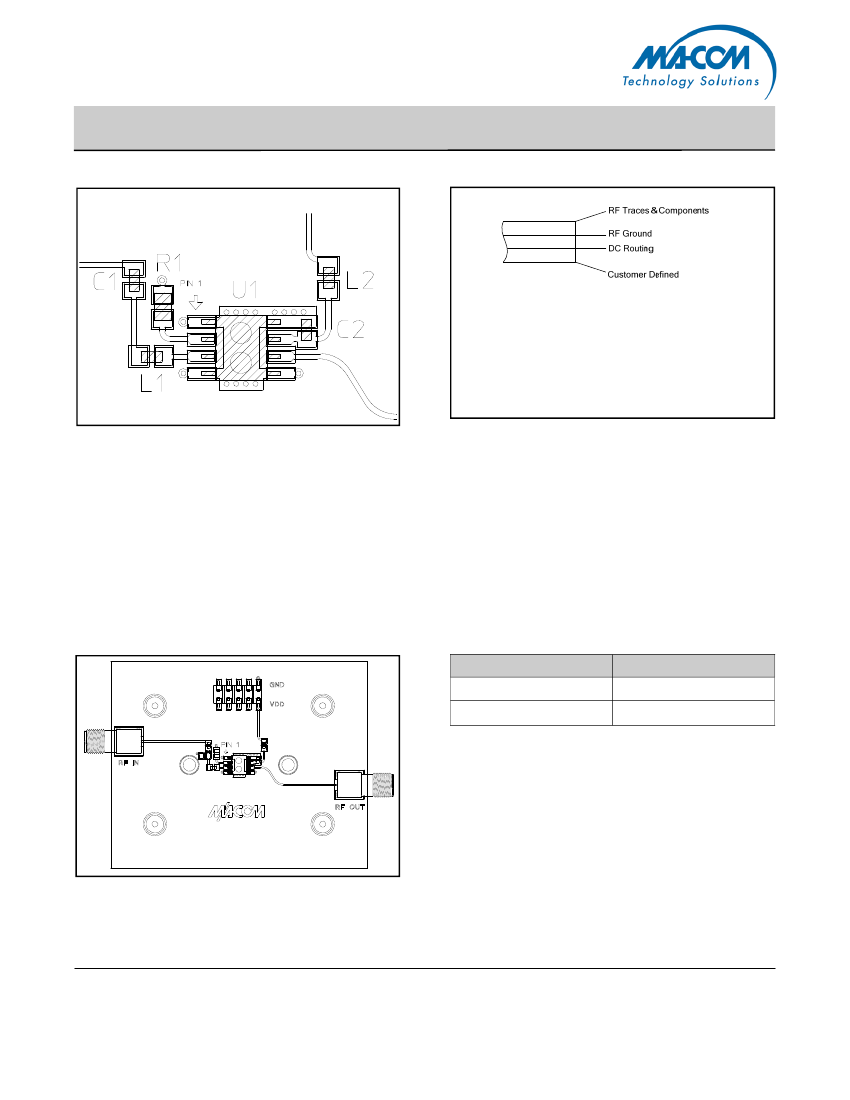

Recommended PCB Configuration
Layout View
Rev. V1
Cross Section View
The PCB dielectric between RF traces and RF ground
layers should be chosen to reduce RF discontinuities
between 50
Ω
lines and package pins. M/A-COM
recommends an FR-4 dielectric thickness
of .008” (0.20 mm) yielding a 50
Ω
lines width of
0.015” (0.38 mm). The recommended RF metalization
is 1 ounce copper.
Designer’s Kit MAAMSS0045SMB
The MAAMSS0045SMB Designer’s Kit allows for immediate evaluation of M/A-COM’s MAAMSS0045. The
Designer’s Kit includes an MAAMSS0045 mounted on an evaluation board and five loose MAAMSS0045’s. The
evaluation board consists of the recommended external surface mount circuitry, RF connectors, and a DC
multi-pin connector, all mounted to a multi-layer FR-4 PCB. The MAAMSS0045SMB evaluation PCB is
illustrated below with all functional ports labeled.
MAAMSS0045 Evaluation Board
Evaluation PCB & RF Connector Losses
Port Reference
RF In
RF Out
Approximate RF Loss
0.15 dB @ 1785 MHz
0.15 dB @ 1785 MHz
The DC connector on the Designer’s Kit PCB allows convenient
DC line access. This is accomplished by the one or more of the
following methods.
1. A mating female multi-pin connector (Newark Electronics
Stock # 46F-4658, not included).
2. Wires soldered to the necessary pins (not included).
3. Clip leads (not included).
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAMSS0045
High Dynamic Range Low Noise Amplifier
1400 - 2000 MHz

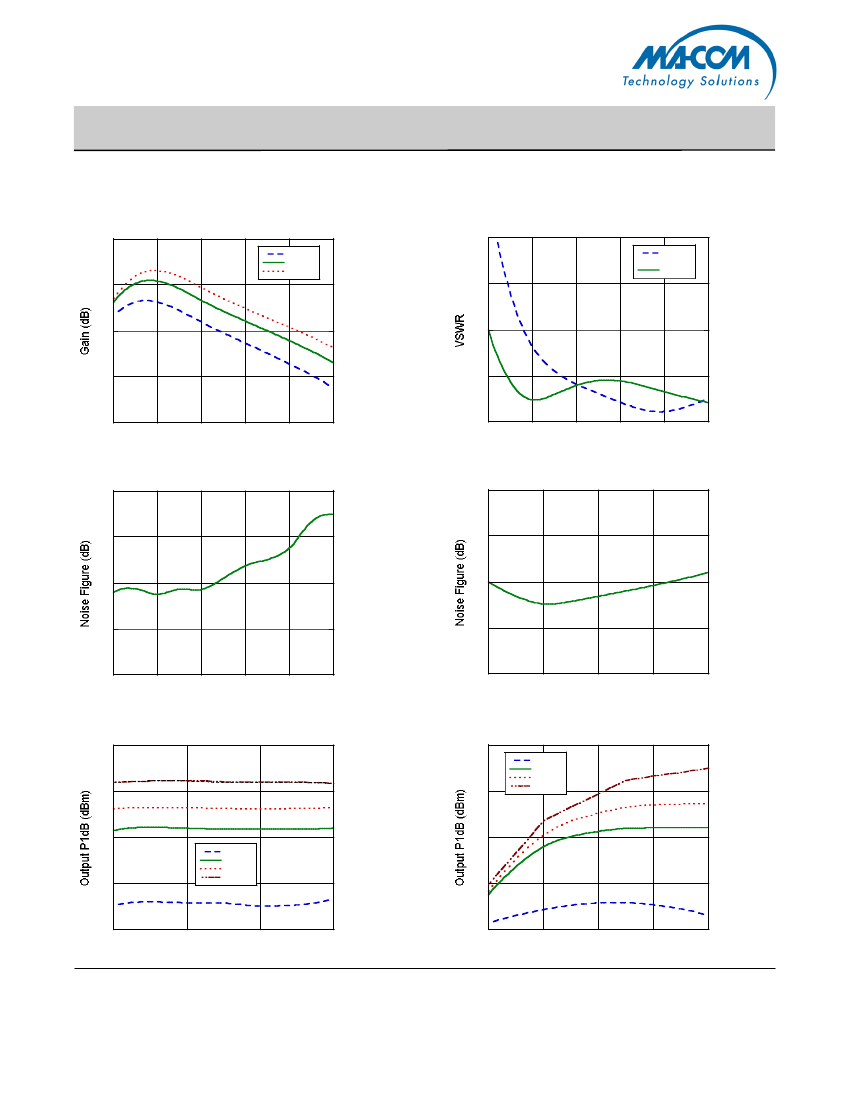

Typical Performance Curves
T
A
= +25°C, Z
0
= 50
Ω,
V
DD
= 5 V, I
DD
= 45 mA unless otherwise specified.
Gain vs. Frequency
18
3 VOLTS
5 VOLTS
8 VOLTS
Rev. V1
VSWR vs. Frequency
5
INPUT
OUTPUT
16
4
14
3
12
2
10
1.2
1.4
1.6
1.8
2.0
2.2
1
1.2
1.4
1.6
1.8
2.0
2.2
Frequency (GHz)
Frequency (GHz)
Noise Figure vs. Frequency
1.6
Noise Figure vs. Current, F = 1785 MHz
1.6
1.5
1.5
1.4
1.4
1.3
1.3
1.2
1.7
1.2
1.8
1.9
2.0
2.1
2.2
20
30
40
50
60
Frequency (GHz)
Current (mA)
Output P1 dB vs. Frequency
24
Output P1 dB vs. Current, F = 1785 MHz
24
3 VOLTS
5 VOLTS
6 VOLTS
8 VOLTS
20
20
16
3 VOLTS
5 VOLTS
6 VOLTS
8 VOLTS
16
12
12
8
1.7
8
1.8
1.9
2.0
20
30
40
50
60
Frequency (GHz)
Current (mA)
5
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
京公网安备 11010802033920号
EEWORLD
