MAXIMUM
SOLUTIONS
Multi-Purpose Terminal:
Solderless Press-fit/Wire Termination/Board Edge Mount
Mill-Max introduces a new terminal pin suitable for use in a variety of board-to-board and wire-to-board ap-
plications. It features a compliant press-fit tail, slotted head and an additional press-fit feature on the barrel
of the pin. These characteristics combine to provide functional, versatile and reliable connection options.

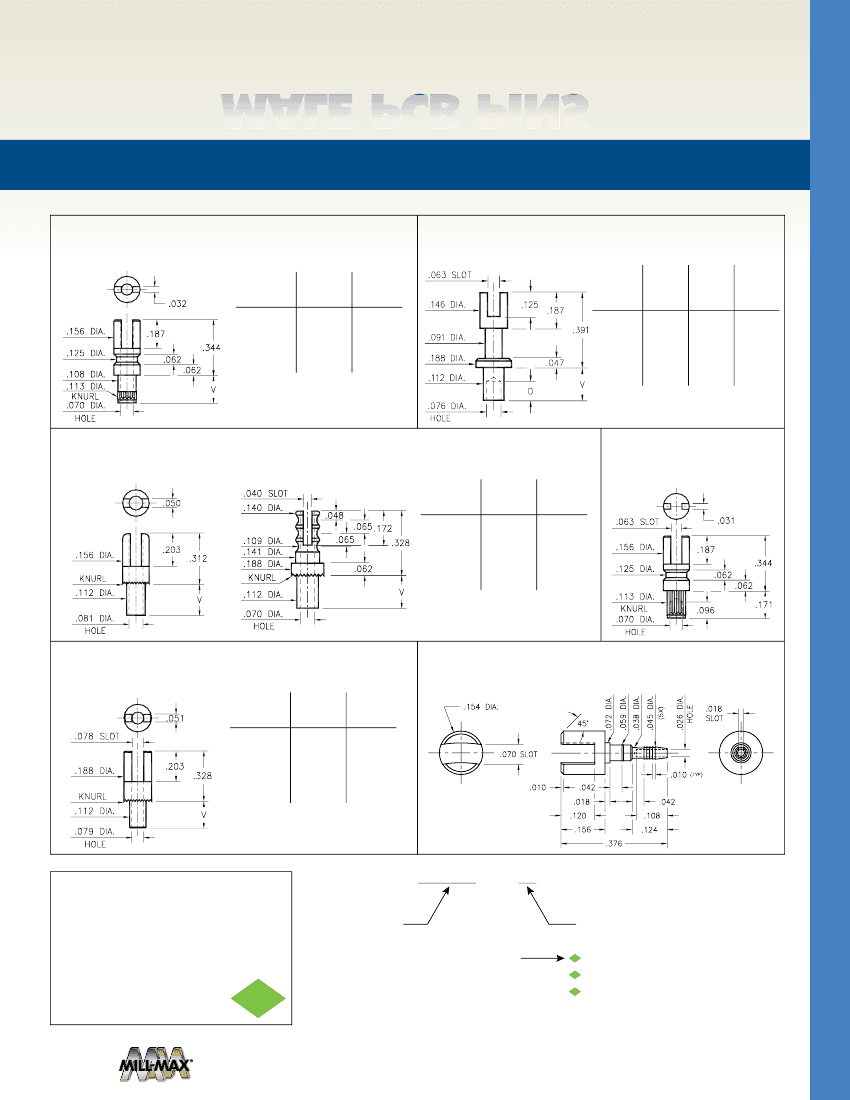

The new
3622-0-32-15-00-00-03-0
pin is designed to be a versatile solution for some popular interconnect
configurations. The pins can be used individually or they can be packaged in customer specified connector
arrangements. The solderless press-fit tail allows the pins to be staked into printed circuit board holes and
then have soldering operations performed on the slotted end of the pin without compromising the connec-
tion to the board. The compliant press-fit tail is designed to work with standard .040” (1,02 mm) +/- .003”
(,0762 mm) plated-through-holes and will provide a gas tight connection.
The 3622 can be used as an edge board mount pin by fitting the board into the slotted end of the pin; this
facilitates right angle board-to-board mating such as daughter card to mother board. When used for board
edge connections, the printed circuit board is slipped into the slot and soldered; this may be done before
or after the compliant tails are pressed into the adjoining board. The slot will accept board thicknesses up
to .062” (1,57 mm)*. The 3622 can also be used for wire-to-board applications where a permanent termina-
tion of wires, for power or signal transmission, is required. Once the pin is pressed into the board, the wire
can be placed into the slot and soldered. Since there is no soldering operation required to make the secure
electrical connection to the board, there is no concern about compromising this connection during the
soldering of wires. The slot will accept up to #16 AWG stranded wire.
The 3622 slotted, compliant tail terminal is a versatile, robust and convenient solution for board-to-board
and wire-to-board interconnect applications. Like all Mill-Max pins, the 3622 is precision-machined to the
highest quality and consistency. It is available with standard 10 micro inches gold plating (thicker gold plat-
ing available upon request).
* The machining process produces an arc through the slot. When using multiple pins in line, the slots need to be uniformly oriented
to maximize usable slot width.
For more information, please visit:
www.mill-max.com/PR655.
(6/15-- PR655)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
