KMQ SERIES
KMQ
Series
Snap Mount
Downsize
Large
Capacitance
RoHS
Compliant
105 C
Maximum
Temperature
Engineering Bulletin Mar 07
SNAP MOUNT 105 C
KMQ

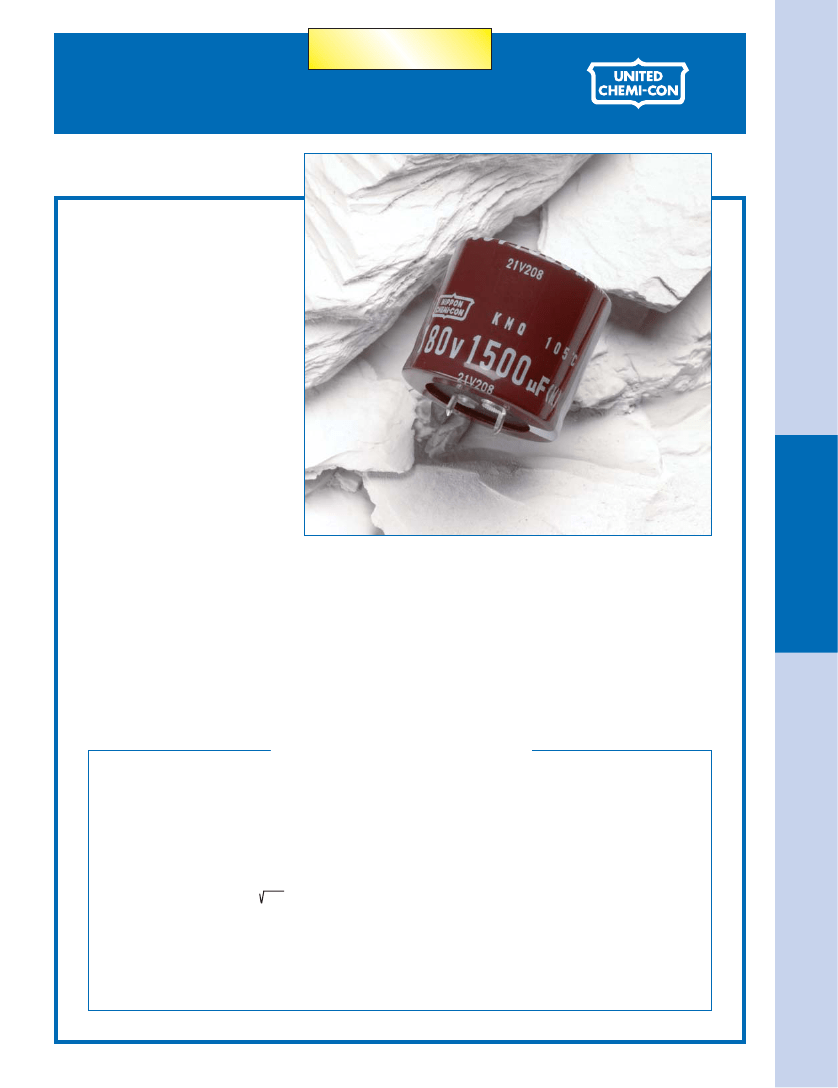

The KMQ series is a snap-in capacitor series that offers downsized versions of the current
miniaturized KMM series. These capacitors have a rated lifetime of 2,000 hours at 105 C with the
rated ripple current applied. With high ripple current capability and higher CV per case size than the
KMM series, the KMQ capacitors are suitable for many downsized power supply circuits. The
standard KMQ capacitors have a 2-pin snap-in terminal style. The KMQ series is RoHS compliant
offering Pb -free construction and PET (polyester) sleeves with no end disk as the standard.
The standard KMQ series capacitors are
not
solvent proof. Refer to guidelines and precautions on the
website for usage and installation conditions recommended for United Chemi-Con products.
Summary of Specifications
PC board 2-pin snap-in terminals.
Capacitance range: 68 to 33,000µF.
Voltage range: 35, 50, 160 to 450VDC.
Category temperature range: 40 C to 105 C for 35V and 50V; 25 C to 105 C
for 160 to 450V.
Leakage current: 3 CV (µA) maximum after 5 minutes at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 22 25mm to 35 50mm.
Rated lifetime: 2,000 hours at 105 C with the rated ripple current applied.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1/8
KMQ Series
KMQ Specifications - Snap Mount
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
40 to 105 C for 35 and 50VDC;
35, 50, 160 to 450VDC
68 to 33,000 F
20% ( M ) at
20 C, 120Hz
20 C.
Characteristics
Engineering Bulletin Mar 07
25 to 105 C for 160 to 450VDC
I
≤
3 CV ( A ) after 5 minutes at
At
20 C, 120Hz
35
< 10,000
0.30
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
Rated Voltage ( V )
Capacitance ( F )
Tan
( DF ) Max.
50
≥10,000
0.35
< 10,000
0.25
≥10,000
0.30
160 - 250
—
0.15
315 - 400
—
0.15
420, 450
—
0.20
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
Z ( 40 C ) / Z ( 20 C )
35, 50
10
4
160 - 250
4
—
25 C or
315 - 400
8
—
40 C value and
420, 450
8
—
20 C value shall not
Rated Ripple Current Multipliers
Frequency (Hz )
DC Rated Voltage
50Hz
0.95
0.81
0.77
120Hz
1.00
1.00
1.00
300Hz
1.03
1.17
1.16
1kHz
1.05
1.32
1.30
10kHz
1.08
1.45
1.41
50kHz
1.08
1.50
1.43
SNAP MOUNT 105 C
35V, 50V
160 - 250V
315 - 450V
KMQ
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to 20 C after
subjecting them to DC voltage for 2,000 hours at 105 C with the rated ripple current applied.
The sum of the DC voltage and peak AC voltage must not exceed the full rated voltage of
the capacitors.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
15% of initial measured value
Tan ( DF )
:
≤
150% of initial specified value
Leakage current
:
≤
initial specified value
Diagram of Dimensions - Snap Mount
Snap Mount
Type VSN
Ø
22~
Ø
35
PET Sleeve
See
Pin
Detail
PC board pin-out
Unit: mm
VS Pin Dimensions
W
2
10
2-2x
W
1
Edge
of can
D 1
P
*
Vent
L
2
W
Standard design does not have a plastic end disk.
Type
VSN
P
4.0 0.5
1.5
W
0.2
W
1
1.0
W
2
1.0
*
Vent may be located either on the bottom or side of the can.
2 /8
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMQ Series
Part Numbering System for KMQ Series
18 Fields
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18
Engineering Bulletin Mar 07
When ordering, always specify complete 18-field global part number.
E KMQ 1 8 1 V S N 1 5 2 M A 3 0 S
9
8
7
6
5
4
3
Supplement Code.
Field 18.
All construction options listed have Sn100% terminal plating.
S = PET sleeve without end disk.
W = PET sleeve with end disk.
Case Size.
Fields 15, 16 and 17.
The single letter diameter code is inserted in field 15.
P =
Ø
22mm
Q =
Ø
25.4mm
R =
Ø
30mm
A =
Ø
35mm
The double digit length code is inserted in fields 16 and 17.
25 = 25mm
30 = 30mm
35 = 35mm
40 = 40mm
45 = 45mm
50 = 50mm
Capacitance Tolerance.
Field 14.
M = 20%
Capacitance.
Fields 11, 12 and 13.
Expressed in Microfarads. The first two digits are significant
figures inserted in fields 11 and 12, and the third digit inserted
in field 13 indicates the number of zeros for capacitance of
10 F or more. R indicates the decimal point for capacitance
less than 10 F (e.g. 1R5 = 1.5 F; 150 = 15 F; 151 = 150 F;
152 = 1,500 F; 153 = 15,000 F ).
Dummy Terminals.
Field 10.
N = No dummy terminals.
Terminal Type.
Fields 8 and 9.
VS = Snap-in pins.
DC Rated Voltage.
Fields 5, 6 and 7.
Expressed in Volts. The first two digits are significant figures
inserted in fields 5 and 6, and the third digit inserted in field 7
indicates the number of zeros for rated voltage of 10VDC or
more. R indicates the decimal point for rated voltage less than
10VDC (e.g. 1R8 = 1.8VDC; 180 = 18VDC; 181 = 180VDC).
Rule Exception: Coding for rated voltage 315VDC = 3B1.
Series Name.
Fields 2, 3 and 4.
Enter the 3-letter/digit series name in fields 2, 3 and 4. If the
series name is only 2 letters/digits, place a dash in field 4.
For a series name with more than 3 letters/digits, refer to the
individual series for the appropriate 3-field series name.
Capacitor Type.
Field 1.
Aluminum Electrolytic Capacitor (Polar).
SNAP MOUNT 105 C
KMQ
2
1
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
3 /8
KMQ Series
Standard Voltage Ratings - Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Global
Part Number
Nominal
Case Size*
D L ( mm )
Case
Size
Code
Engineering Bulletin Mar 07
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
(A rms) at
105 C, 120Hz
1.87
2.04
2.36
2.65
3.0
3.47
2.0
2.21
2.49
2.88
3.15
3.61
4.14
2.62
2.9
3.25
3.78
4.3
5.0
3.2
3.6
4.1
4.64
5.37
6.0
1.65
1.92
2.08
2.43
2.63
3.05
1.76
2.04
2.5
2.61
2.94
3.6
4.0
2.29
2.8
3.3
3.6
4.0
4.29
2.77
3.6
4.0
4.37
4.5
5.3
1.4
1.5
1.7
2.0
2.2
1.7
2.0
35 Volts
44 Volts Surge
SNAP MOUNT 105 C
4,700
5,600
6,800
8,200
10,000
12,000
5,600
6,800
8,200
10,000
12,000
15,000
18,000
8,200
10,000
12,000
15,000
18,000
22,000
12,000
15,000
18,000
22,000
27,000
33,000
2,700
3,300
3,900
4,700
5,600
6,800
3,300
3,900
4,700
5,600
6,800
8,200
10,000
4,700
5,600
6,800
8,200
10,000
12,000
6,800
8,200
10,000
12,000
15,000
18,000
470
560
680
820
1,000
680
820
EKMQ350VSN472MP25S
EKMQ350VSN562MP25S
EKMQ350VSN682MP30S
EKMQ350VSN822MP35S
EKMQ350VSN103MP40S
EKMQ350VSN123MP50S
EKMQ350VSN562MQ25S
EKMQ350VSN682MQ25S
EKMQ350VSN822MQ30S
EKMQ350VSN103MQ35S
EKMQ350VSN123MQ35S
EKMQ350VSN153MQ40S
EKMQ350VSN183MQ50S
EKMQ350VSN822MR25S
EKMQ350VSN103MR25S
EKMQ350VSN123MR30S
EKMQ350VSN153MR35S
EKMQ350VSN183MR40S
EKMQ350VSN223MR50S
EKMQ350VSN123MA25S
EKMQ350VSN153MA25S
EKMQ350VSN183MA30S
EKMQ350VSN223MA35S
EKMQ350VSN273MA40S
EKMQ350VSN333MA50S
EKMQ500VSN272MP25S
EKMQ500VSN332MP30S
EKMQ500VSN392MP30S
EKMQ500VSN472MP35S
EKMQ500VSN562MP40S
EKMQ500VSN682MP50S
EKMQ500VSN332MQ25S
EKMQ500VSN392MQ25S
EKMQ500VSN472MQ30S
EKMQ500VSN562MQ35S
EKMQ500VSN682MQ40S
EKMQ500VSN822MQ45S
EKMQ500VSN103MQ50S
EKMQ500VSN472MR25S
EKMQ500VSN562MR25S
EKMQ500VSN682MR30S
EKMQ500VSN822MR35S
EKMQ500VSN103MR40S
EKMQ500VSN123MR50S
EKMQ500VSN682MA25S
EKMQ500VSN822MA30S
EKMQ500VSN103MA30S
EKMQ500VSN123MA35S
EKMQ500VSN153MA40S
EKMQ500VSN183MA50S
EKMQ161VSN471MP25S
EKMQ161VSN561MP30S
EKMQ161VSN681MP30S
EKMQ161VSN821MP35S
EKMQ161VSN102MP40S
EKMQ161VSN681MQ25S
EKMQ161VSN821MQ30S
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
35
35
35
35
35
35
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
35
35
35
35
35
35
22
22
22
22
22
25.4
25.4
25
25
30
35
40
50
25
25
30
35
35
40
50
25
25
30
35
40
50
25
25
30
35
40
50
25
30
30
35
40
50
25
25
30
35
40
45
50
25
25
30
35
40
50
25
30
30
35
40
50
25
30
30
35
40
25
30
P25
P25
P30
P35
P40
P50
Q25
Q25
Q30
Q35
Q35
Q40
Q50
R25
R25
R30
R35
R40
R50
A25
A25
A30
A35
A40
A50
P25
P30
P30
P35
P40
P50
Q25
Q25
Q30
Q35
Q40
Q45
Q50
R25
R25
R30
R35
R40
R50
A25
A30
A30
A35
A40
A50
P25
P30
P30
P35
P40
Q25
Q30
0.106
0.089
0.073
0.061
0.058
0.048
0.089
0.073
0.061
0.058
0.048
0.039
0.032
0.061
0.058
0.048
0.039
0.032
0.026
0.048
0.039
0.032
0.026
0.021
0.018
0.153
0.126
0.106
0.089
0.074
0.061
0.126
0.106
0.089
0.074
0.061
0.051
0.050
0.089
0.074
0.061
0.051
0.050
0.041
0.061
0.051
0.050
0.041
0.033
0.028
0.529
0.444
0.366
0.303
0.249
0.366
0.303
KMQ
50 Volts
63 Volts Surge
160 Volts
200 Volts Surge
†
For construction options, refer to the part numbering system for descriptions and codes.
*
Refer to diagram of dimensions for detailed case size specifications.
4 /8
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMQ Series
Standard Voltage Ratings - Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Global
Part Number
Nominal
Case Size*
D L ( mm )
Case
Size
Code
Engineering Bulletin Mar 07
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
(A rms) at
105 C, 120Hz
2.2
2.3
2.5
2.7
2.0
2.2
2.3
2.5
2.7
2.9
3.1
2.3
2.5
2.7
2.9
3.1
3.3
1.3
1.4
1.5
1.7
2.0
2.2
1.5
1.7
2.0
2.2
2.3
2.5
2.0
2.2
2.3
2.5
2.7
2.9
2.2
2.3
2.5
2.7
2.9
3.1
1.31
1.45
1.67
1.75
2.04
2.3
1.67
1.75
2.04
2.3
2.65
2.04
2.3
2.65
160 Volts
200 Volts Surge
1,000
1,200
1,500
1,800
820
1,000
1,200
1,500
1,800
2,200
2,700
1,200
1,500
1,800
2,200
2,700
3,300
390
470
560
680
820
1,000
560
680
820
1,000
1,200
1,500
820
1,000
1,200
1,500
1,800
2,200
1,000
1,200
1,500
1,800
2,200
2,700
390
470
560
680
820
1,000
560
680
820
1,000
1,200
820
1,000
1,200
EKMQ161VSN102MQ35S
EKMQ161VSN122MQ40S
EKMQ161VSN152MQ45S
EKMQ161VSN182MQ50S
EKMQ161VSN821MR25S
EKMQ161VSN102MR25S
EKMQ161VSN122MR30S
EKMQ161VSN152MR35S
EKMQ161VSN182MR40S
EKMQ161VSN222MR45S
EKMQ161VSN272MR50S
EKMQ161VSN122MA25S
EKMQ161VSN152MA30S
EKMQ161VSN182MA30S
EKMQ161VSN222MA35S
EKMQ161VSN272MA40S
EKMQ161VSN332MA50S
EKMQ181VSN391MP25S
EKMQ181VSN471MP30S
EKMQ181VSN561MP30S
EKMQ181VSN681MP35S
EKMQ181VSN821MP40S
EKMQ181VSN102MP45S
EKMQ181VSN561MQ25S
EKMQ181VSN681MQ30S
EKMQ181VSN821MQ30S
EKMQ181VSN102MQ40S
EKMQ181VSN122MQ45S
EKMQ181VSN152MQ50S
EKMQ181VSN821MR25S
EKMQ181VSN102MR30S
EKMQ181VSN122MR35S
EKMQ181VSN152MR40S
EKMQ181VSN182MR45S
EKMQ181VSN222MR50S
EKMQ181VSN102MA25S
EKMQ181VSN122MA30S
EKMQ181VSN152MA30S
EKMQ181VSN182MA35S
EKMQ181VSN222MA40S
EKMQ181VSN272MA50S
EKMQ201VSN391MP25S
EKMQ201VSN471MP30S
EKMQ201VSN561MP30S
EKMQ201VSN681MP40S
EKMQ201VSN821MP45S
EKMQ201VSN102MP50S
EKMQ201VSN561MQ25S
EKMQ201VSN681MQ30S
EKMQ201VSN821MQ35S
EKMQ201VSN102MQ45S
EKMQ201VSN122MQ50S
EKMQ201VSN821MR25S
EKMQ201VSN102MR30S
EKMQ201VSN122MR35S
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
35
35
35
35
35
35
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
35
35
35
35
35
35
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
30
30
30
35
40
45
50
25
25
30
35
40
45
50
25
30
30
35
40
50
25
30
30
35
40
45
25
30
30
40
45
50
25
30
35
40
45
50
25
30
30
35
40
50
25
30
30
40
45
50
25
30
35
45
50
25
30
35
Q35
Q40
Q45
Q50
R25
R25
R30
R35
R40
R45
R50
A25
A30
A30
A35
A40
A50
P25
P30
P30
P35
P40
P45
Q25
Q30
Q30
Q40
Q45
Q50
R25
R30
R35
R40
R45
R50
A25
A30
A30
A35
A40
A50
P25
P30
P30
P40
P45
P50
Q25
Q30
Q35
Q45
Q50
R25
R30
R35
0.249
0.207
0.166
0.138
0.303
0.249
0.207
0.166
0.138
0.113
0.092
0.207
0.166
0.138
0.113
0.092
0.075
0.638
0.529
0.444
0.366
0.303
0.249
0.444
0.366
0.303
0.249
0.207
0.166
0.303
0.249
0.207
0.166
0.138
0.113
0.249
0.207
0.166
0.138
0.113
0.092
0.638
0.529
0.444
0.366
0.303
0.249
0.444
0.366
0.303
0.249
0.207
0.303
0.249
0.207
SNAP MOUNT 105 C
KMQ
180 Volts
225 Volts Surge
200 Volts
250 Volts Surge
†
For construction options, refer to the part numbering system for descriptions and codes.
*
Refer to diagram of dimensions for detailed case size specifications.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
5 /8
京公网安备 11010802033920号
EEWORLD
