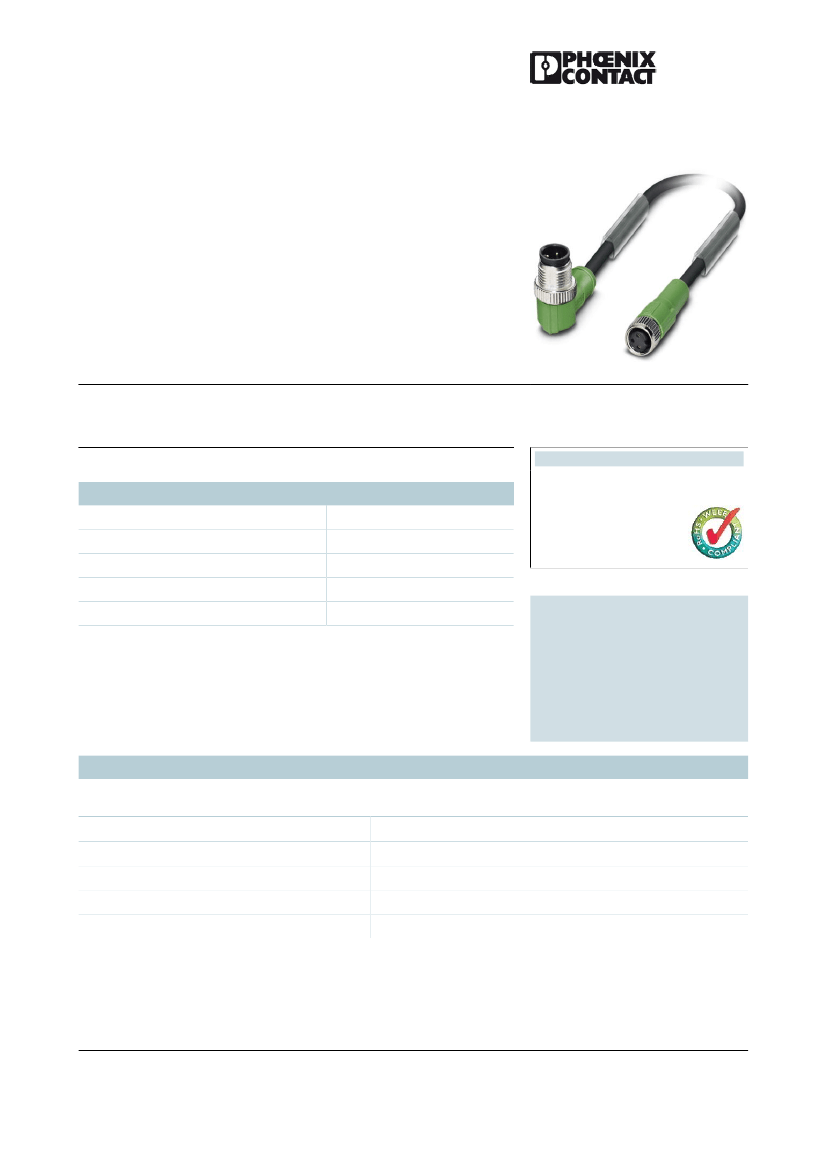

SAC-3P-M12MR/1,5-PUR/M 8FS
Order No.: 1668894
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668894
Sensor/actuator cable, 3-pos., PUR halogen-free black, angled M12
plug, on straight M8 socket, cable length: 1.5 m
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918135812
1 pcs.
85444290
0.0471 KG
Page 76 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
12/01/2005
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
4A
60 V
3
≤ 5 mΩ
≥ 100 MΩ
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 5
Jul 12, 2009
SAC-3P-M12MR/1,5-PUR/M 8FS
Order No.: 1668894
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668894
Length of cable
Ambient temperature (operation)
1.5 m
-25 °C ... 90 °C (plug/socket)
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
Conductor data
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure, signal line
Core diameter including insulation
Thickness, insulation
External cable diameter
Wire colors
External sheath, color
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Overall twist
PUR halogen-free black
PUR
Li9Y11Y-HF
0.25 mm²
24
32 x 0.10 mm
1.15 mm ±0.05 mm
≥ 0.38 mm (Core insulation)
4.40 mm
Brown, blue, black
Black-gray RAL 7021
≥ 100 GΩ*km
≤ 77.6 MΩ/km
300 V
4000 V
3 wires, twisted
A - standard
HB
II
3
IP65/IP68/IP69K
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
NBR
No
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 5
Jul 12, 2009
SAC-3P-M12MR/1,5-PUR/M 8FS
Order No.: 1668894
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668894
Outer sheath, material
Material conductor insulation
Conductor material
Cable weight
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Special properties
PUR
PP
Bare Cu litz wires
23 kg/km
44 mm
4000000
44 mm
10 m
3 m/s
10 m/s²
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or
varnish
Flame resistance
Freedom from halogen
Resistance to oil
Other resistance
As per UL-Style 20549
As per DIN VDE 0472 part 815
complying with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant

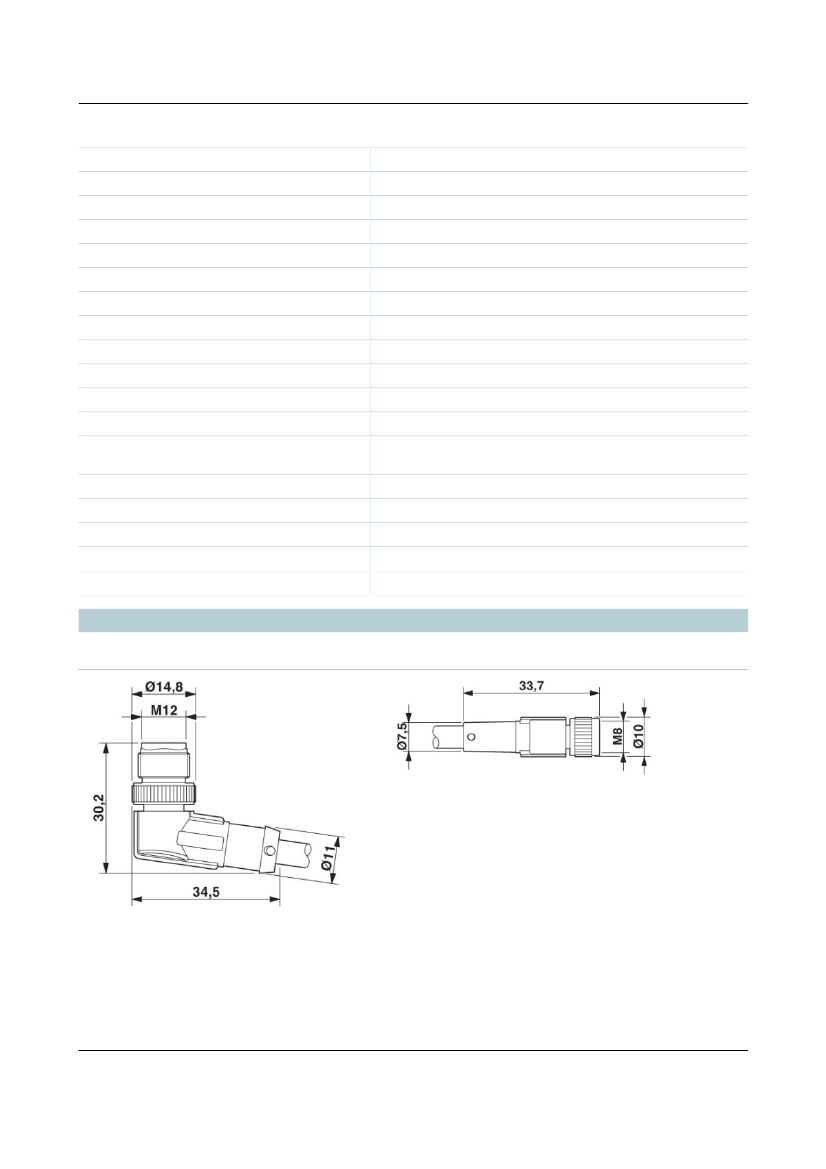

Drawings
Dimensioned drawing
Socket M8 x 1, straight
M12 x 1 male connector, angled
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 5
Jul 12, 2009
SAC-3P-M12MR/1,5-PUR/M 8FS
Order No.: 1668894
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668894

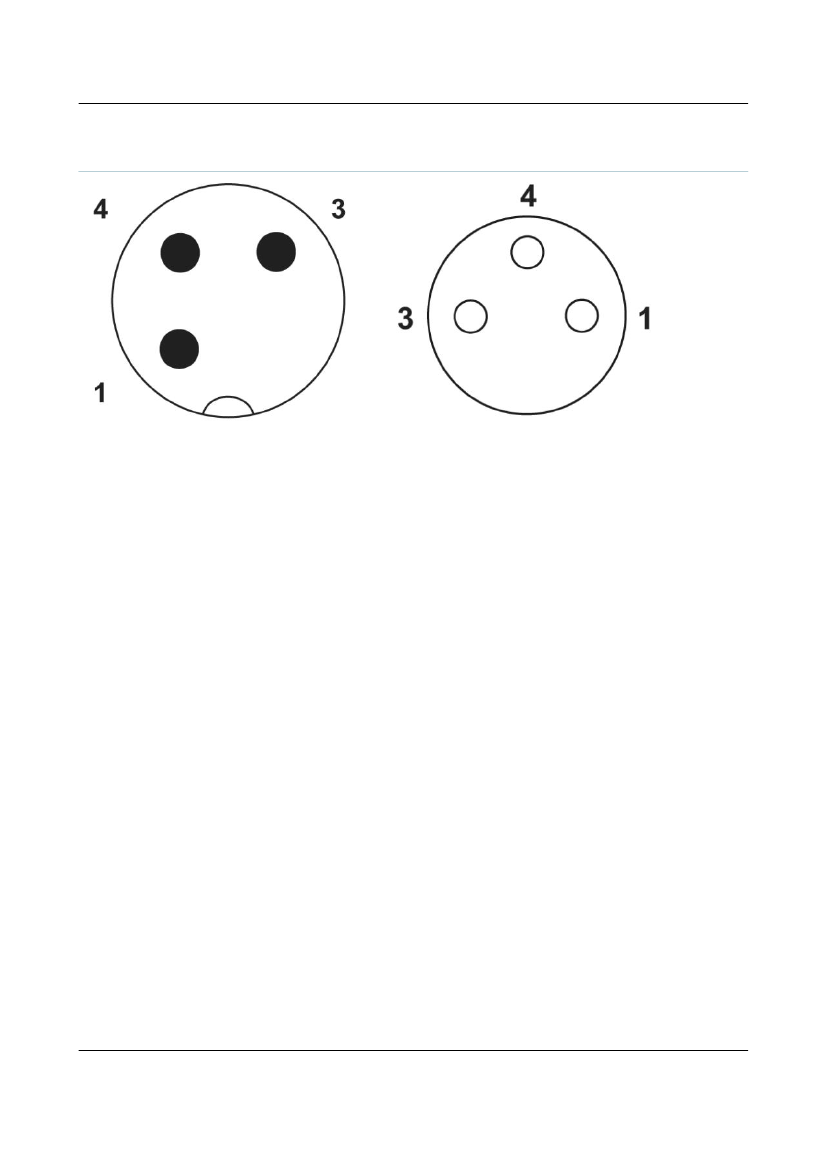

Schematic diagram
Pin assignment M12 plug, 3-pos., A-coded,
view male side
Pin assignment M8 socket, 3-pos., view female
side
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 4 / 5
Jul 12, 2009
SAC-3P-M12MR/1,5-PUR/M 8FS
Order No.: 1668894
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1668894
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 5 / 5
Jul 12, 2009
