353620670 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 353620670

353620670: Description2.00mm (.079") pitch Sherlock? wire-to-board header, vertical, with positive lock, 6circuits, with kinked PC tails, tube packaging, natural; CategoryThe connector The connector; File Size344KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

353620670 Overview

2.00mm (.079") pitch Sherlock? wire-to-board header, vertical, with positive lock, 6circuits, with kinked PC tails, tube packaging, natural

353620670 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.217 inch
subject depth	0.335 inch
body length	0.563 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	35362
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

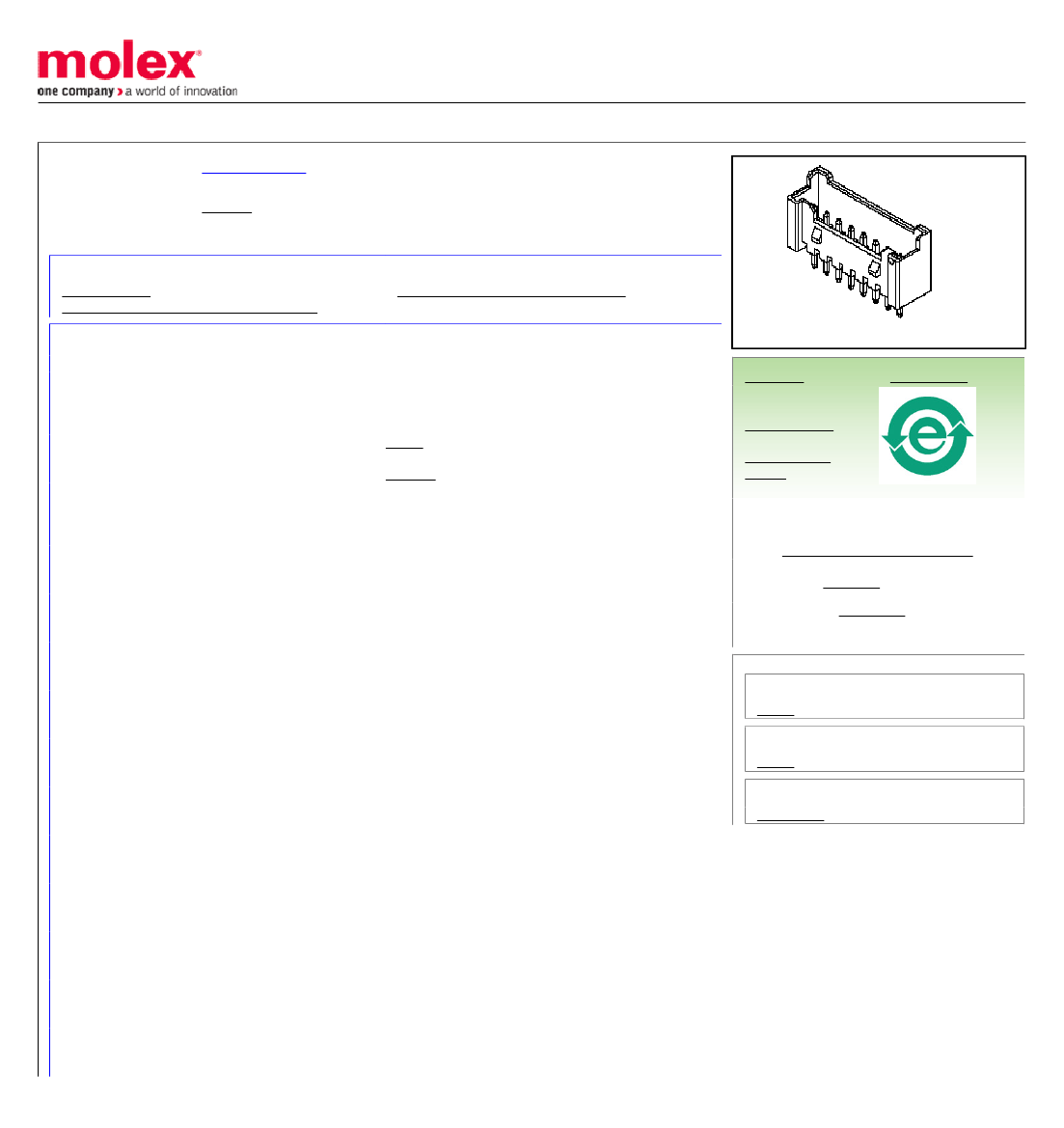

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0353620670

Active

sherlock

2.00mm (.079") Pitch Sherlock™ Wire-to-Board Header, Vertical, with Positive Lock, 6

Circuits, with Kinked PC Tails, Tube Packaging, Natural

Documents:

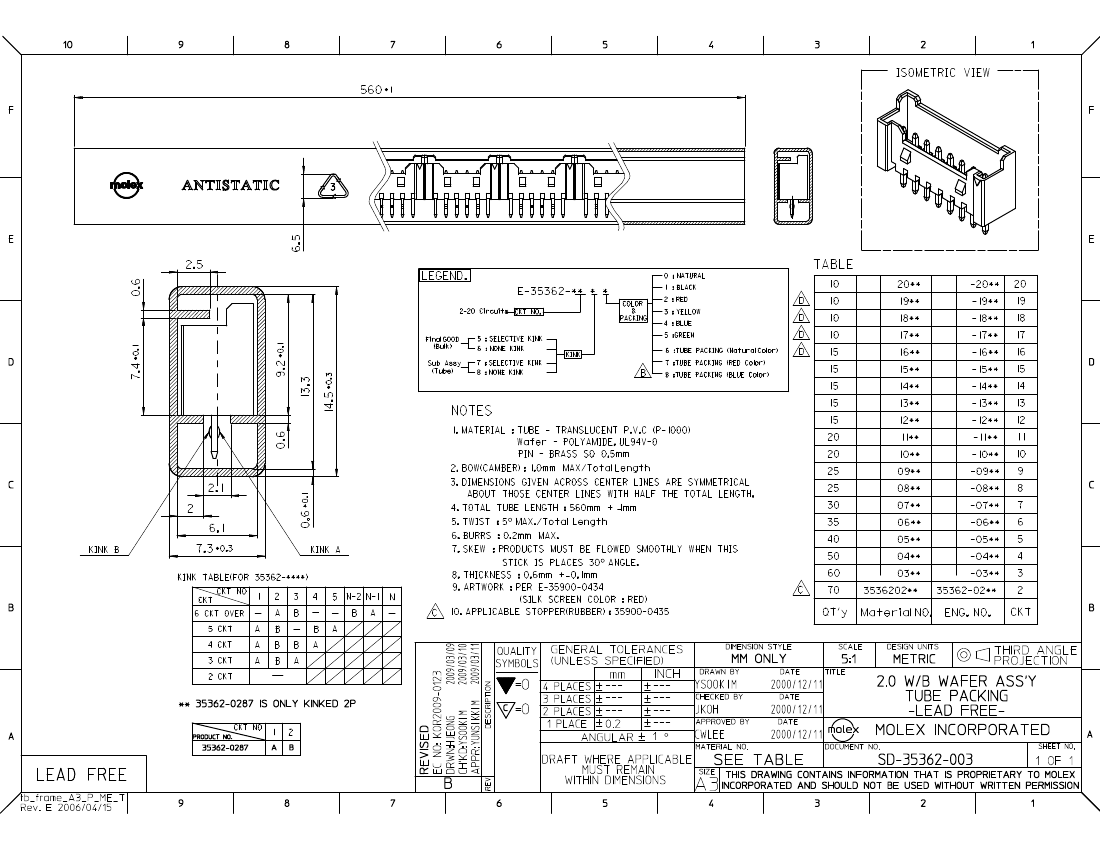

Drawing (PDF)

Product Specification PS-35507-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

35362

Wire-to-Board

sherlock

Sherlock™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Natural

94V-0

None

Yes

0.335 In

8.50 mm

Tin

Nylon

Vertical

3.30 mm

Yes

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

Yes

Partial

-40°C to +105°C

Search Parts in this Series

35362Series

Mates With

35507 Sherlock™ Wire-to-Board Housing

Use With

502128000 Terminal

353620670 Related Products

	353620670	35362-0670	0353620670
Description	2.00mm (.079") pitch Sherlock? wire-to-board header, vertical, with positive lock, 6circuits, with kinked PC tails, tube packaging, natural	6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2.00mm (.079") pitch Sherlock? wire-to-board header, vertical, with positive lock, 6circuits, with kinked PC tails, tube packaging, natural
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
package instruction	LEAD FREE	-	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	compliant	-	unknown
ECCN code	EAR99	-	EAR99
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	TIN
Contact point gender	MALE	-	MALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Manufacturer's serial number	35362	-	35362
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of rows loaded	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2 mm	-	2 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	6	-	6
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
