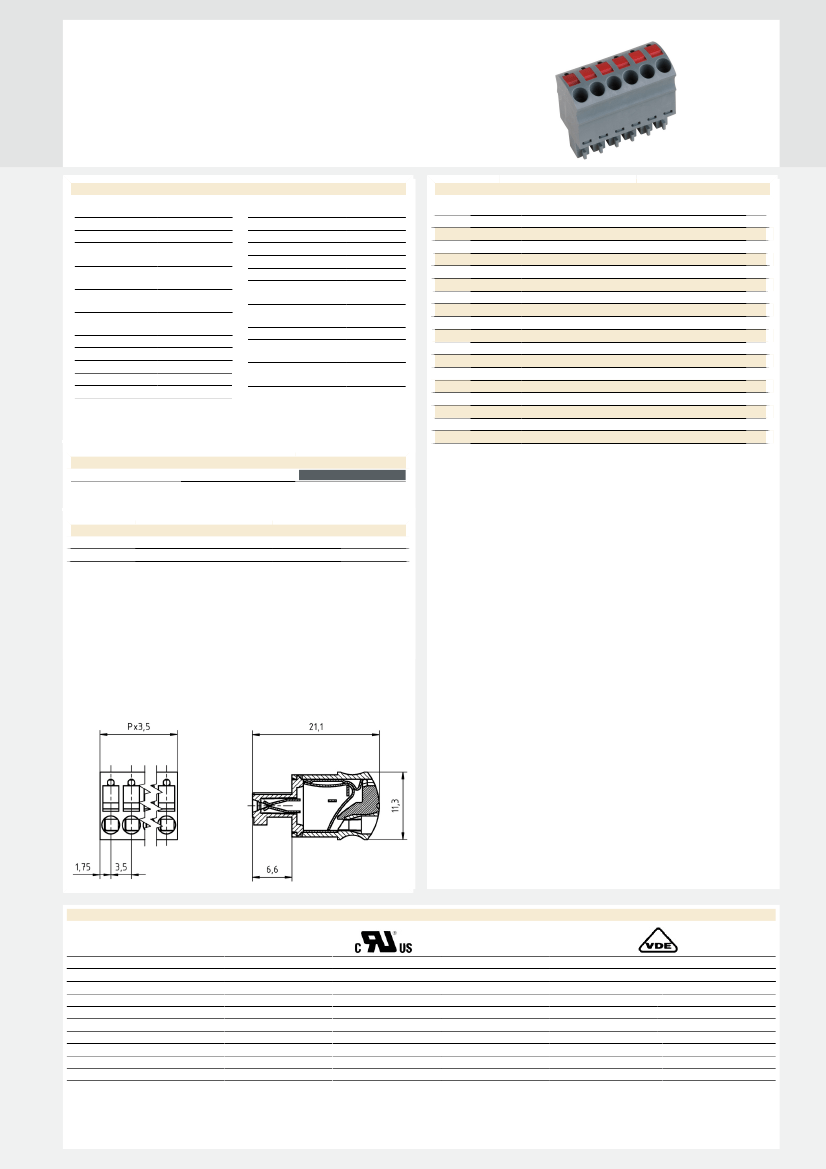

Push-In |
Spacing 3.5 mm
AK4561/..KD-3.5-BASALTGREY
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
-
-
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing 3.5 mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Width (mm)
7.00
10.50
14.00
17.50
21.00
24.50
28.00
31.50
35.00
38.50
42.00
45.50
49.00
52.50
56.00
59.50
63.00
66.50
70.00
Article Designation
AK4561/2KD-3.5-BASALTGREY
AK4561/3KD-3.5-BASALTGREY
AK4561/4KD-3.5-BASALTGREY
AK4561/5KD-3.5-BASALTGREY
AK4561/6KD-3.5-BASALTGREY
AK4561/7KD-3.5-BASALTGREY
AK4561/8KD-3.5-BASALTGREY
AK4561/9KD-3.5-BASALTGREY
AK4561/10KD-3.5-BASALTGREY
AK4561/11KD-3.5-BASALTGREY
AK4561/12KD-3.5-BASALTGREY
AK4561/13KD-3.5-BASALTGREY
AK4561/14KD-3.5-BASALTGREY
AK4561/15KD-3.5-BASALTGREY
AK4561/16KD-3.5-BASALTGREY
AK4561/17KD-3.5-BASALTGREY
AK4561/18KD-3.5-BASALTGREY
AK4561/19KD-3.5-BASALTGREY
AK4561/20KD-3.5-BASALTGREY
Article Number
54561020401F
54561030401F
54561040401F
54561050401F
54561060401E
54561070401E
54561080401D
54561090401D
54561100401D
54561110401D
54561120401D
54561130401D
54561140401D
54561150401D
54561160401D
54561170401D
54561180401D
54561190401D
54561200401D
PU
200
200
200
200
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
Stranded with Ferrule 0.25 mm²
min
Stranded with Ferrule 1.0 mm²
max
Dimensions
Stripped Length
Materials
Contact Spring
Clamp Spring
Copper Alloy
Stainless Steel
11.0 mm
Colours
BASALT GREY
RAL7012
RAL7012
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Counterparts (Spacing 3.5 mm)
Pin Strip/Terminal Blocks
STL1550
Ratings
*
Usegroup
Rated Voltage
Rated Current
Overvoltage Category
Rated Wire Size
solid
stranded
Test Voltage
Pollution Degree
B
300 V
10 A
C
-
-
D
300 V
10 A
min
0.14 mm² (3 A)
0.14 mm² (3 A)
2.5 kV
3
160 V
10 A
III
*
AWG 26-16
AWG 26-16
1.6 kV
-
-
-
AWG 26-16
AWG 26-16
1.6 kV
max
2.5 mm² (10 A)
1.5 mm² (10 A)
* Approval Pending
