Part Number:
Status:
Overview:
Description:
0674901230
Active
serial_ata_products
1.27mm (.050") Pitch Serial ATA Header, Standard Type, Surface Mount, Right Angle,
7 Circuits, with Mylar, Gold (Au) Flash, Embossed Tape on Reel Package, Lead-free
Documents:
3D Model

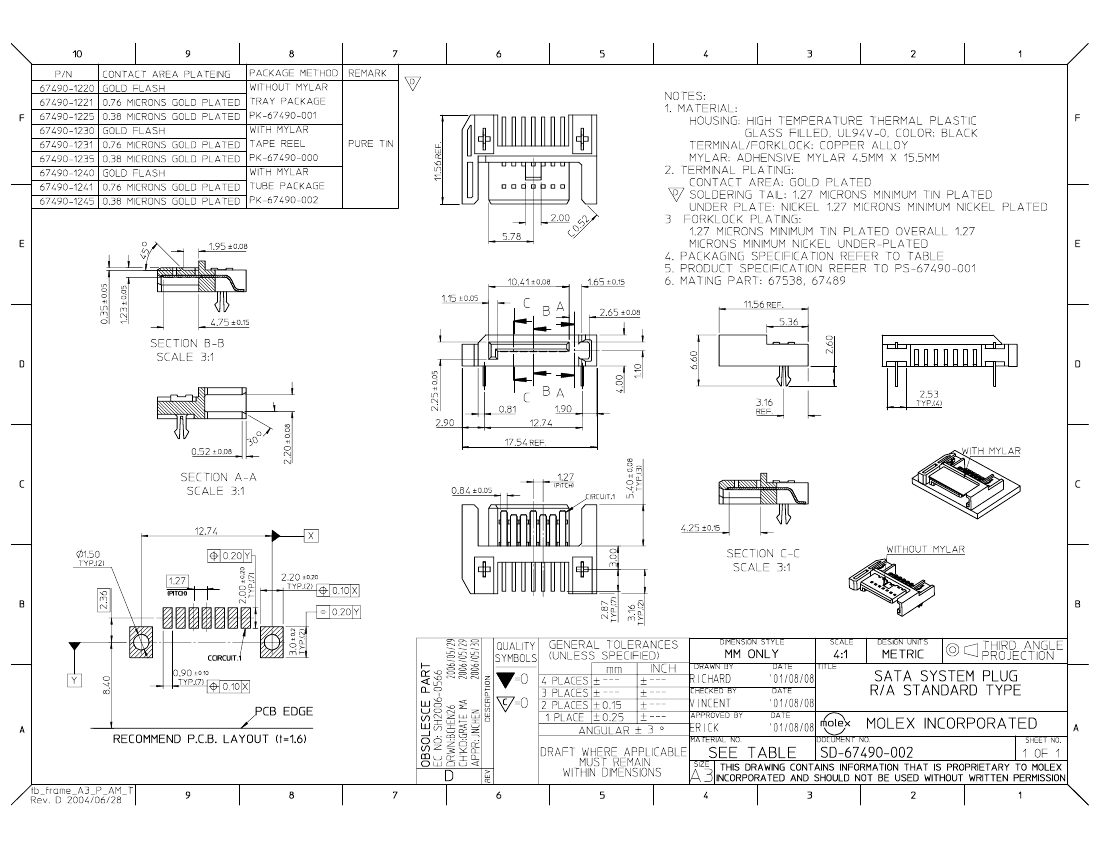

Drawing (PDF)
Product Specification PS-67490-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
PCB Headers
67490
Board-to-Board, Wire-to-Board
Standard Type|With Mylar
serial_ata_products
Serial ATA
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
7
7
Black
50
Yes
No
Yes
Yes
No
Gold
Tin
High Temperature Thermoplastic
1
Right Angle
No
Yes
0.062 In
1.60 mm
Embossed Tape on Reel
0.050 In
1.27 mm
0.050 In
1.27 mm
2
0.05
50.8
1.27
No
No
No
-35°C to +85°C
Surface Mount
Search Parts in this Series
67490Series
Mates With
Serial ATA Signal Connector 67489 , 88755
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.5A
15V DC
