DATASHEET
®
HTM HEAVY TRANSPORTATION SERIES 125 V MODULE
BMOD0063 P125 B14/B24/B04
BMOD0063 P125 B33
FEATURES AND BENEFITS
•
CAN Bus digital monitoring and communications
•
Highest power performance available
•
Over 1,000,000 duty cycles
•
Temperature and voltage monitoring
•
Ultra-low internal resistance
•
Shock and vibration immunity (ISO16750:T14, EN61373)
TYPICAL APPLICATIONS
•
Buses
•
Electric trains and trolleys
•
Heavy duty transportation
•
Cranes, RTGS
•
Utility vehicles
•
Mining Equipment
PRODUCT SPECIFICATIONS
CAPACITANCE
Nominal capacitance
Tolerance capacitance
B04/B14/B24/B33
63 F
+20% / -0%
125 V DC
135 V DC
130 V DC
4,000 V DC
VOLTAGE
Rated voltage
Surge voltage
Maximum operating voltage
Isolation voltage
50Hz, 1 min. Maximum string operating voltage 1,500 V DC
RESISTANCE
ESR, DC
Max., room temperature
18 mΩ
Max.
0.032°C/W
-40°C to +65°C
+50°C
-40°C to +70°C
± 5% at 25º C
± 150% at 25º C
1,750 W/kg
4,700 W/kg
2.53 Wh/kg
101.7 Wh
1,000,000
20% decrease
100% increase
Page 1 • Document number:
1014696.2
Resistance tolerance
Thermal resistance (Rth)
TEMPERATURE
Operating temperature range
Max. ambient operating temp.
Storage temperature range
Temperature characteristics
Capacitance change
Internal resistance change
POWER
Pd
Pmax
ENERGY
Emax
Energy available
Energy Available equals 1/2C (Vnom^2 – 1/2Vnom^2) /3600
CYCLES
Cycles 125 V to 62.5 V DC, RT
Capacitance change
Internal resistance
Within % of initial specified value.
Within % of initial specified value.
25 September 2009
DATASHEET
®
HTM HEAVY TRANSPORTATION SERIES 125 V MODULE
BMOD0063 P125 B14/B24/B04
BMOD0063 P125 B33
PRODUCT SPECIFICATIONS (cont.)
LIFESPAN
Lifetime 125 V DC, RT
Endurance
End of life characterized as -20% C from nominal C, or increase of 100% in ESR
After 1,500 hours application of rated voltage at 65°C. Within % of initial specified value.
B04/B14/B24/B33
100,000 hours
Capacitance change
Internal resistance change
Life test
After 10 years at rated voltage and 25°C. Within % of initial specified value.
<20% decrease
<60% increase
Capacitance change
Internal resistance
20% decrease
100% increase
5.2 mA
150 A
750 A
150 A
55 A
50%
Radsok®
See page 3
VMS
CURRENT
Leakage current
After 72 hours at 25°C. Initial leakage current can be higher.
Maximum continuous current
Maximum peak current, 1 sec
1 second, 10% duty cycle
Maximum continuous current with fan cooling
Assuming 15°C temperature rise above ambient temperature
Maximum continuous current with passive cooling
Self discharge
Assuming 15°C temperature rise above ambient temperature
% of initial V, 30 days RT 100V; 12 hours charge and hold
CONNECTION
Power terminal
Communications
MONITORING
Cell balancing
Voltage and Temperature Monitoring
(Maxwell Technologies® Voltage Management System)
CANBus SAE J1939 (B14/B24/B04)
Analog (B33)
762 x 425 x 265 (B14/B24/B33)
619 x 425 x 265 (B04)
59.5 kg
12V / 42W (B14)
24V / 55W (B24/B33)
No Fan (B04)
IP65; IP55 (fans)
SAE J2464
EN 61373; ISO16750 Table 14
SIZE
Dimensions
(
L x W x H) (mm) (±0.5mm)
Weight
RATINGS
Fan power
Max. each fan
Environmental Protection
Shock resistance
Vibration resistance
25 September 2009
Page 2 • Document number:
1014696.2
DATASHEET
®
HTM HEAVY TRANSPORTATION SERIES 125 V MODULE
BMOD0063 P125 B14/B24/B04
BMOD0063 P125 B33

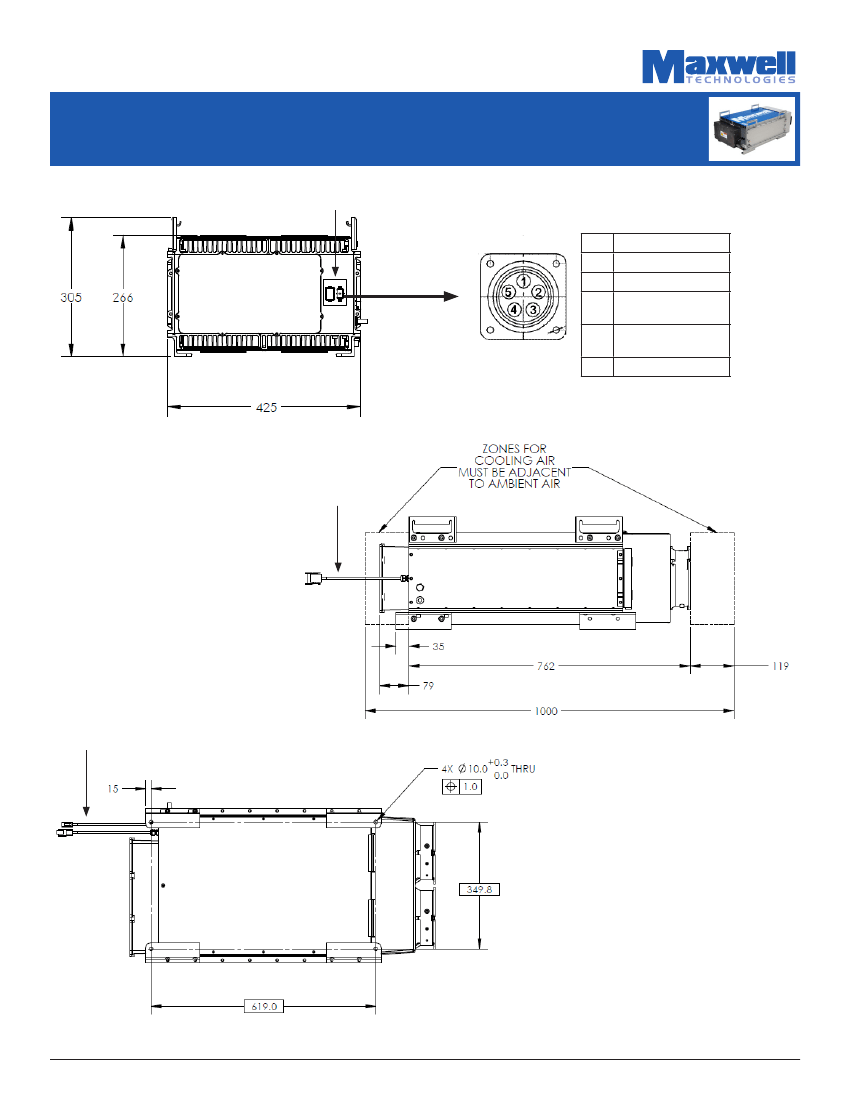

DIMENSIONS (mm)
Bx4 Modules only
B33 Module only
Pin
1
2
3
4
5
Pin Assignment
Center Tap Voltage
Positive Tap Voltage
Temperature Sensor
Lead 1 or 2
Temperature Sensor
Lead 2 or 1
Negative Tap Voltage
Bx4 Modules only
Bx4 Modules only
Note: B33 does not have a fan
Product dimensions are for reference only unless otherwise identified. Product dimensions and specifications may change without notice.
Please contact Maxwell Technologies directly for any technical specifications critical to application.
Drawing no. 1014553
25 September 2009
Page 3 • Document number:
1014696.2
DATASHEET
®
HTM HEAVY TRANSPORTATION SERIES 125 V MODULE
BMOD0063 P125 B14/B24/B04
BMOD0063 P125 B33
INCLUDED IN BMOD0063 P125
2 Power connectors:
•
Mounting adapters with isolation and mating lug connectors
•
Adapters for normal or perpendicular mounting of power cables (AWG 1/0)
1 CAN bus serial communications connector, male, Deutsch DTM04-08PA with WM-8D and 0462-201-20141 (B04/B14/B24)
1 CAN bus serial communications connector, female, Deutsch DTM06-08SA with WM-8S and 0460-201-20141 (B04/B14/B24)
1 ANALOG, 5 pin connecter (B33)
MOUNTING RECOMMENDATIONS
The module should be mounted to a strong chassis surface with four M8 screws of appropriate length for the application. The
mounting screws should have a mechanical locking method that is appropriate for the vibration levels. To provide the best possible
EMI protection, the mounting surface should be electrically grounded. Do not reverse polarize.
The use of alternate module mounting orientations or custom feet other than those provided by Maxwell Technologies will result
in voiding the warranty unless such uses have been disclosed to Maxwell and approved by Maxwell by express written consent
prior to implementation.
MARKINGS
Modules are marked with the following information:
Rated capacitance, rated voltage, product number, name of manufacturer,
positive and negative terminal, warning marking, serial number.
