1200840007

Description
ultra-lock (m12) 4 pole, front panel mount receptacle, 1/2"-14 npt mounting thread, 22
File Size145KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

1200840007 Overview

ultra-lock (m12) 4 pole, front panel mount receptacle, 1/2"-14 npt mounting thread, 22

Preview

Download Datasheet

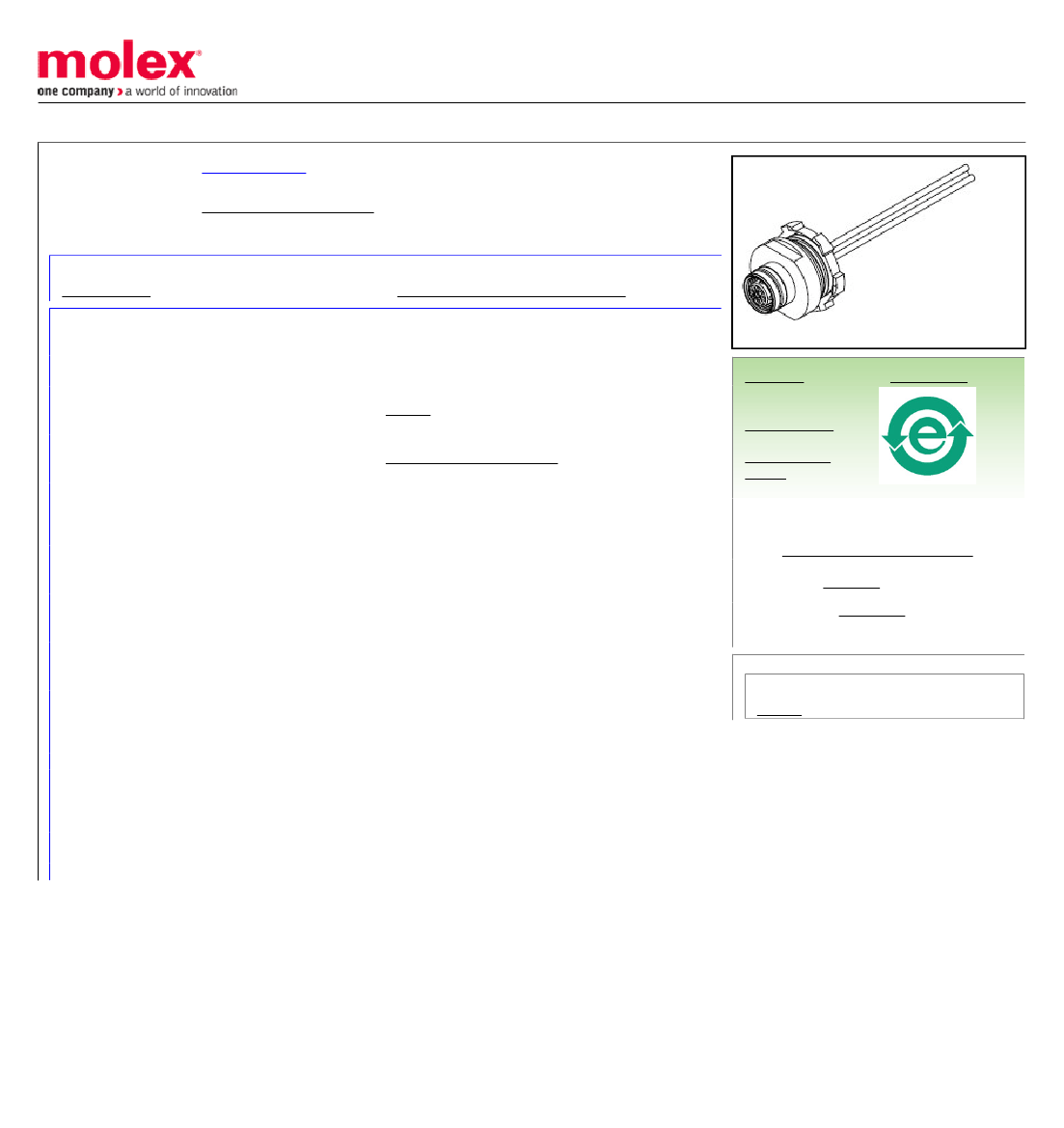

This document was generated on 05/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
1200840016
Active
ultralock_connection_system
Ultra-Lock® (M12) 5 Pole, Front Panel Mount Receptacle, 1/2"-14 NPT Mounting
Thread, 22 AWG PVC Leads, 0.30M (11.81")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR6837
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
General
Product Family
Series
IP Rating
NEMA Rating
Overview
Product Name
Type
Industrial Receptacles
120084
IP69K
NEMA 6
ultralock_connection_system
Ultra-Lock® (M12)
Single Ended (pigtail)
Physical
Coupling Type
Gender
Keyway
Length
Material - Component
Mounting Thread Size
Orientation
Panel Mount
Poles
Temperature Range - Operating
Wire Size AWG
Wire/Cable Type
Internal Thread
Female
Single
0.30m (11.81")
Nickel-plated Brass
1/2" - 14 NPT
Straight
Front
5
-25°C to +90°C
22
UL 1061
Search Parts in this Series
120084Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V AC/DC
Material Info
Old Part Number
WR5000A18C300

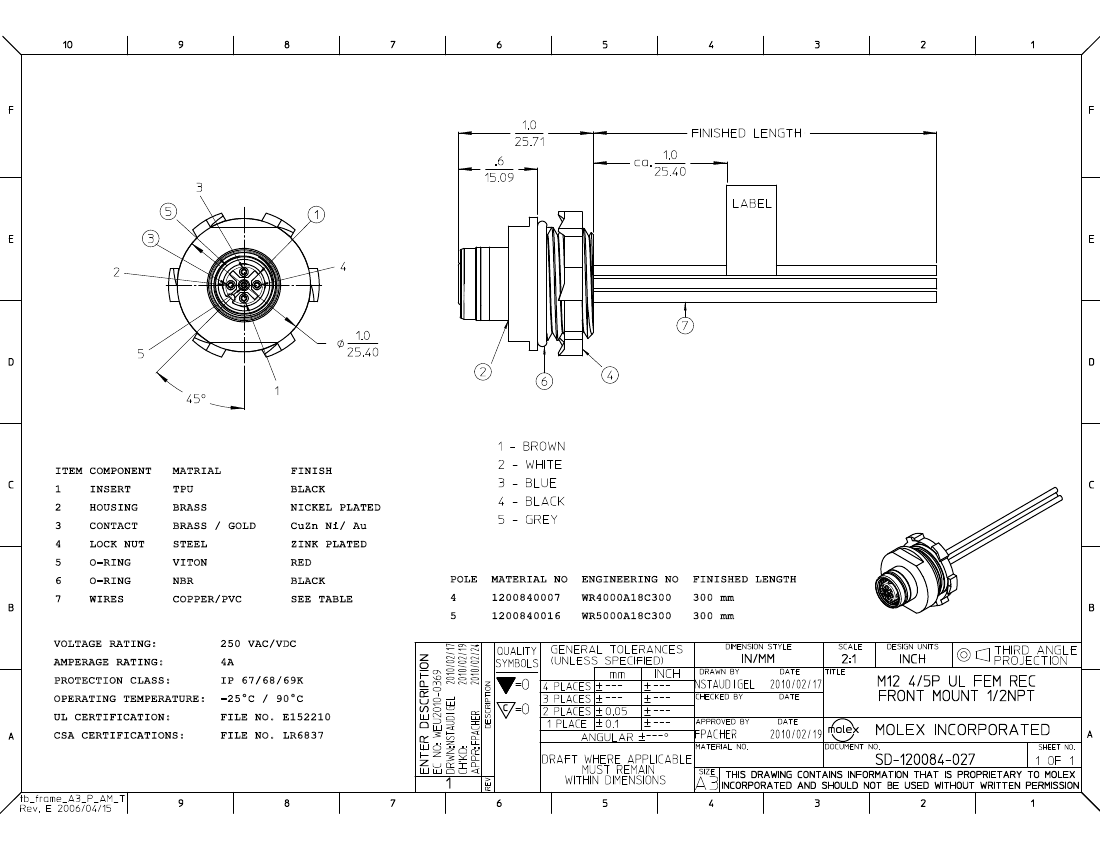

Reference - Drawing Numbers
Sales Drawing
SD-120084-027
This document was generated on 05/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
