42474-1821 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42474-1821

42474-1821: Description4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 18 circuits; CategoryThe connector The connector; File Size344KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

42474-1821 Overview

4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 18 circuits

42474-1821 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	BMI; MINI-FIT, POLARIZATION AVAILABLE
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	42474
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE66
Termination type	CRIMP
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015060041

Active

minifit_bmi

4.20mm (.165") Pitch Mini-Fit BMI™ Receptacle Housing, Dual Row with Panel Mount

Ears, PA Polyamide Nylon 6/6, UL 94V-0, 4 Circuits

Documents:

3D Model

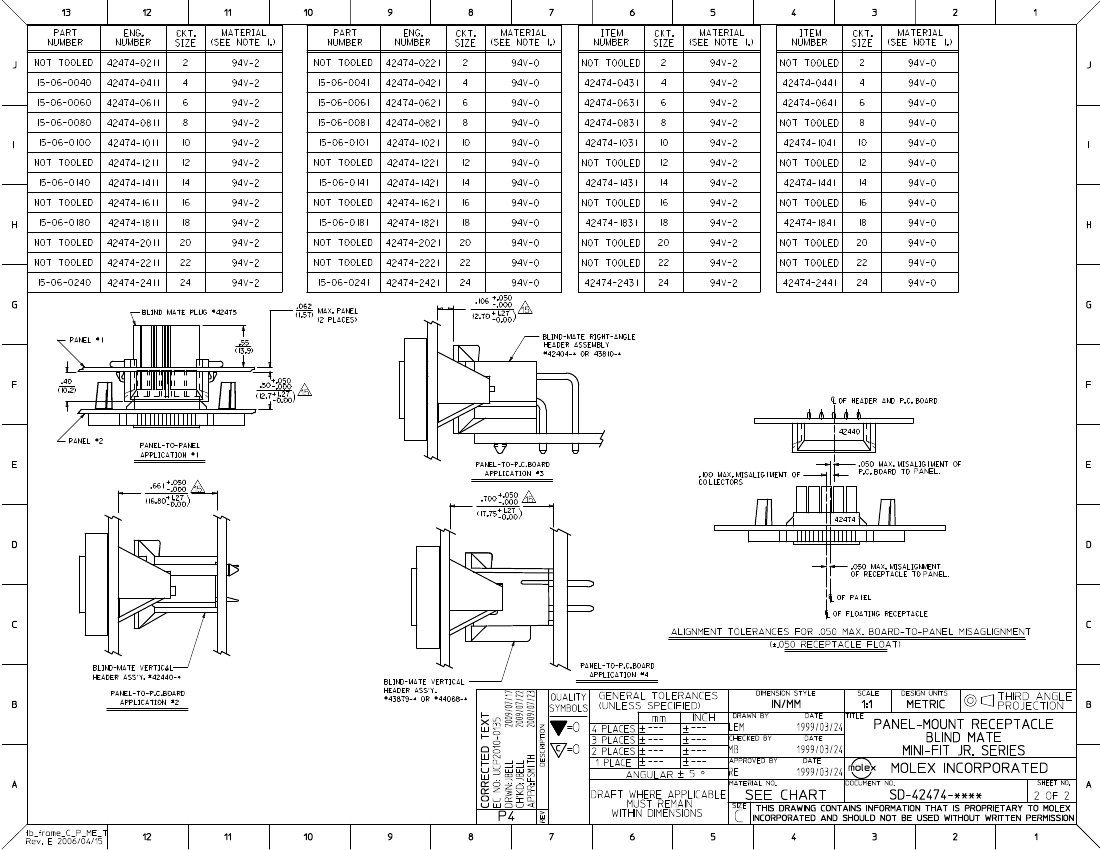

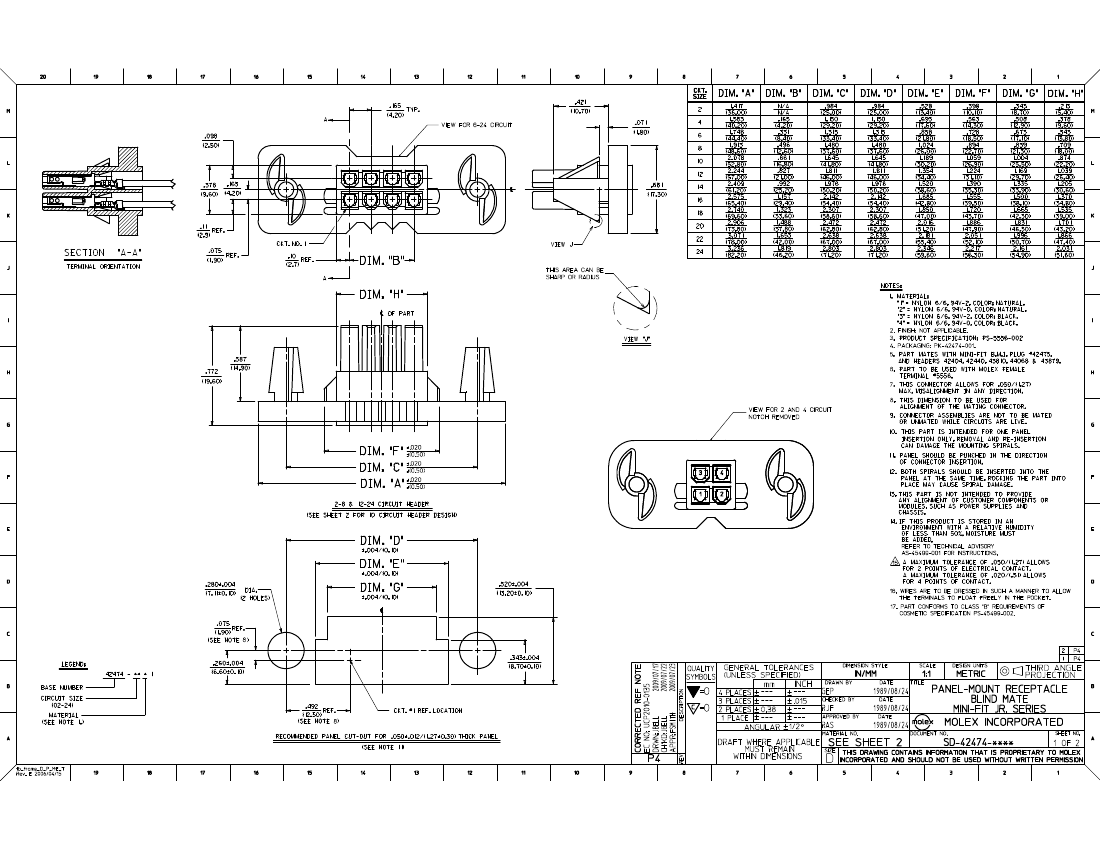

Drawing (PDF)

Product Specification PS-5556-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Comments

Crimp Housings

42474

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.

minifit_bmi

Mini-Fit BMI™

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural (White)

94V-0, 94V-2

Female

None

Nylon

Bag

Yes

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

42474Series

Mates With

42475 Mini-Fit BMI™ Plug Housing. 43879

MiniFit CPI™ Header. Mini-Fit BMI™

Header 42404 , 42440. Mini-Fit SMC™

Surface Mount Compatible Header 43810 ,

44068

Use With

5556 Mini-Fit™ Crimp Terminal

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

42474-0421

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-42474-001

PS-5556-002

SD-42474-****

TS-5556-002

42474-1821 Related Products

	42474-1821	42474-1421	42474-0421	42474-0621	42474-2421
Description	4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 18 circuits	4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 14 circuits	4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 4 circuits	4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 6 circuits	4.20mm (.165") pitch mini-fit bmi? receptacle housing, dual row with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 24 circuits
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow
Other features	BMI; MINI-FIT, POLARIZATION AVAILABLE	BMI; MINI-FIT, POLARIZATION AVAILABLE	BMI; MINI-FIT, POLARIZATION AVAILABLE	BMI; MINI-FIT, POLARIZATION AVAILABLE	BMI; MINI-FIT, POLARIZATION AVAILABLE
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	42474	42474	42474	42474	42474
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE66	POLYAMIDE66	POLYAMIDE66	POLYAMIDE66	POLYAMIDE66
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	18	14	4	6	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-	1
