bias design and a simple external matching network
to obtain minimum noise figure.
The MAALSS0042 is ideally suited for use where
low noise figure, high gain, high dynamic range and
low power consumption are required.
Typical
applications include receiver front ends in the Global
Positioning System (GPS) market, as well as
standard gain blocks, buffer amps, driver amps, and
IF amps in both fixed and portable systems.
M/A-COM’S MAALSS0042 is fabricated using a
mature 0.5-micron gate length GaAs process. The
process features full passivation for increased
performance reliability.
GND
GND
Pin Configuration
3,4,5
Pin No.
1
2
3
4
5
6
7
8
Pin Name
GND
RF IN
GND
GND
GND
RF OUT
GND
GND
Description
Ground
RF Input
Ground
Ground
Ground
RF Output, V
DD
Ground
Ground
Ordering Information
1,2
Part Number
MAALSS0042
MAALSS0042TR-3000
MAALSS0042SMB
Package
Bulk Packaging
3000 piece reel
Sample Test Board
3. Pins 1, 3, 4, 5, 7, and 8 must be RF and DC grounded (see
Recommended PCB Configuration).
4. Pin 2 is the RF input and must be connected to the simple
matching network shown in the Application Schematic.
5. Pin 6 is the RF output. V
DD
is also applied on Pin 6.
Absolute Maximum Ratings
6,7
Parameter
V
DD
Input Power
Channel Temperature
8
Operating Temperature
Storage Temperature
Absolute Maximum
+10 VDC
17 dBm
+150 °C
-40 °C to +85 °C
-65 °C to +150 °C
1. Reference Application Note M513 for reel size information.
2. Die quantity varies.
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. M/A-COM does not recommend sustained operation near
these survivability limits.
8. Typical thermal resistance (θjc) = +165 °C/W
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0042
Low Noise Amplifier
1.575 GHz
Electrical Specifications: T
A
= +25°C, V
DD
= +5 V, Z
0
= 50
Ω
Parameter
Gain
Noise Figure
Input VSWR
Output VSWR
Output P1dB
Input IP
3
Reverse Isolation
Bias Current
Test Conditions
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz
F = 1.575 GHz, P
IN
= -35 dBm
F = 1.575 GHz, P
IN
= -35 dBm
—
Units
dB
dB
Ratio
Ratio
dBm
dBm
dB
mA
Min.
25
-
-
-
-
-
-
15
Typ.
27
1.15
2.0:1
1.5:1
1
-14
48
20
Max.
29
1.4
-
-
-
-
-
25
Rev. V1

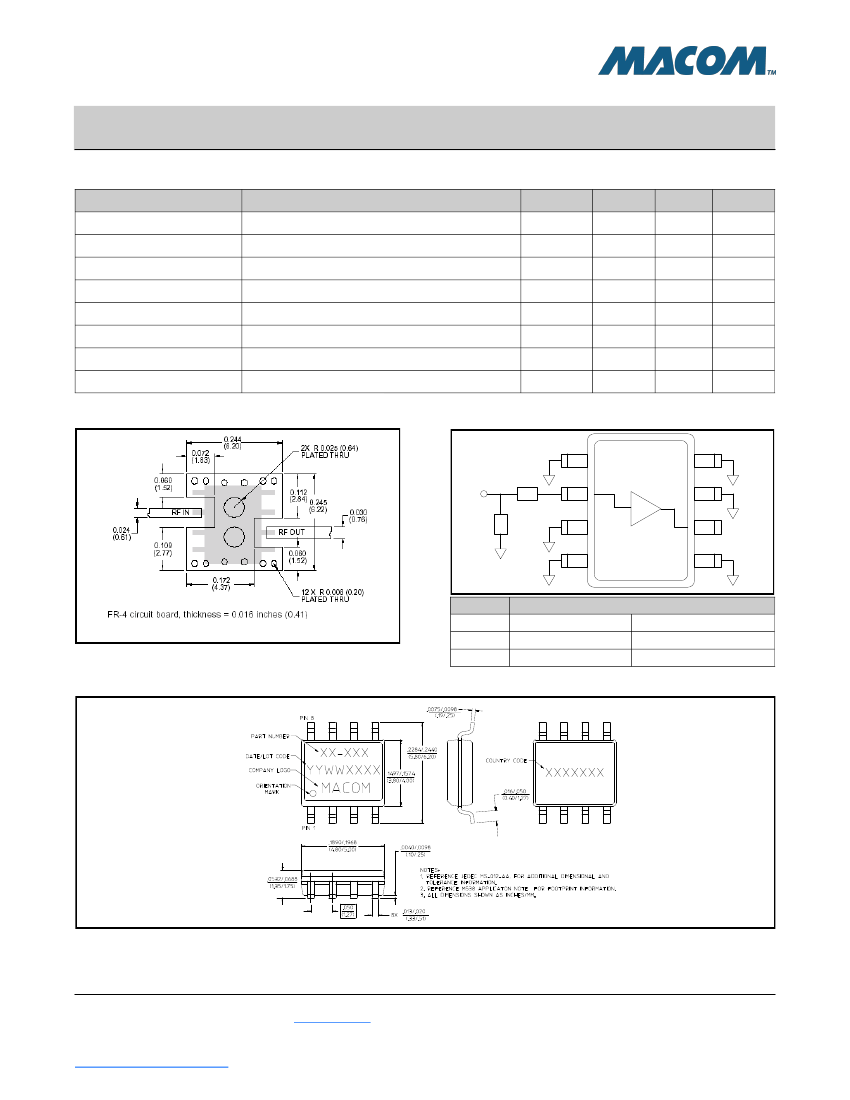

Recommended PCB Configuration
Application Schematic
GND
1
T1
RF IN
2
GND
T2
3
GND
4
6
GND
5
RF OUT, V
DD
GND
8
GND
7
Dimensions in inches (mm).
T1
T2
Frequency = 1.575 GHz
Impedance
Electrical Length
57.2
Ω
36.0°
82.7
Ω
16.2°
Lead-Free SOIC-8
†
† Reference Application Note M538 for lead-free solder reflow recommendations.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0042
Low Noise Amplifier
1.575 GHz

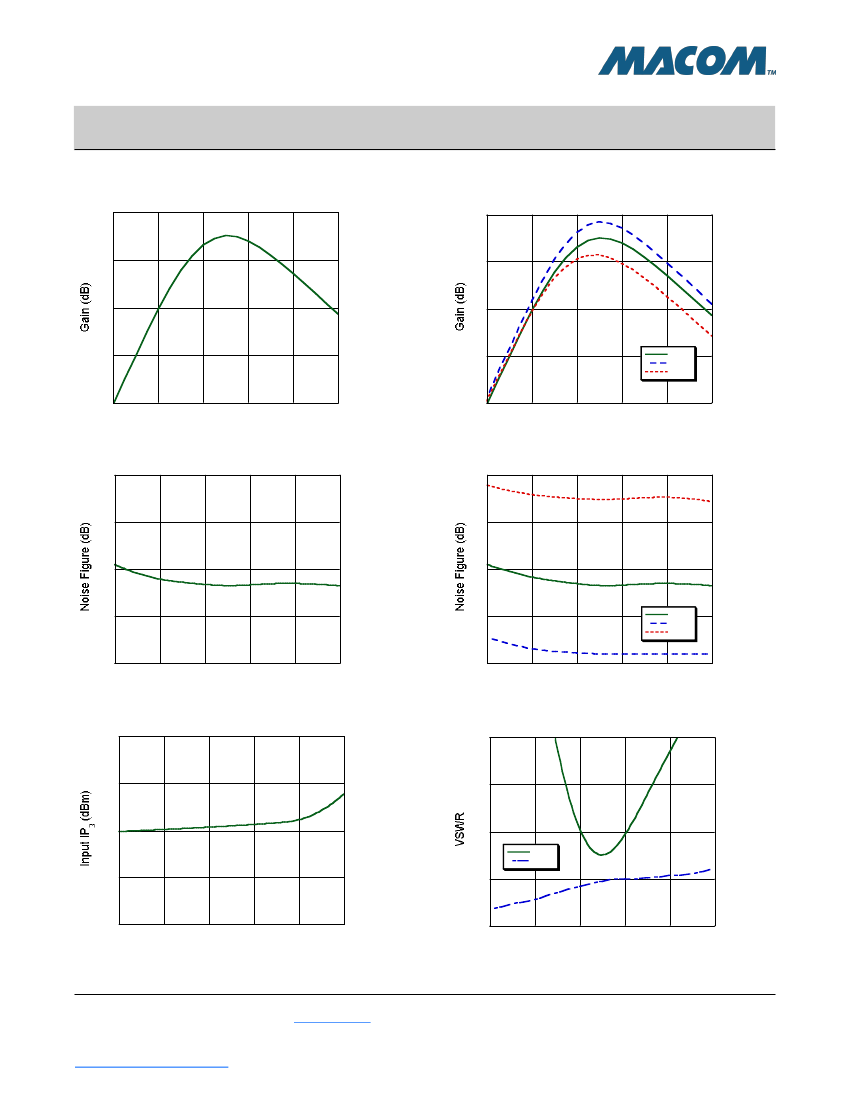

Typical Performance
Gain, T
A
= +25°C
28
Rev. V1
Gain over Temperature
28
26
26
24
24
22
22
+25°C
-40°C
+85°C
20
1.3
1.4
1.5
1.6
1.7
1.8
20
1.3
1.4
1.5
1.6
1.7
1.8
Frequency (GHz)
Frequency (GHz)
Noise Figure, T
A
= +25°C
1.6
Noise Figure over Temperature
1.6
1.4
1.4
1.2
1.2
1.0
1.0
+25°C
-40°C
+85°C
0.8
1.50
1.52
1.54
1.56
1.58
1.60
0.8
1.50
1.52
1.54
1.56
1.58
1.60
Frequency (GHz)
Frequency (GHz)
Input IP
3
, T
A
= +25°C
-12
VSWR, T
A
= +25°C
3.0
-13
2.5
-14
2.0
Input
Output
-15
1.5
-16
1.50
1.52
1.54
1.56
1.58
1.60
1.0
1.3
1.4
1.5
1.6
1.7
1.8
Frequency (GHz)
3
Frequency (GHz)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAALSS0042
Low Noise Amplifier
1.575 GHz
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
