5013300300: Description1.00mm (.039") pitch pico-clasp wire-to-board female housing, single row, with friction lock, 3 circuits; CategoryThe connector The connector; File Size78KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

5013300300 Overview

1.00mm (.039") pitch pico-clasp wire-to-board female housing, single row, with friction lock, 3 circuits

5013300300 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

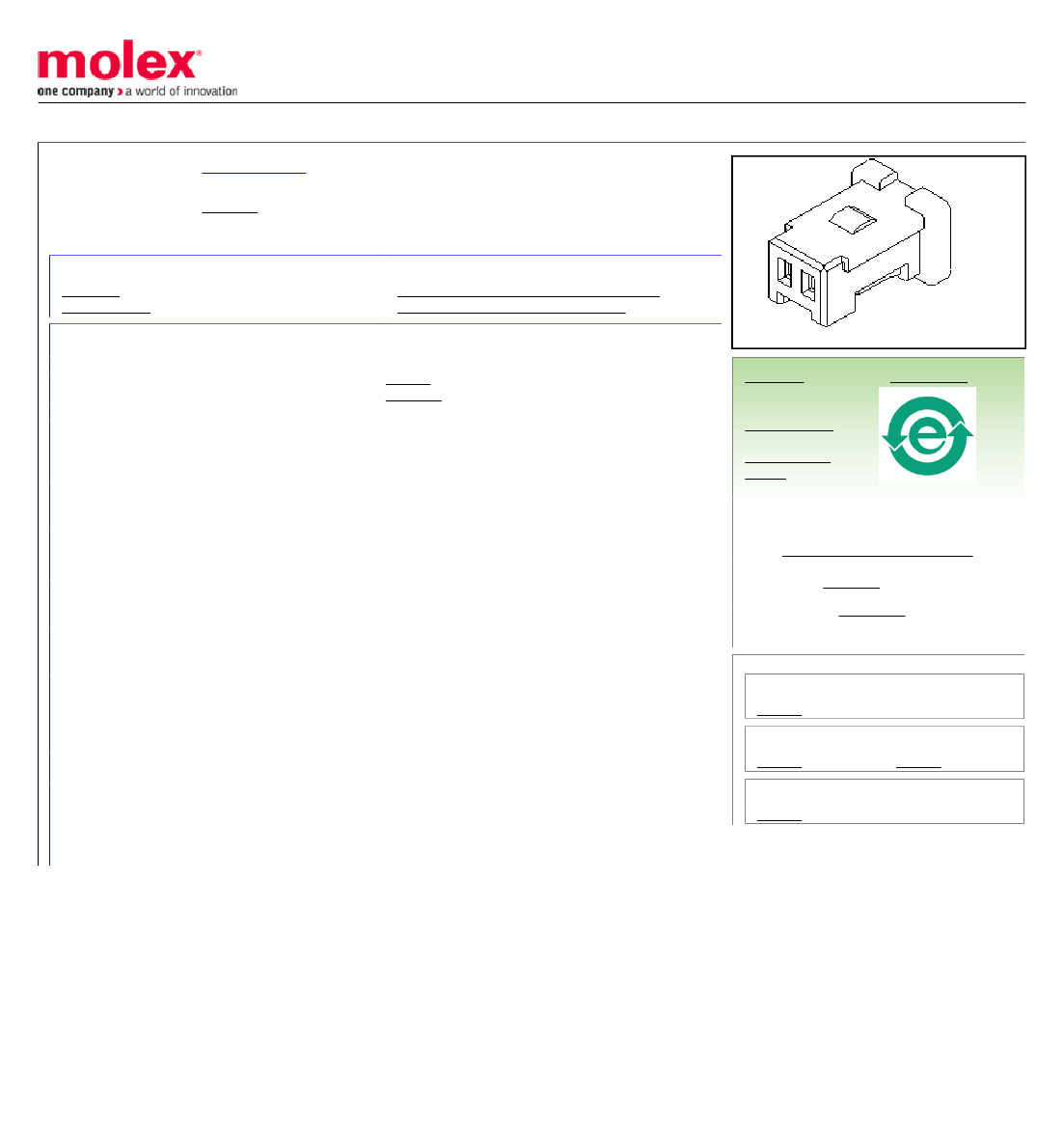

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5013300500

Active

picoclasp

1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with

Friction Lock, 5 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501331-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Crimp Housings

501330

picoclasp

Pico-Clasp™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Overview

Product Name

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

White

Female

Yes

Nylon

Bag

0.039 In

1.00 mm

Yes

-40°C to +85°C

Electrical

Current - Maximum per Contact

Search Parts in this Series

501330Series

Mates With

501331 PCB Hearder . 501568 PCB Header

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

SPK-501330-001

PS-501331-001, RPS-501331-001, RPS-501331-002,

RPS-501331-003, RPS-501331-006, RPS-501331-007,

RPS-501568-002

SD-501330-001

Use With

501334 Crimp Terminal

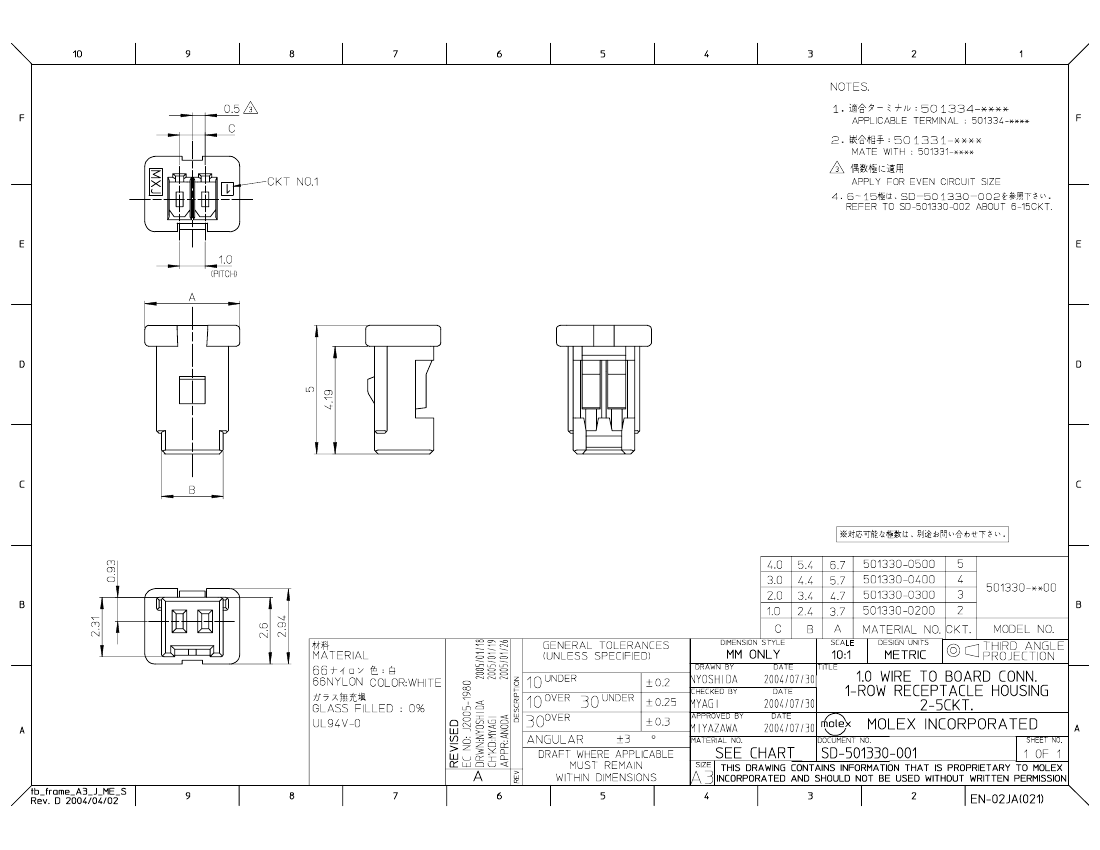

Sales Drawing

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
