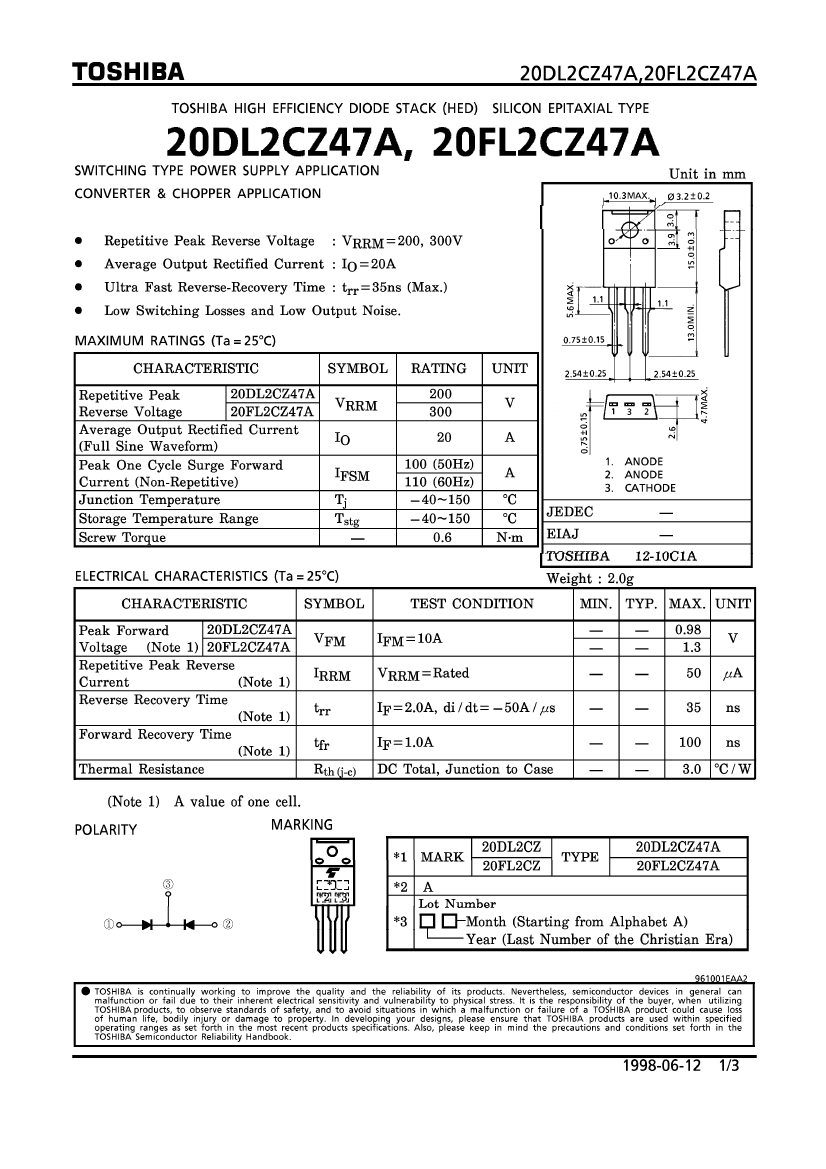

20DL2CZ47A datasheet, PDF - EEWORLD Datasheet

20DL2CZ47A: Descriptiondiode (switching type power supply application); CategoryDiscrete semiconductor diode; File Size179KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

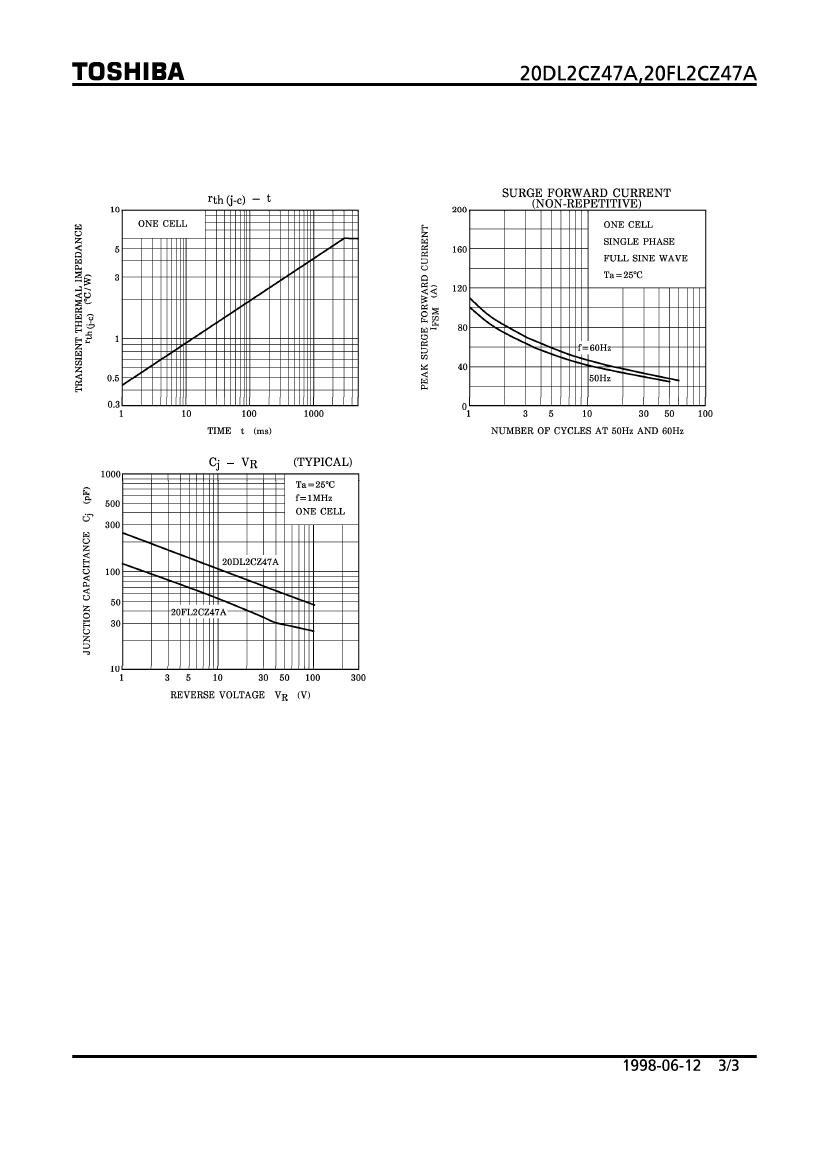

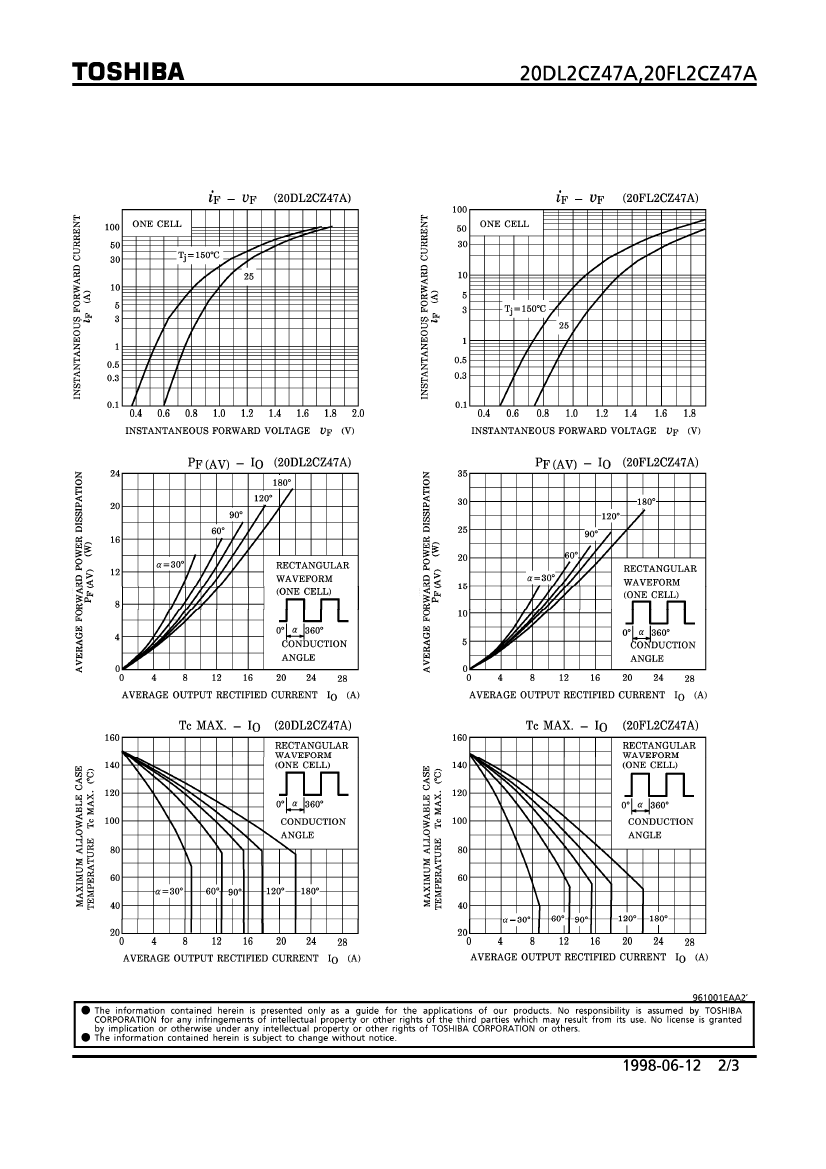

20DL2CZ47A Overview

diode (switching type power supply application)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	110 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	20DL2CZ47A	20FL2CZ47A
Description	diode (switching type power supply application)	diode (switching type power supply application)
Is it Rohs certified?	incompatible	incompatible
package instruction	R-PSFM-T3	R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE
application	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V	1.3 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	110 A	110 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	300 V
Maximum reverse recovery time	0.035 µs	0.035 µs
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
