353000650: Description2.50mm (.098") pitch wire-to-board KK; File Size181KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

353000650 Overview

2.50mm (.098") pitch wire-to-board KK

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0353000650

Active

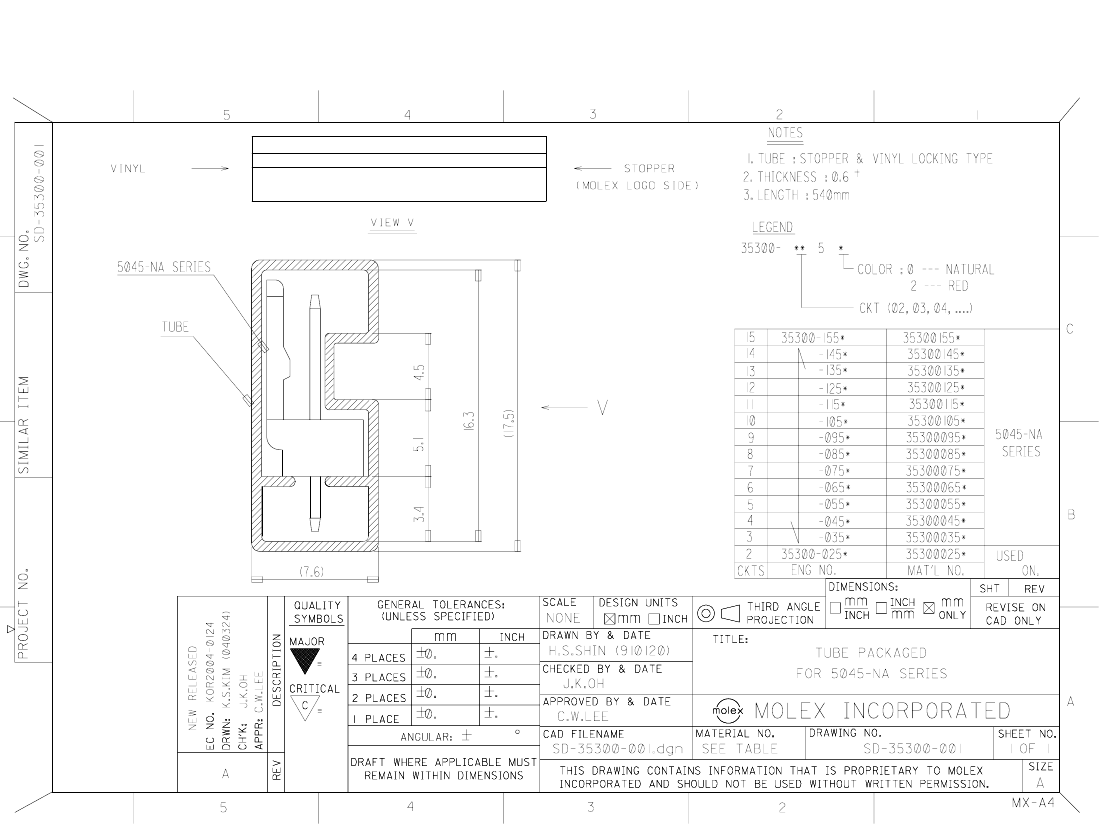

2.50mm (.098") Pitch Wire-to-Board KK® Header, Vertical, with Friction Ramp, Tube

Packaged Version of 5045, 6 Circuits, Tin (Sn) Plating

Documents:

3D Model

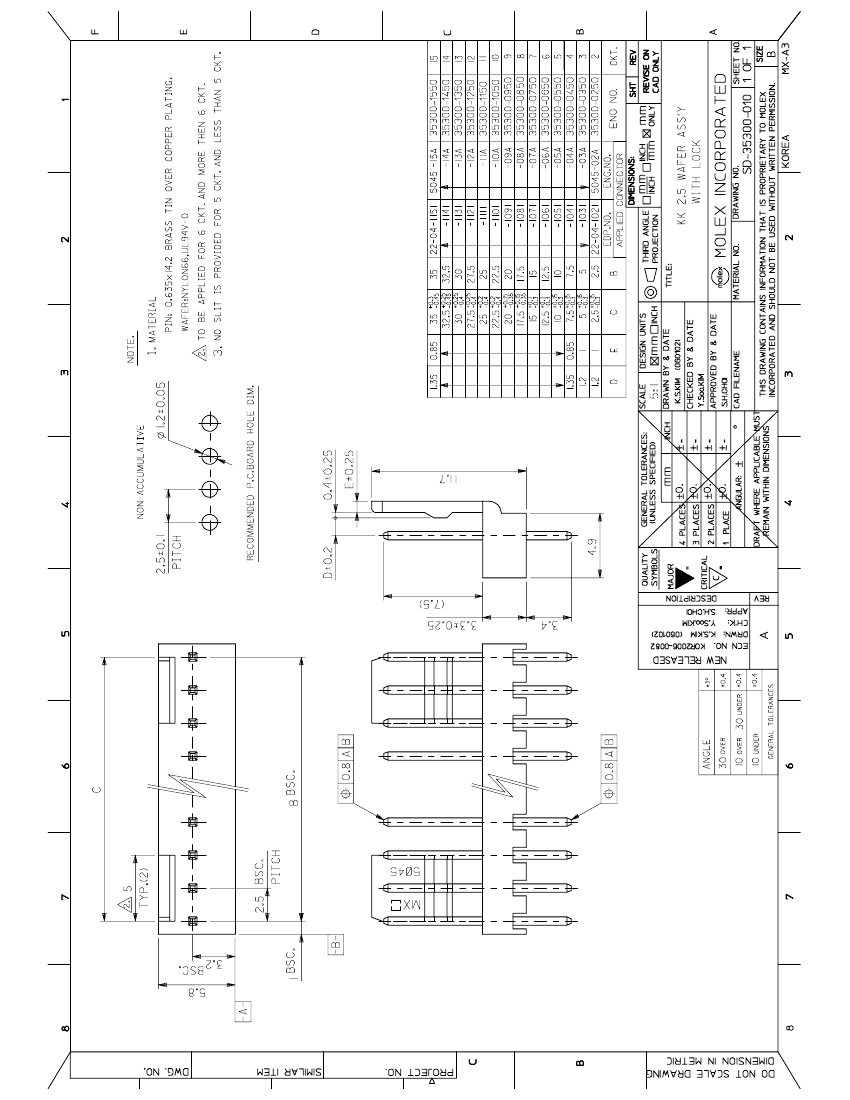

Drawing (PDF)

Product Specification PS-35300-001 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

LR 19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Series

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

35300

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Tin

Nylon

Vertical

None

0.062 In

1.60 mm

Tube

0.098 In

2.50 mm

200

-40°C to +105°C

Through Hole

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

35300Series

Mates With

5051 Housing, 51191 Housing
