TC55257DTRL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > TC55257DTRL

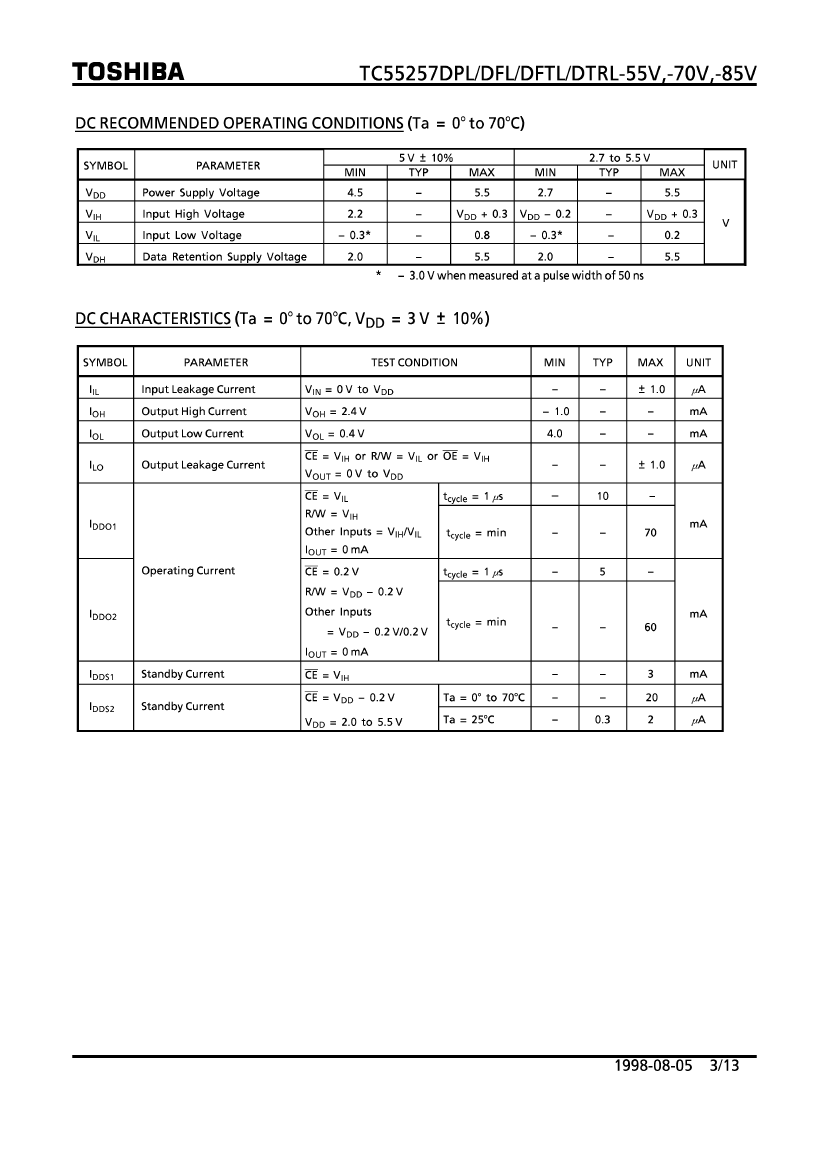

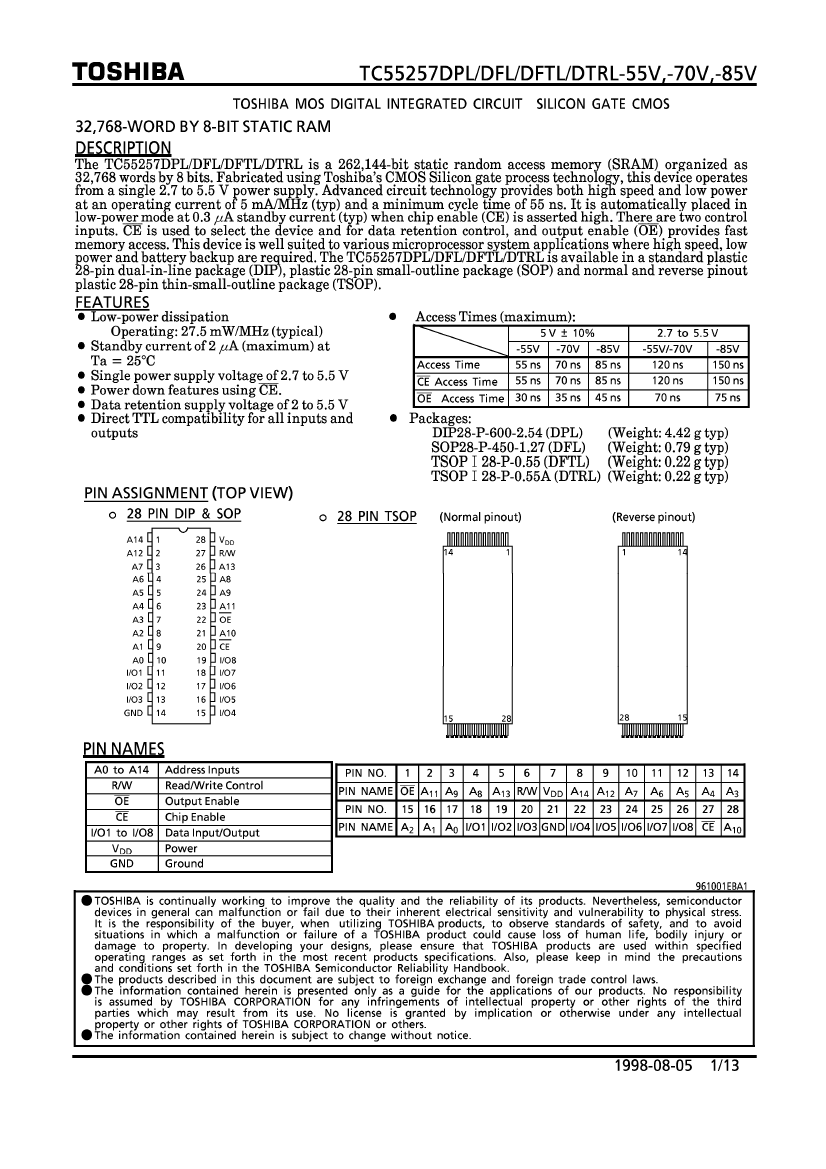

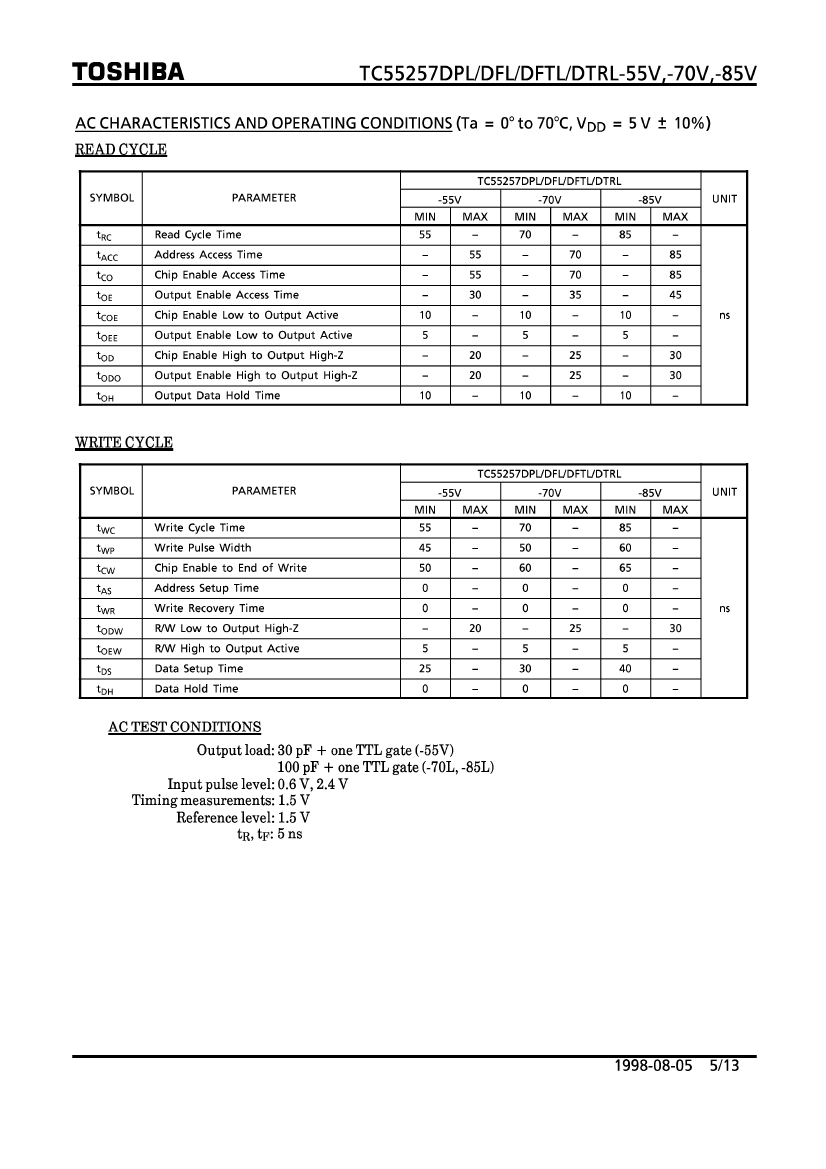

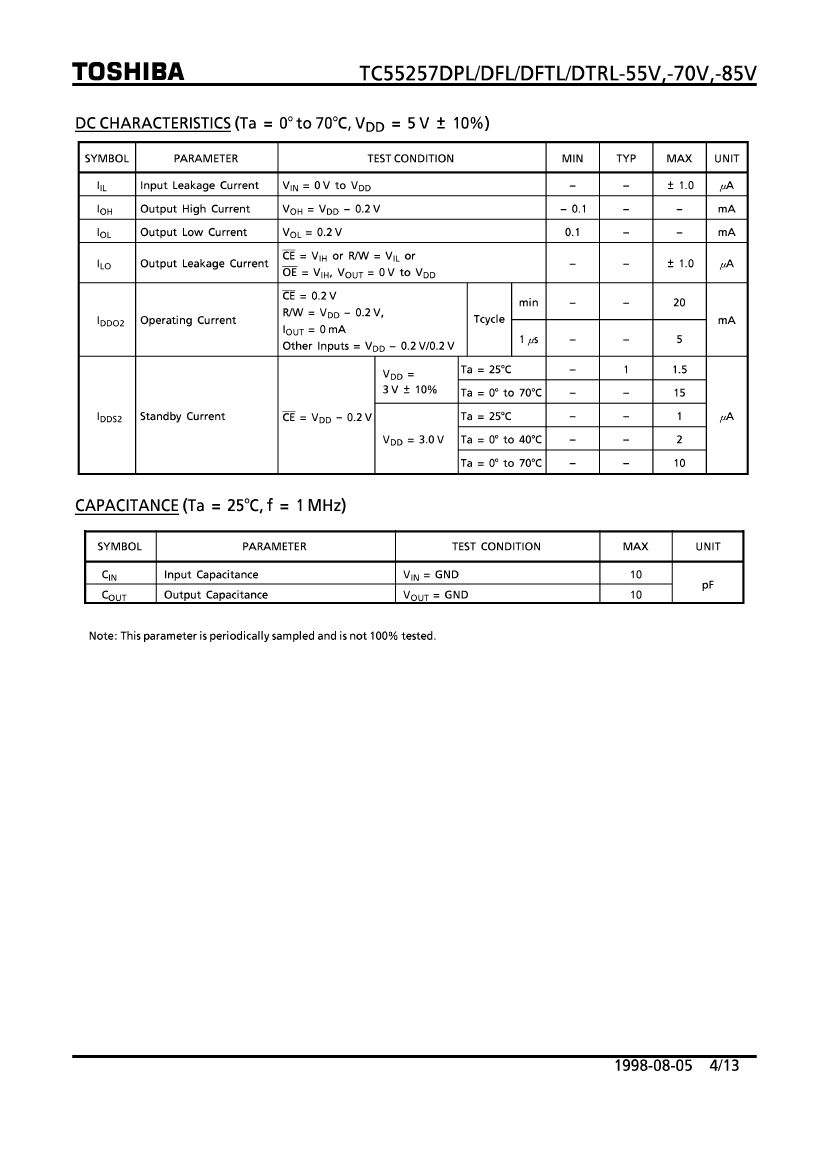

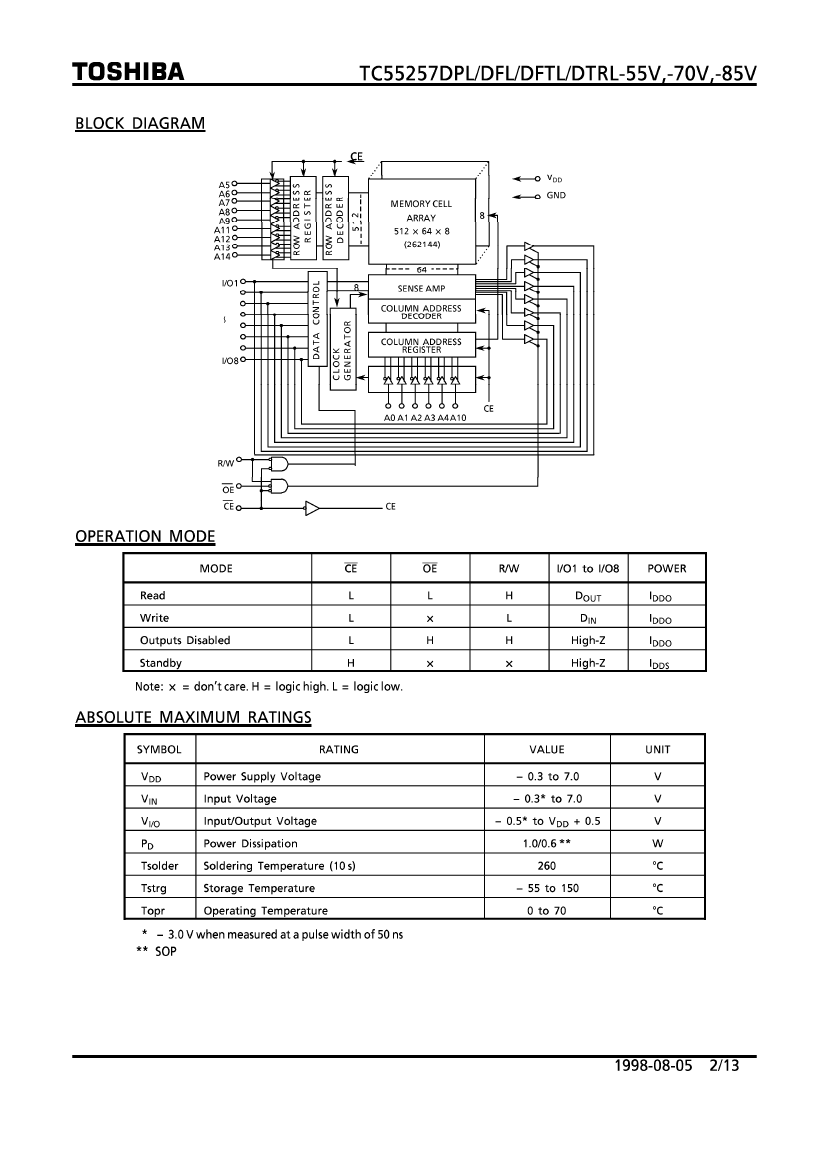

Preview

TC55257DTRL: Description32,768 word-8 bit static ram; File Size499KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TC55257DTRL Overview

32,768 word-8 bit static ram

Preview

Download Datasheet

View All

TC55257DTRL Related Products

	TC55257DTRL	TC55257DPL-70L	TC55257DTRL-70L	TC55257DTRL-85L	TC55257DFL	TC55257DPL-55L	TC55257DPL-85L	TC55257DTRL-55L	TC55257DFL-55L	TC55257DFTL-55L
Description	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram	32,768 word-8 bit static ram
Parts packaging code	-	DIP	TSOP	TSOP	-	DIP	DIP	TSOP	SOIC	TSOP
package instruction	-	DIP, DIP28,.6	TSOP1-R, TSSOP28,.53,22	TSOP1-R, TSSOP28,.53,22	-	0.600 INCH, 2.54 MM PITCH, PLASTIC, DIP-28	DIP, DIP28,.6	TSOP1-R, TSSOP28,.53,22	SOP, SOP28,.5	TSOP1, TSSOP28,.53,22
Contacts	-	28	28	28	-	28	28	28	28	28
Reach Compliance Code	-	unknow	unknow	unknow	-	unknow	unknown	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
Maximum access time	-	70 ns	70 ns	85 ns	-	55 ns	85 ns	55 ns	55 ns	55 ns
I/O type	-	COMMON	COMMON	COMMON	-	-	COMMON	COMMON	COMMON	COMMON
JESD-30 code	-	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	-	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
length	-	37 mm	11.8 mm	11.8 mm	-	37 mm	37 mm	11.8 mm	18.5 mm	11.8 mm
memory density	-	262144 bi	262144 bi	262144 bi	-	262144 bi	262144 bit	262144 bi	262144 bi	262144 bi
Memory IC Type	-	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	-	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	-	8	8	8	-	8	8	8	8	8
Number of functions	-	1	1	1	-	1	1	1	1	1
Number of ports	-	1	1	1	-	1	1	1	1	1
Number of terminals	-	28	28	28	-	28	28	28	28	28
word count	-	32768 words	32768 words	32768 words	-	32768 words	32768 words	32768 words	32768 words	32768 words
character code	-	32000	32000	32000	-	32000	32000	32000	32000	32000
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
organize	-	32KX8	32KX8	32KX8	-	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	-	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	-	YES	YES	YES	-	YES	YES	YES	YES	YES
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	TSOP1-R	TSOP1-R	-	DIP	DIP	TSOP1-R	SOP	TSOP1
Encapsulate equivalent code	-	DIP28,.6	TSSOP28,.53,22	TSSOP28,.53,22	-	-	DIP28,.6	TSSOP28,.53,22	SOP28,.5	TSSOP28,.53,22
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	-	IN-LINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	-	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	-	5 V	5 V	5 V	-	-	5 V	5 V	5 V	5 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	5.3 mm	1.2 mm	1.2 mm	-	5.3 mm	5.3 mm	1.2 mm	2.7 mm	1.2 mm
Maximum standby current	-	0.00001 A	0.00001 A	0.00001 A	-	-	0.00001 A	0.00001 A	0.00001 A	0.00001 A
Minimum standby current	-	2 V	2 V	2 V	-	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	-	0.07 mA	0.07 mA	0.07 mA	-	-	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	-	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	-	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	-	NO	YES	YES	-	NO	NO	YES	YES	YES
technology	-	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	-	THROUGH-HOLE	GULL WING	GULL WING	-	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	-	2.54 mm	0.55 mm	0.55 mm	-	2.54 mm	2.54 mm	0.55 mm	1.27 mm	0.55 mm
Terminal location	-	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
width	-	15.24 mm	8 mm	8 mm	-	15.24 mm	15.24 mm	8 mm	8.8 mm	8 mm
Base Number Matches	-	-	1	1	-	-	1	1	1	1
