36633-0024 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36633-0024

36633-0024: Description4.20mm (.165") mini-fit Jr.? header, right angle, nylon, without mounting flange, 20 circuits; CategoryThe connector The connector; File Size247KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

36633-0024 Overview

4.20mm (.165") mini-fit Jr.? header, right angle, nylon, without mounting flange, 20 circuits

36633-0024 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87427
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

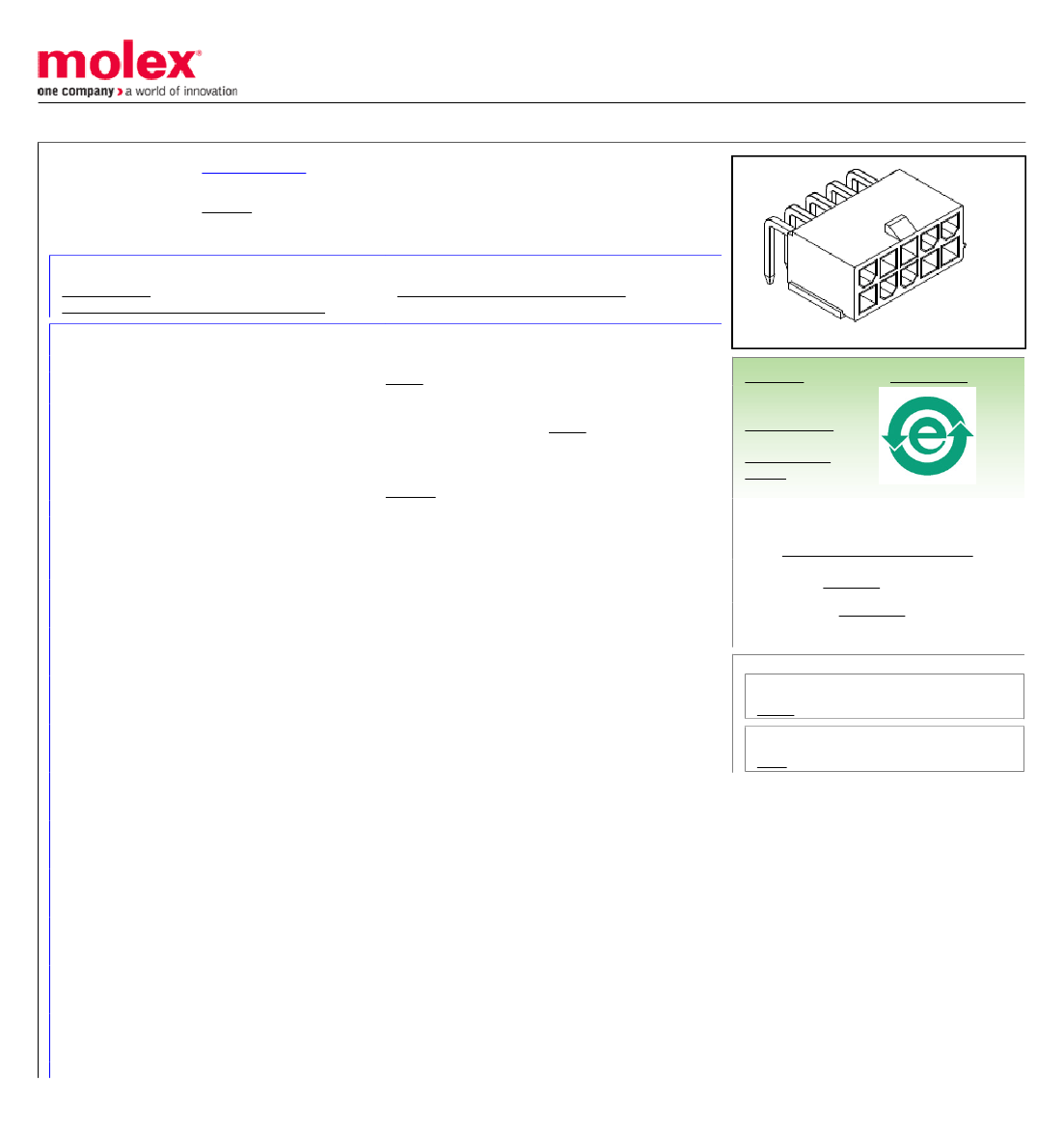

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0366330020

Active

minifit_jr

4.20mm (.165") Mini-Fit Jr.™ Header, Right Angle, Nylon, without Mounting Flange, 4

Circuits, Tin (Sn) over Nickel (Ni) Plating, Lead free

Documents:

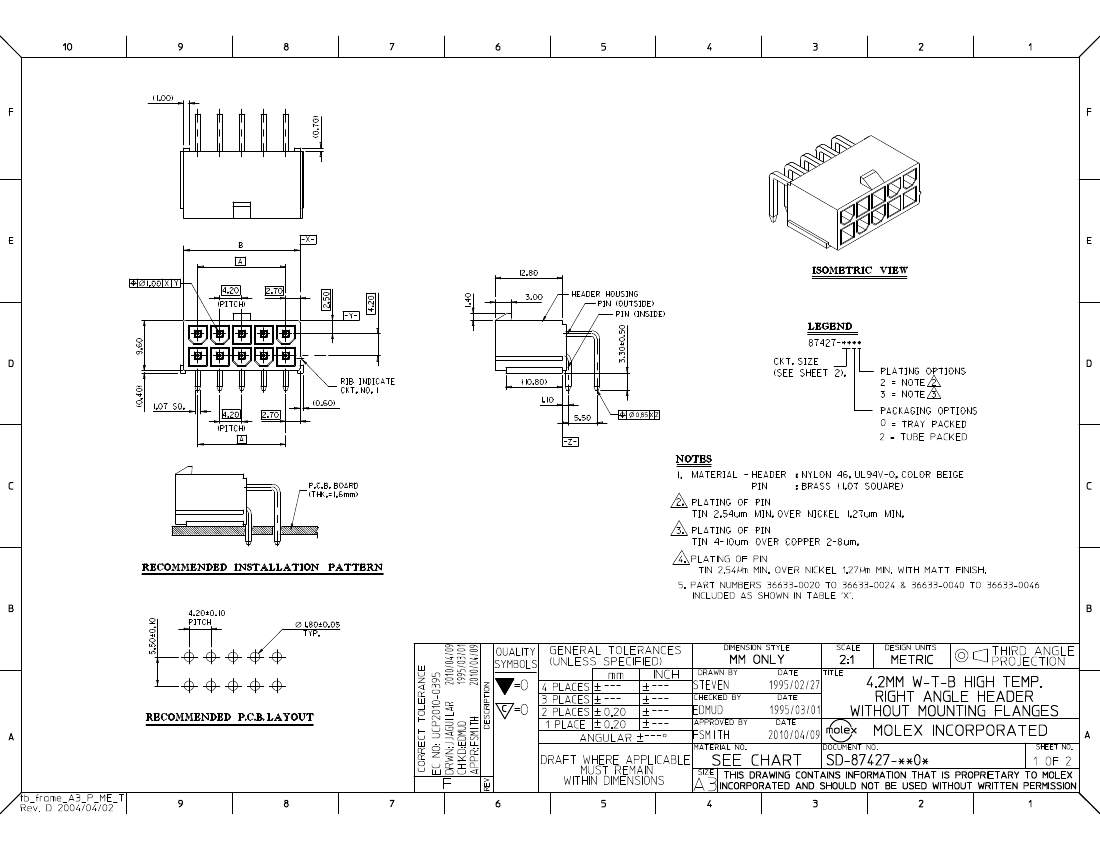

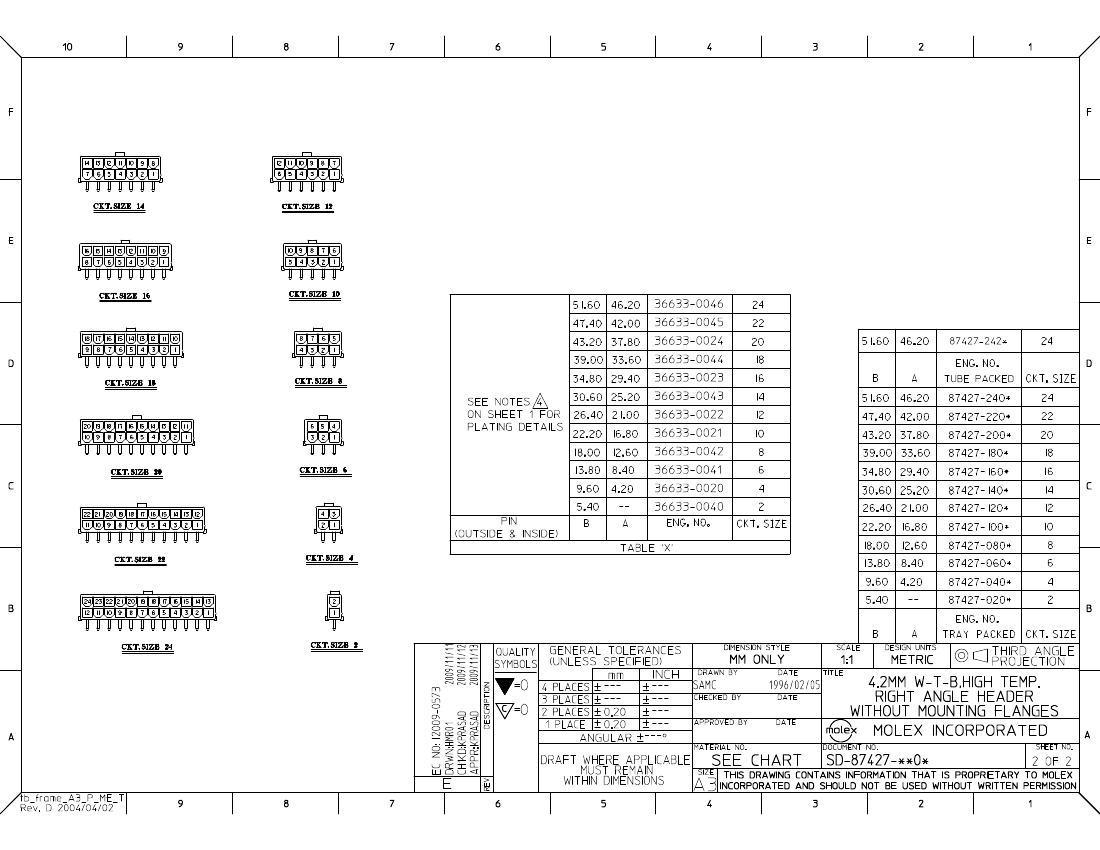

Drawing (PDF)

Product Specification PS-87427-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

PCB Headers

87427

Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex product specification PS-45750-001 for additional

current de-rating information.

minifit_jr

Mini-Fit Jr.™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Beige

Yes

Brass

Tin

Nylon

Right Angle

0.130 In

3.30 mm

None

0.062 In

1.60 mm

Tray

0.165 In

4.20 mm

0.165 In

4.20 mm

100

2.54

100

2.54

Yes

Fully

-40°C to +105°C

Search Parts in this Series

87427Series

Mates With

5557 Mini-Fit Jr.™ Receptacle Housing

36633-0024 Related Products

	36633-0024	36633-0022
Description	4.20mm (.165") mini-fit Jr.? header, right angle, nylon, without mounting flange, 20 circuits	4.20mm (.165") mini-fit Jr.? header, right angle, nylon, without mounting flange, 12 circuits
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	87427	87427
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER
Total number of contacts	20	12
Base Number Matches	1	1
