973504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 973504

973504: Description10.16mm (.400") beau? eurostyle? fixed mount pcb terminal block, high power 40a, 4 circuits; CategoryThe connector; File Size208KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

973504 Overview

10.16mm (.400") beau? eurostyle? fixed mount pcb terminal block, high power 40a, 4 circuits

973504 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLYAMIDE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	39970
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	4
Rated current	40 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	6 mm2
Wire gauge	8 AWG

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399700304

Active

10.16mm (.400") Beau™ Eurostyle™ Fixed Mount PCB Terminal Block, High Power

40A, 4 Circuits

Documents:

3D Model

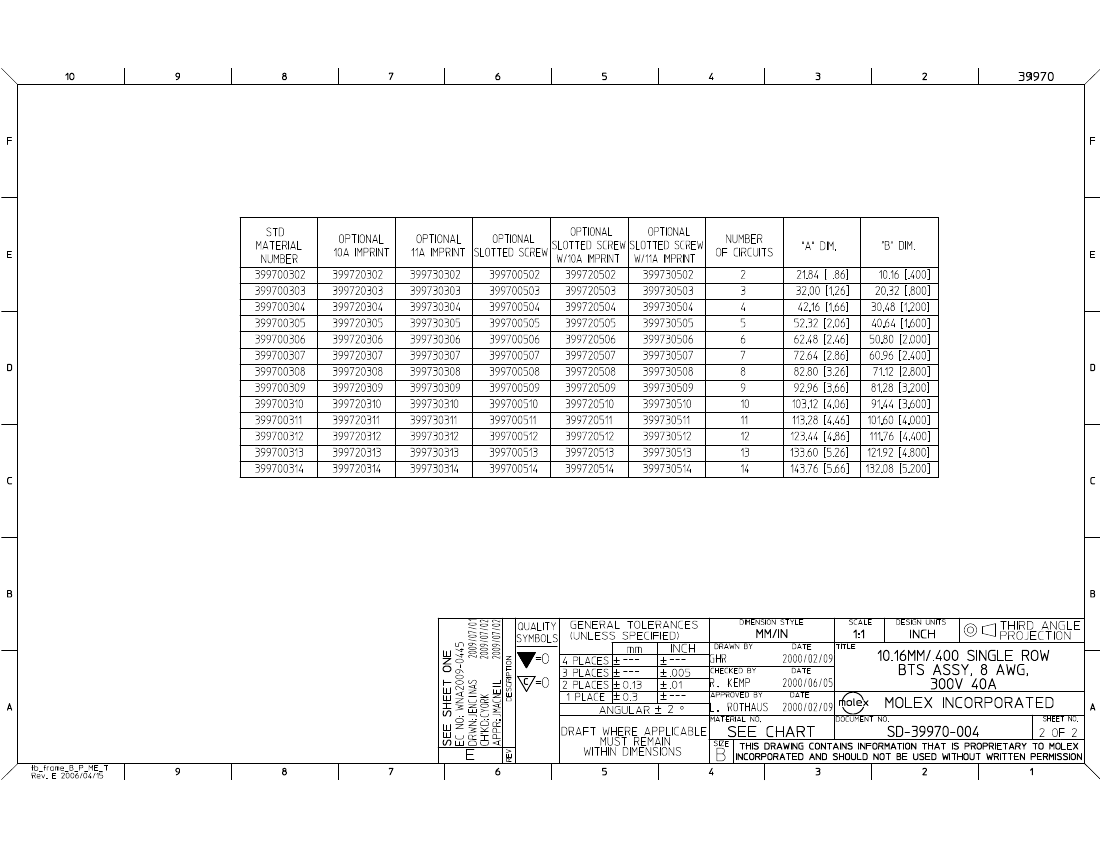

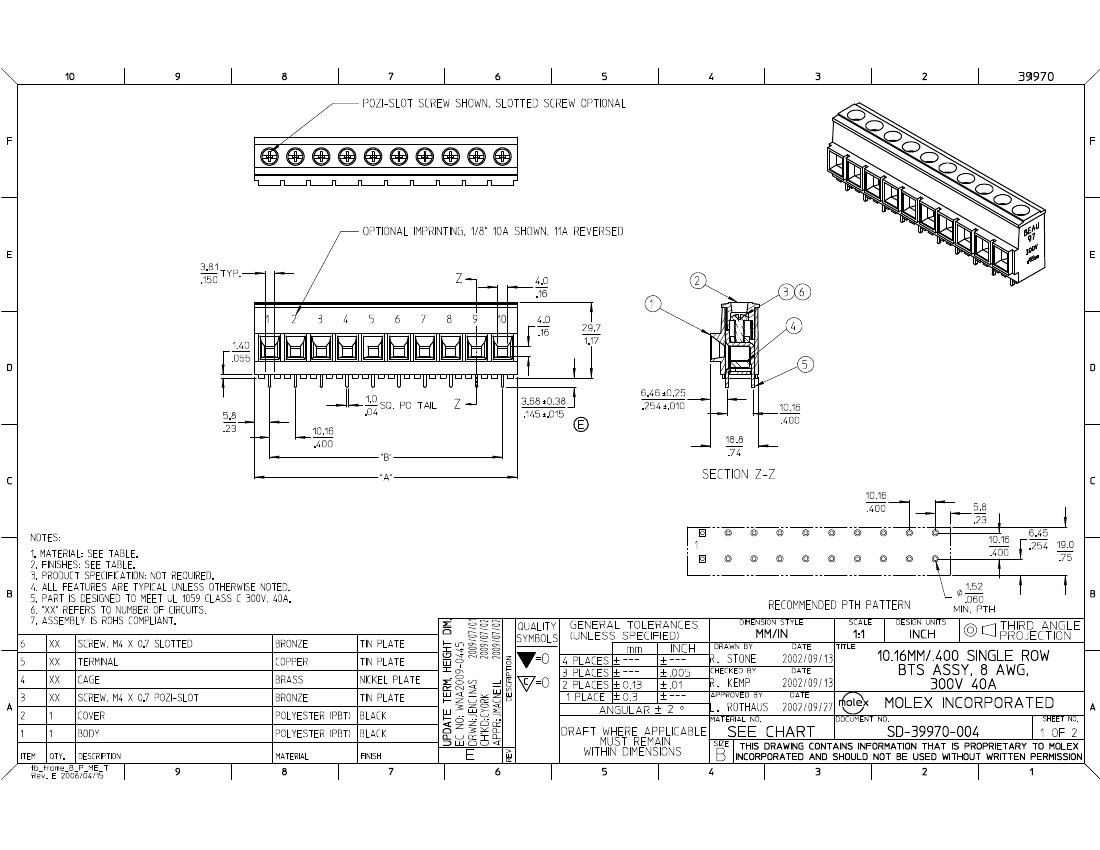

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Name

Type

Terminal Blocks

39970

Wire-to-Board

One Piece

Eurostyle™Fixed Mount

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

94V-0

None

Copper

Tin

Polyester

Vertical

0.160 In

4.06 mm

None

0.400 In

10.16 mm

0.400 In

10.16 mm

150

3.8

150

3.8

N/A

Fully

130°C

Through Hole

10, 12, 14, 16, 18, 6, 8

0.75 - 6.0

Search Parts in this Series

39970Series

Mates With

N/A

Electrical

Current - Maximum per Contact

40A

973504 Related Products

	973504	399700304
Description	10.16mm (.400") beau? eurostyle? fixed mount pcb terminal block, high power 40a, 4 circuits	10.16mm
Reach Compliance Code	unknow	compli
ECCN code	EAR99	EAR99
Other features	POLYAMIDE, 94V-0	THERMOPLASTIC
Fastening method	SCREW	SCREW
Installation type	BOARD	BOARD
Number of layers	1	1
Rows	1	1
Number of channels	4	4
Rated current	40 A	40 A
Rated voltage	300 V	300 V
safety certificate	UL; CSA	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Wire gauge	8 AWG	8 AWG
