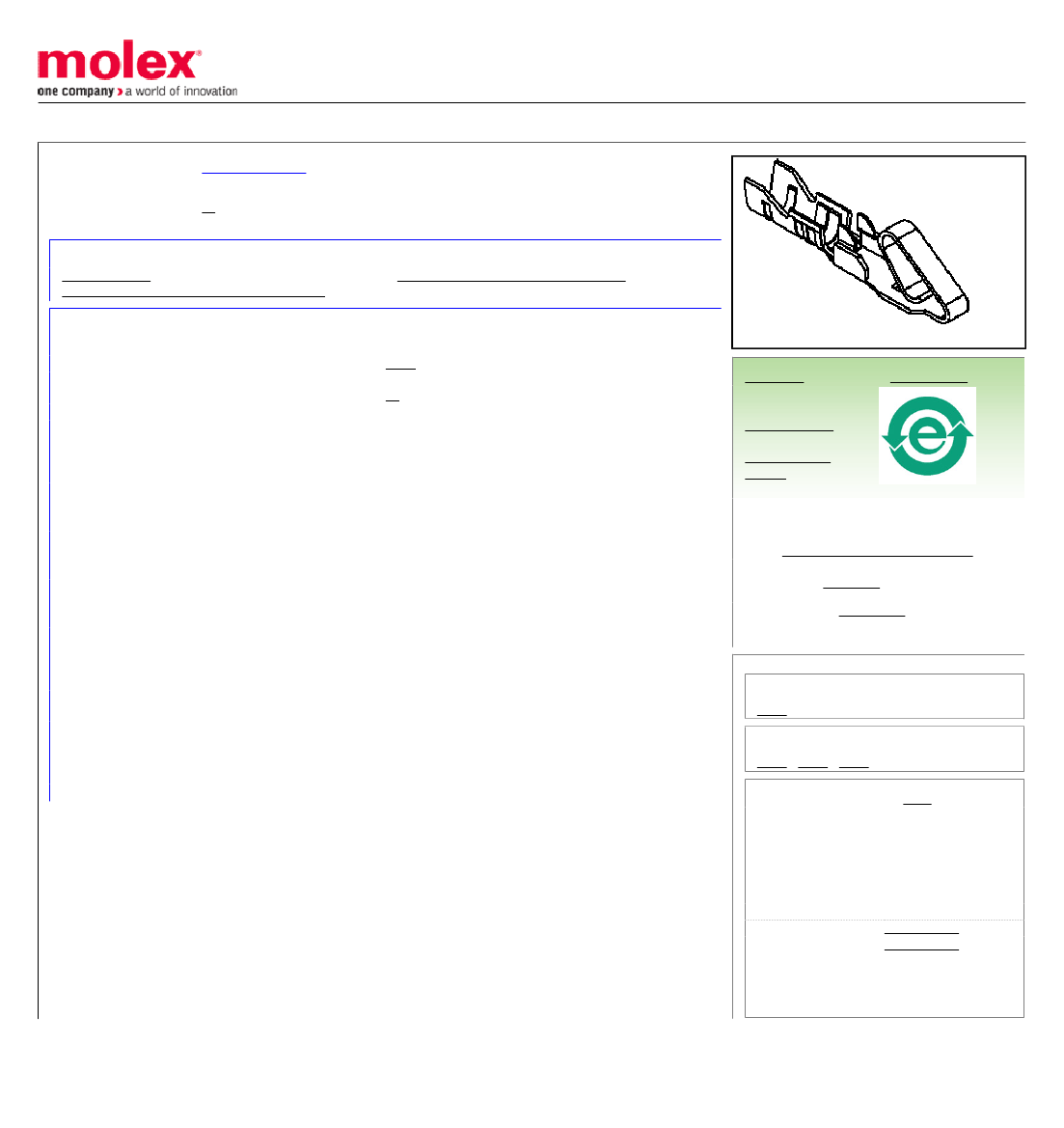

Part Number:
Status:
Overview:
Description:
0008520105
Active
kk
KK® Cat Ear Crimp Terminal 8088, 22-30 AWG, Tin, Reel
Documents:

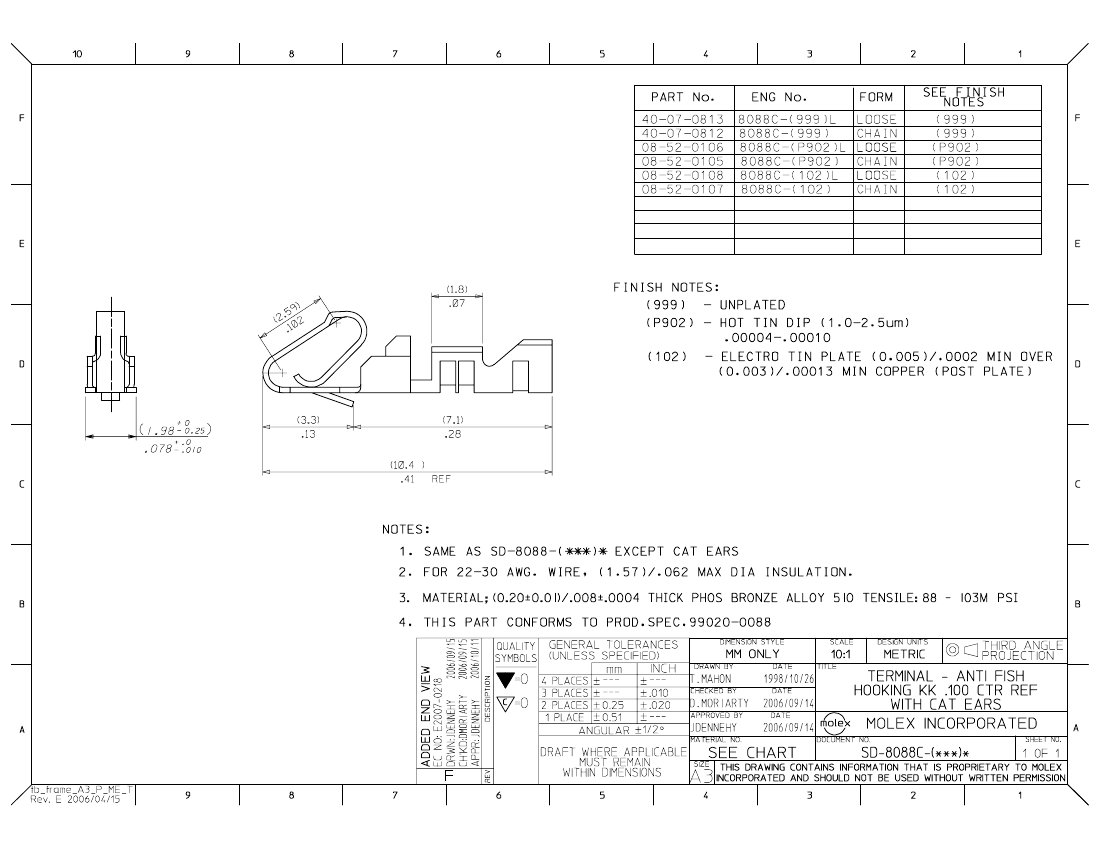

Drawing (PDF)
Product Specification PS-99020-0088 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
8088
Yes
kk
Cat Ear, KK®
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Tin
Reel
40
1
40
1
1.57mm (.062") max.
22, 24, 26, 28, 30
N/A
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Old Part Number
8088CP914
Search Parts in this Series
8088Series
Use With
2695 , 5051 , 6471
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-99020-0088
SD-8088C-(***)*
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Terminator Die
0011402102
Mini-Mac™ for KK® 0638887000
Cat Ear and Anti
Fish Hook Crimp
Terminals, 22-30
AWG
