67492-1441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 67492-1441

67492-1441: Description1.27mm (.050") pitch serial ata host receptacle, right angle, smt, mating height5.90mm (.232"), gold (Au) flash plating, 22 circuits, without cap, tray, lead free; CategoryThe connector The connector; File Size219KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

67492-1441 Overview

1.27mm (.050") pitch serial ata host receptacle, right angle, smt, mating height5.90mm (.232"), gold (Au) flash plating, 22 circuits, without cap, tray, lead free

67492-1441 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body length	1.65 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/31/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0674921441

Active

serial_ata_127_host_receptacles

1.27mm (.050") Pitch Serial ATA Host Receptacle, Right Angle, SMT, Mating Height

5.90mm (.232"), Gold (Au) Flash Plating, 22 Circuits, without Cap, Tray, Lead free

Documents:

3D Model

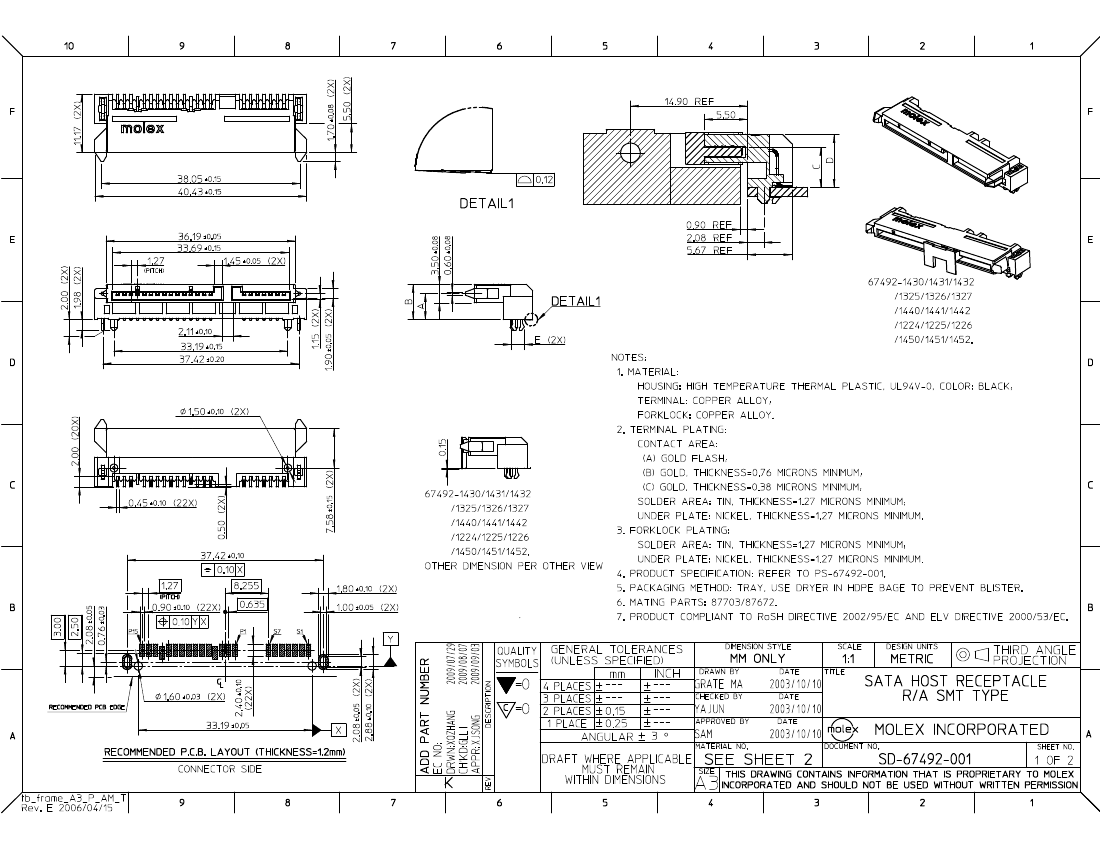

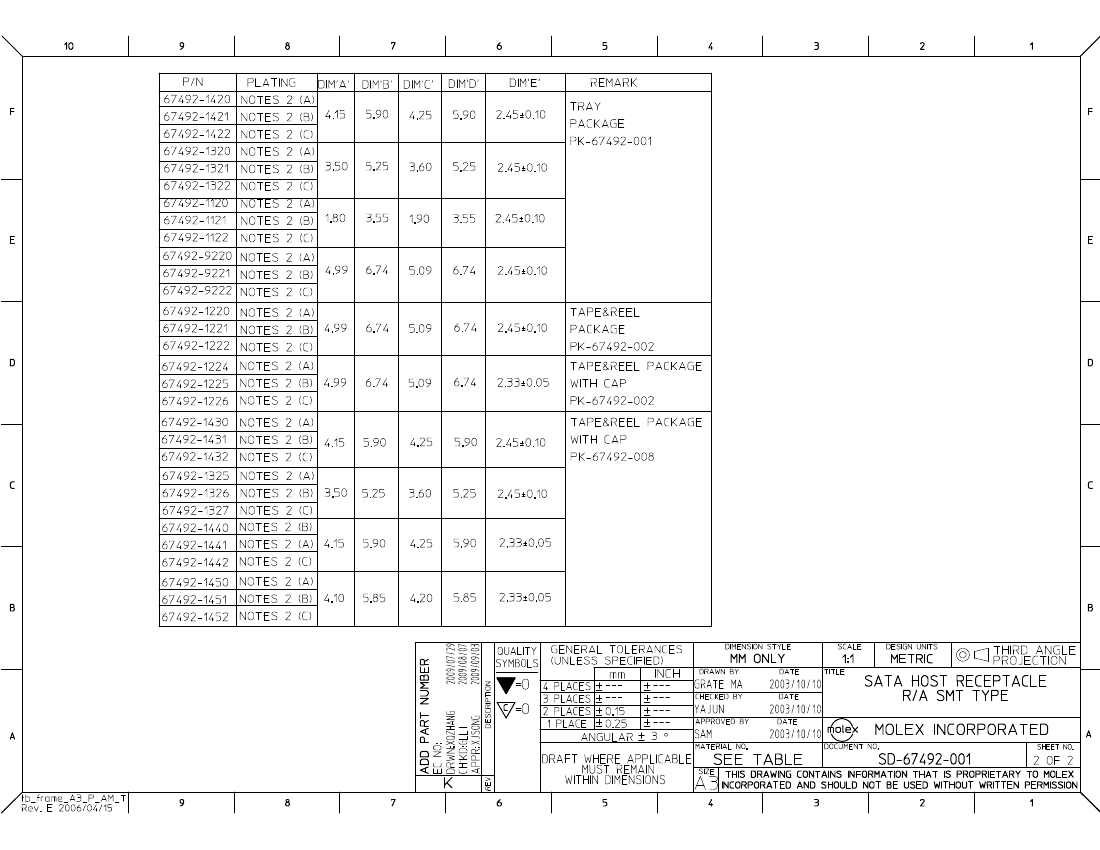

Drawing (PDF)

Product Specification PS-67492-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

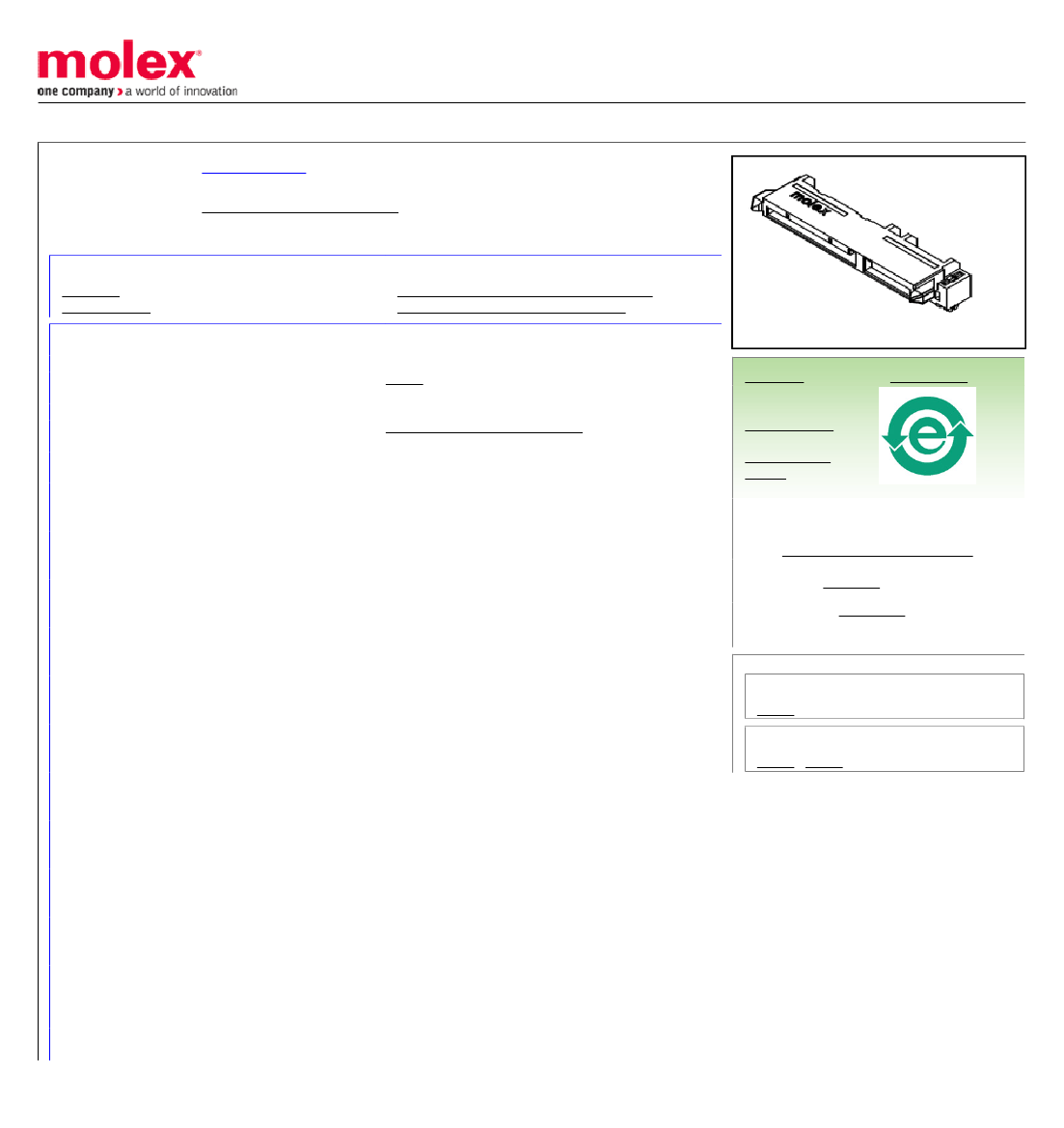

image - Reference only

PCB Receptacles

67492

Board-to-Board

Without Cap

serial_ata_127_host_receptacles

Serial ATA

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

500

Yes

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Right Angle

Yes

0.045 In

1.20 mm

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.05

1.27

Yes

-35°C to +85°C

Surface Mount

Search Parts in this Series

67492Series

Mates With

87703 , 87672 Serial ATA Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.5A

15V DC

67492-1441 Related Products

	67492-1441	0674921441
Description	1.27mm (.050") pitch serial ata host receptacle, right angle, smt, mating height5.90mm (.232"), gold (Au) flash plating, 22 circuits, without cap, tray, lead free	22 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE
