399400416 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 399400416

399400416: Description5.08mm (.200") pitch beau? euromate? pluggable pcb terminal block, dual level, 90?? wire entry, with retention screws, 16 circuits; CategoryThe connector terminals; File Size332KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

399400416 Overview

5.08mm (.200") pitch beau? euromate? pluggable pcb terminal block, dual level, 90?? wire entry, with retention screws, 16 circuits

399400416 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	SCREW
Installation type	CABLE
Number of layers	2
Rows	2
Number of channels	16
Rated current	10 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399400410

Active

5.08mm (.200") Pitch Beau™ EuroMate™ Pluggable PCB Terminal Block, Dual Level,

90° Wire Entry, with Retention Screws, 10 Circuits

Documents:

Drawing (PDF)

Product Specification PS-39940-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39940

Wire-to-Board

Gold plating available

Plug

USA-264

EuroMate™Pluggable

Euro Block

Physical

Circuits (Loaded)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Resin

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

94V-0

Yes

Nylon

Vertical

N/A

0.200 In

5.08 mm

0.200 In

5.08 mm

Yes

Tri-Barrier

130°C

Screw or Lug

12, 14, 16, 18, 20, 22

0.50 - 2.50

Search Parts in this Series

39940Series

Mates With

39535-0010 , 39535-4010 , 39536-0010 ,

39536-4010

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Old Part Number

946810

Reference - Drawing Numbers

Product Specification

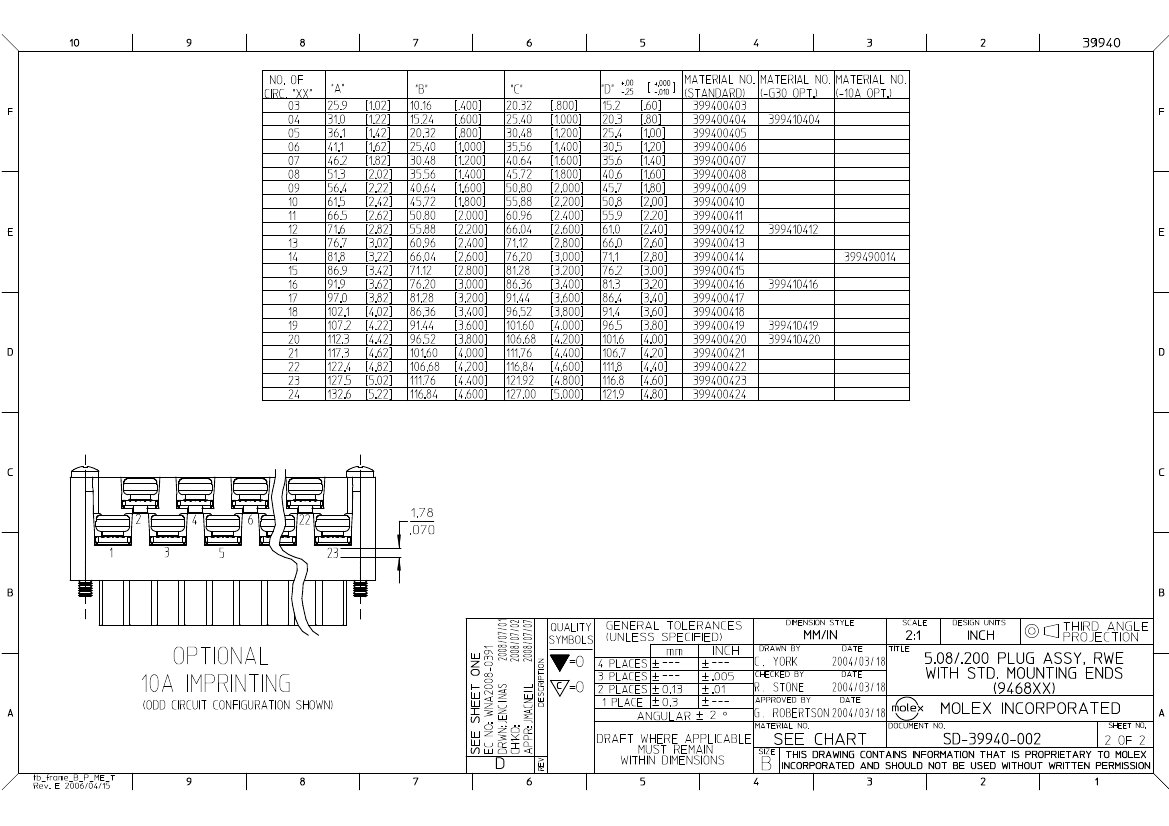

Sales Drawing

PS-39940-001

SD-39940-002

399400416 Related Products

	399400416	399400410
Description	5.08mm (.200") pitch beau? euromate? pluggable pcb terminal block, dual level, 90?? wire entry, with retention screws, 16 circuits	5.08mm (.200") pitch beau? euromate? pluggable pcb terminal block, dual level, 90?? wire entry, with retention screws, 10 circuits
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	THERMOPLASTIC	THERMOPLASTIC
Fastening method	SCREW	SCREW
Installation type	CABLE	CABLE
Number of layers	2	2
Rows	2	2
Number of channels	16	10
Rated current	10 A	10 A
Rated voltage	300 V	300 V
safety certificate	UL; CSA	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2	2.5 mm2
Wire gauge	12 AWG	12 AWG
Base Number Matches	1	1
