hyperabrupt junction, silicon tuning varactors in the
SOT-23 surface mount package. These thermal
oxide passivated diodes feature high capacitance
ratio and quality factor. They are well suited for
octave bandwidth tuning in the HF to UHF frequency
bands. The standard capacitance tolerance is
±10%, with tighter tolerances available. Capacitance
matching at one or more bias voltages is also
available. These diodes are supplied with 100%
matte Sn plating.
RoHS Compliant Parts
1
RoHS Compliant
Part Number
MAVR-000401-0287AT
MAVR-000403-0287AT
MAVR-000404-0287AT
MAVR-000405-0287AT
MAVR-000407-0287AT
MAVR-000409-0287AT
MAVR-000401-0287FT
MAVR-000403-0287FT
MAVR-000404-0287FT
MAVR-000405-0287FT
MAVR-000407-0287FT
MAVR-000409-0287FT
Configuration
Single
Single
Single
Single
Single
Single
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Common Cathode
Applications
The MAVR-000400 series tuning varactors are
useful for octave bandwidth tuning applications in
the HF through UHF ranges. Applications include
VCOs and voltage tuned filters in radios, cable TV
tuners and test instruments where low cost and
excellent lot-to-lot repeatability are critical. Linear
tuning performance is available from 3 to 8 volts.
1. Suffix refers to package style, configuration and packaging
requirements. Other packages and configurations may be
available upon request.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAVR-000400 Series
Surface Mount Hyperabrupt Varactors
Rev. V3
Electrical Specifications @ T
A
= +25°C
Breakdown Voltage @ I
R
= 10
A, V
b
= 22 V Minimum
Reverse Leakage Current @ V
R
= 20V, I
R
= 100 nA Maximum
C
T 3
RoHS Compliant
Part No. Base
2
Min.
MAVR-000401-0287AT
MAVR-000403-0287AT
MAVR-000404-0287AT
MAVR-000405-0287AT
MAVR-000407-0287AT
MAVR-000409-0287AT
MAVR-000401-0287FT
MAVR-000403-0287FT
MAVR-000404-0287FT
MAVR-000405-0287FT
MAVR-000407-0287FT
MAVR-000409-0287FT
9.0
13.5
16.2
19.8
29.7
42.3
9.0
13.5
16.2
19.8
29.7
42.3
(pF)
f = 1 MHz, V
R
= 4 V
Nom.
10.0
15.0
18.0
22.0
33.0
47.0
10.0
15.0
18.0
22.0
33.0
47.0
Max.
11.0
16.5
19.8
24.2
36.3
51.7
11.0
16.5
19.8
24.2
36.3
51.7
Capacitance Ratio
CT2 / CT20
Typ.
6
7
7
7.5
9
9.5
6
7
7
7.5
9
9.5
Q Factor
f = 50 MHz
V
R
= 4 V
Min.
250
250
175
175
150
150
250
250
175
175
150
150
2. The suffix defines package style, configuration and packaging information. Contact representative for complete part identification.
3. Capacitance specification is per diode
Absolute Maximum Ratings
4,5
@ T
A
= +25°C (Unless Otherwise Noted)
Parameter
Reverse Voltage
Forward Current
Total Power Dissipation
Operating Temperature
Storage Temperature
Absolute Maximum
22 V
50 mA
250 mW
-55°C to +125°C
-55°C to +125°C
2
4. Operation of this device above any one of these parameters
may cause permanent damage.
5. Please refer to application note M538 for surface mounting
instructions.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAVR-000400 Series
Surface Mount Hyperabrupt Varactors
Rev. V3

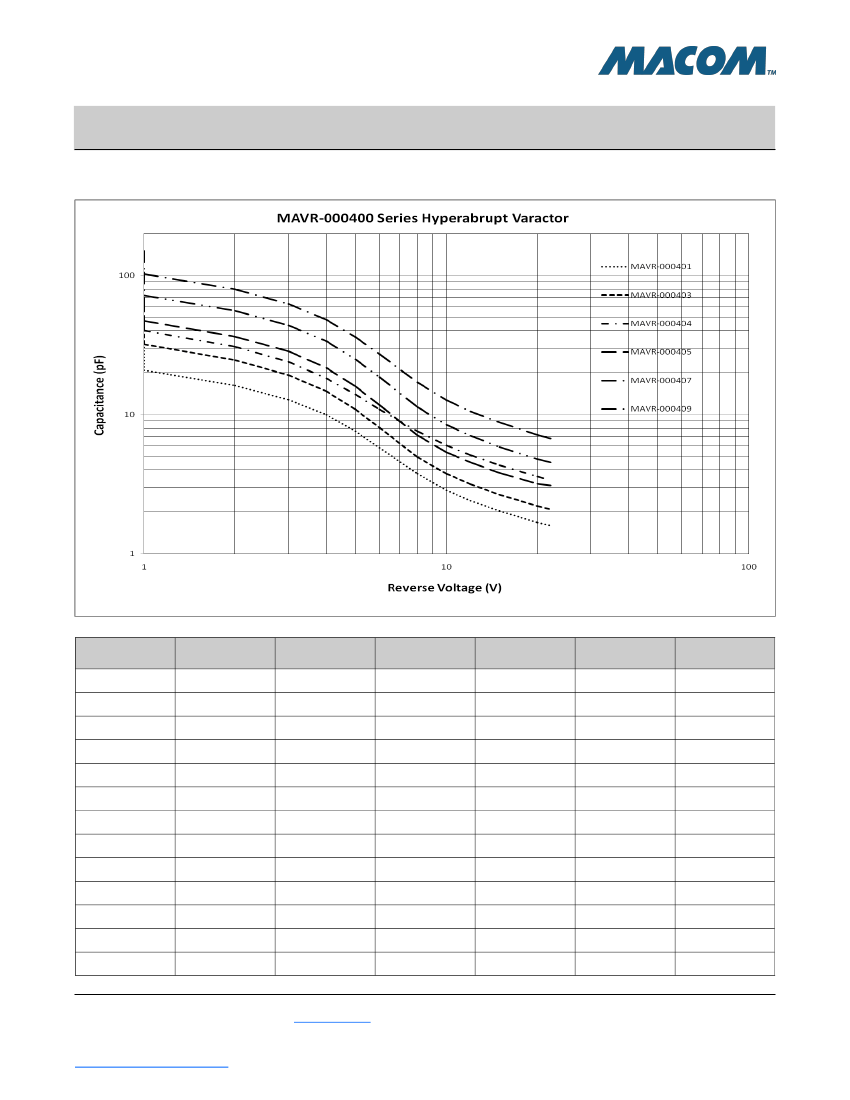

Typical Performance Curves
Tabulated Capacitance Data
Bias (V)
0
1
2
3
4
5
6
8
10
12
15
20
22
3
MAVR-000401
30.37
20.86
16.19
12.83
9.99
7.59
5.80
3.76
2.86
2.41
2.03
1.68
1.60
MAVR-000403
47.05
32.12
24.72
19.33
14.74
10.90
8.08
4.96
3.76
3.17
2.66
2.21
2.09
MAVR-000404
59.64
40.43
30.89
24.00
18.35
13.95
10.94
7.61
6.00
5.12
4.33
3.60
3.39
MAVR-000405
69.45
47.47
36.55
28.57
21.73
15.95
11.73
7.11
5.37
4.53
3.81
3.18
3.11
MAVR-000407
105.60
72.34
55.93
44.02
33.85
25.13
18.64
11.37
8.45
7.05
5.87
4.81
4.53
MAVR-000409
150.59
103.10
79.70
62.79
48.45
36.27
27.26
17.11
12.73
10.58
8.79
7.17
6.75
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAVR-000400 Series
Surface Mount Hyperabrupt Varactors
Rev. V3
Mounting Information
The illustration indicates the recommended
mounting pad configuration for the SOT-23 package.
Permanent attachment is performed by a reflow
soldering procedure during which the tab
temperature does not exceed +275°C and the body
temperature does not exceed +260°C, using RoHS
compliant solders
Please refer to Application Note M538 for surface
mounting instructions.
SOT-23
.030 min.
0.80
.035 min.
0.90
.037
0.95
0.75
1.9
.090
2.2
Dimenstions: inches
mm
SOT-23 (Case Style 287)
F
D
A
N
SOT-23 (Case Style 287)
DIM.
A
B
C
D
M
B
K
INCHES
MIN.
0.013
0.003
0.110
0.047
MILLIMETERS
MIN.
0.35
0.08
2.80
1.20
MAX.
0.048
0.008
0.040
0.020
0.006
0.119
0.056
MAX.
1.22
0.20
1.00
0.50
0.15
3.00
1.40
G
E
F
G
H
L
H
J
C
E
0.037 typical
0.075 typical
0.103
0.024
10 max.
2 . . .30
0.95 typical
1.90 typical
2.60
0.60
J
K
L
DIM.
M
N
GRADIENT
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAVR-000400 Series
Surface Mount Hyperabrupt Varactors
Rev. V3
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
