50322-7612

Description
spade tongue terminal for 16-22 awg, closed uninsulated brazed barrel, stud size8 (M4), oxygen-free copper, length 16.40mm (.646"), width 7.00mm (.276")
CategoryThe connector    terminals
File Size147KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

50322-7612 Overview

spade tongue terminal for 16-22 awg, closed uninsulated brazed barrel, stud size8 (M4), oxygen-free copper, length 16.40mm (.646"), width 7.00mm (.276")

50322-7612 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Manufacturer's serial number50322
Terminal and terminal strip typesFORK TERMINAL
Conductor cross section1.65 mm2
Wire gauge16 AWG
Base Number Matches1
This document was generated on 03/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0503227612
Active
Spade Tongue Terminal for 16-22 AWG, Closed Uninsulated Brazed Barrel, Stud Size
8 (M4), Oxygen-Free Copper, Length 16.40mm (.646"), Width 7.00mm (.276")
Documents:

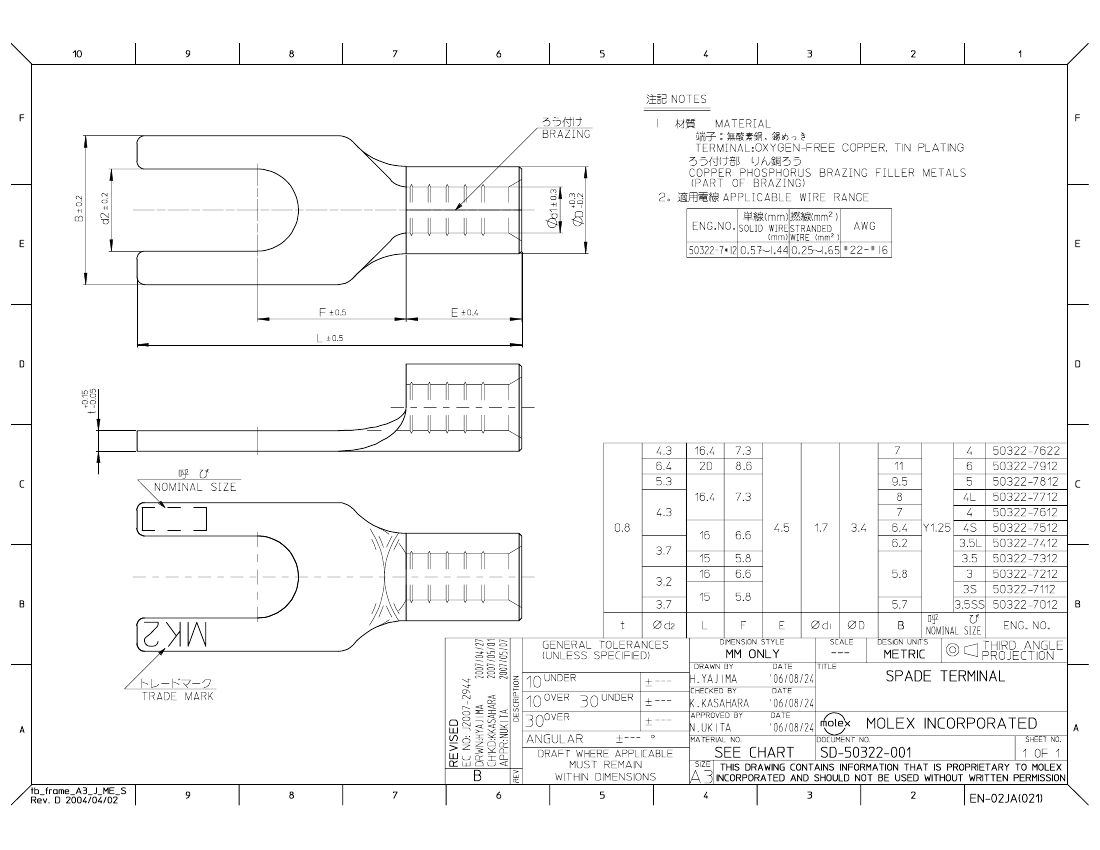

Drawing (PDF)
Product Specification PS-50322-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
50322
Yes
N/A
Y (Spade)
Spade
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
40
1
40
1
8 (M4)
Crimp or Compression
16, 18, 20, 22
0.25 - 1.65
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-50322-001
SD-50322-001
Search Parts in this Series
50322Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Hand Crimper For
0572575000
JIS Terminal
Hand Crimper For
0573435002
JIS Terminal
Air Type Hand
0573439005
Crimper For JIS
Terminal
This document was generated on 03/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

50322-7612 Related Products

50322-7612 0503227612
Description spade tongue terminal for 16-22 awg, closed uninsulated brazed barrel, stud size8 (M4), oxygen-free copper, length 16.40mm (.646"), width 7.00mm (.276") Spade Tongue Terminal for 16-22 AWG, Closed Uninsulated Brazed Barrel, Stud Size8 (M4), Oxygen-Free Copper, Length 16.40mm
Is it Rohs certified? conform to conform to
Reach Compliance Code unknow unknown
ECCN code EAR99 EAR99
Manufacturer's serial number 50322 50322
Terminal and terminal strip types FORK TERMINAL FORK TERMINAL
Conductor cross section 1.65 mm2 1.65 mm2
Wire gauge 16 AWG 16 AWG
Base Number Matches 1 1
