DNA-AJS-K2M1-1: DescriptionSingle Color LED, Amber, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size883KB，13 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/

Download Datasheet Parametric Compare View All

DNA-AJS-K2M1-1 Overview

Single Color LED, Amber, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DNA-AJS-K2M1-1 Parametric

Parameter Name	Attribute value
Maker	DOMINANT
package instruction	2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	AMBER
Configuration	SINGLE
Maximum forward current	0.02 A
JESD-609 code	e3
Nominal luminous intensity	14.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.2 mm
method of packing	TAPE AND REEL 7\"
shape	RECTANGULAR
size	1.5 mm
surface mount	YES
Terminal surface	TIN
Terminal pitch	2 mm
perspective	120 deg
Base Number Matches	1

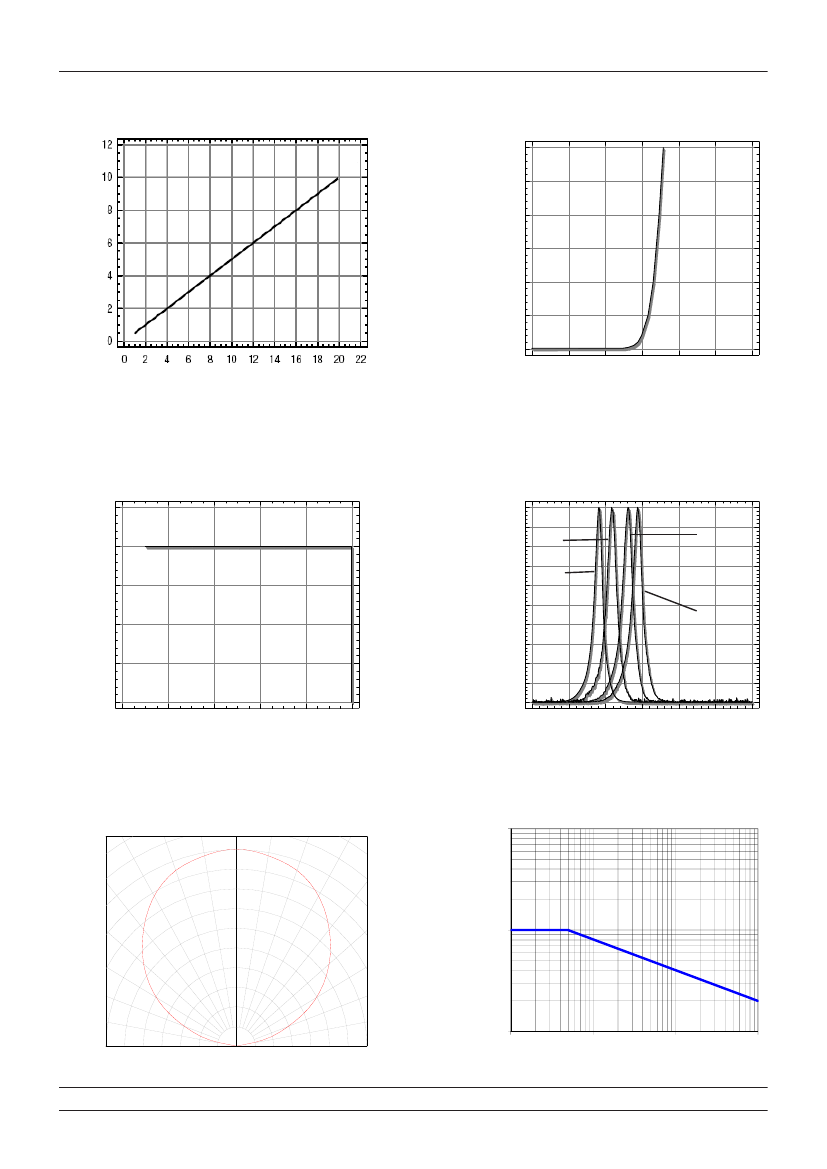

Preview

Download Datasheet

View All

DOMINANT

Innovating Illumination

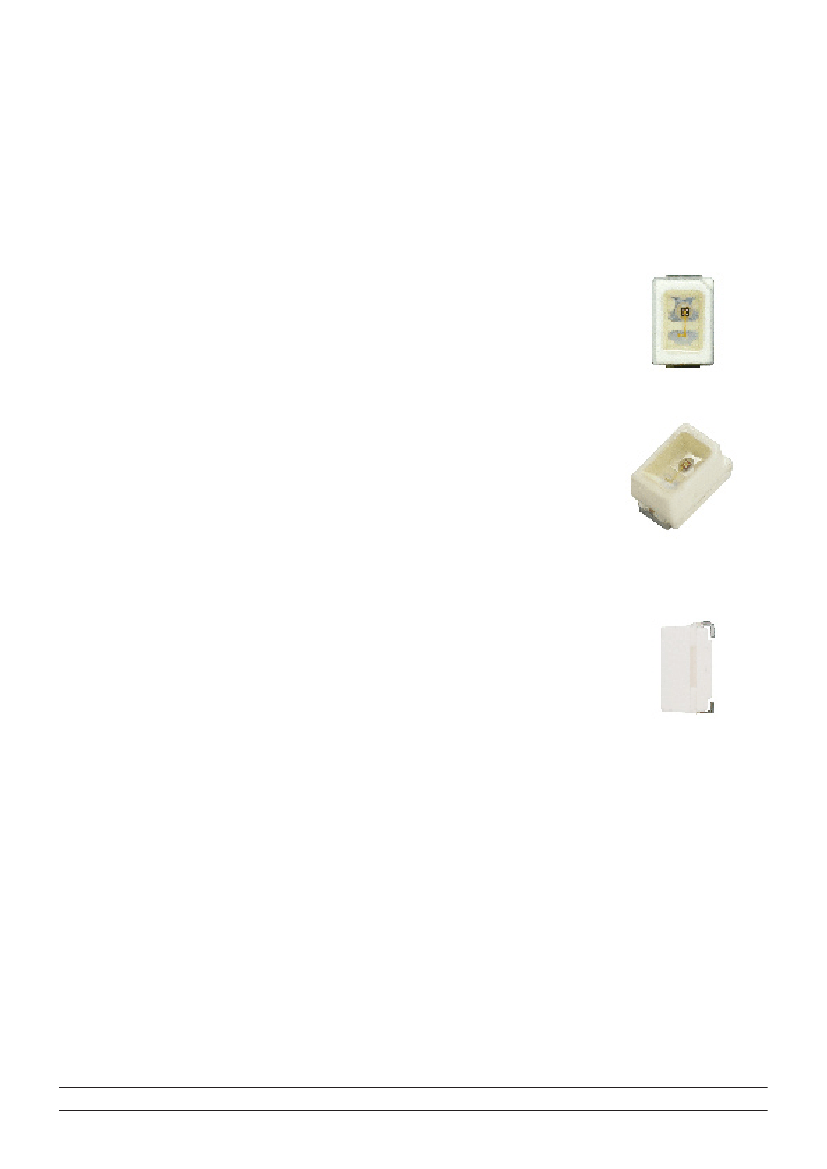

DATA SHEET:

Opto Technologies

Mini DomiLED

AlInGaP : DNx-AJS

Mini DomiLED

Synonymous with function and performance, the Mini

DomiLED

series

is perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

120° viewing angle.

Small package outline (LxWxH) of 2.0 x 1.4 x 1.3mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Backlighting: button, LCD display

30/01/2014 V4.0

DNA-AJS-K2M1-1 Related Products

	DNA-AJS-K2M1-1	DNS-AJS-J2L1-1	DNY-AJS-K2M1-1	DNO-AJS-K2M1-1
Description	Single Color LED, Amber, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Super Red, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Orange, 1.5mm, 2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
package instruction	2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	2 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED
color	AMBER	SUPER RED	YELLOW	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A
JESD-609 code	e3	e3	e3	e3
Nominal luminous intensity	14.0 mcd	9.0 mcd	14.0 mcd	14.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.5 mm	1.5 mm	1.5 mm	1.5 mm
surface mount	YES	YES	YES	YES
Terminal surface	TIN	TIN	TIN	TIN
Terminal pitch	2 mm	2 mm	2 mm	2 mm
perspective	120 deg	120 deg	120 deg	120 deg
Maker	DOMINANT	-	DOMINANT	DOMINANT
