4:1 Flux Coupled Step-up Transformer
1-350MHz
Features
•
•
•
•
•
•
Surface Mount
4:1 Impedance
260°C Reflow Compatible
RoHS* Compliant
RoHS version of ETC4-1 and MABACT0011.
Available on Tape and Reel. Reel quantity 2000
MABA-007493-CF4160
V1P

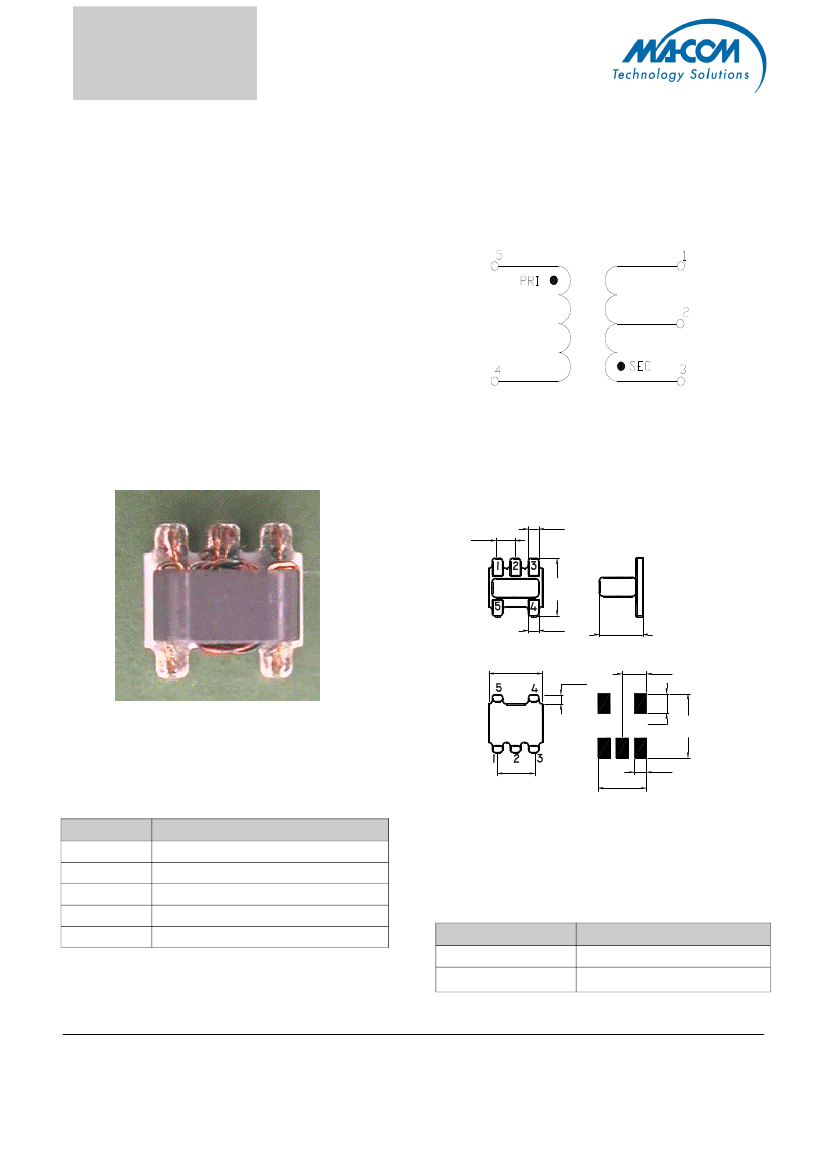

Schematic
Description
M/A-COM’s MABA-007493-CF4160 is a 4:1 flux cou-
pled step-up transformer in a low cost, surface
mount package. Ideally suited for high volume
CATV/Broadband applications.
Case Style: SM-22
Pin Configuration
Pin No.
1
2
3
4
5
Function
Secondary
Secondary CT
Secondary Dot
Primary
Primary Dot
Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010
Ordering Information
Part Number
MABA-007493-CF4160TR
Package
2000 piece reel
Customer test board
Note: Reference Application Note
M513
for reel size information.
MABA-007493-CF41TB
