Power Divider in a low cost, surface mount package.
Ideally suited for high volume CATV/Broadband
applications. No external components are required
with this product.

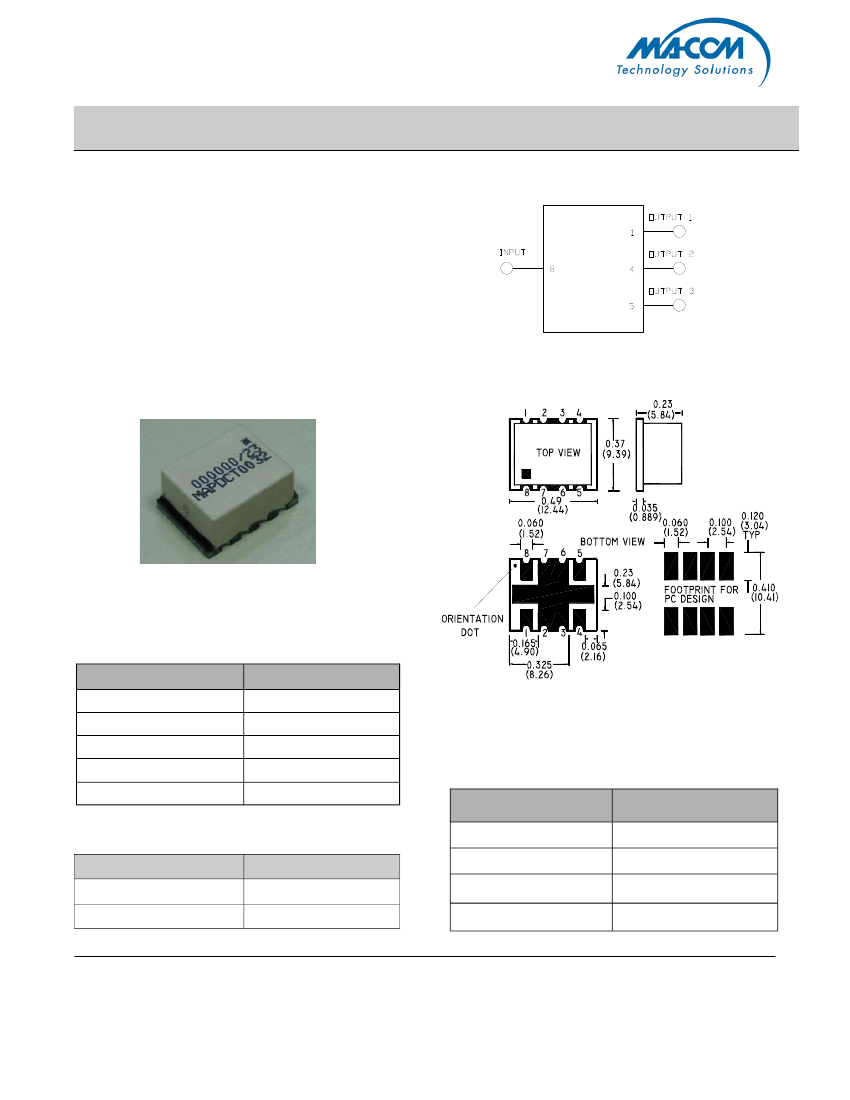

Case Style SM-4
Pin Configuration
Function
1
2,3,6,7
4
5
8
Pin Number
Output 1
Ground
Output 2
Output 3
Input
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
Absolute Maximum Ratings
1,2
Parameter
RF Power
Absolute Maximum
250 mW
30 mA
-40°C to +85°C
-40°C to +85°C
Ordering Information
Part Number
MAPDCT0032
MAPD-008112-CT32TB
1
Package
500 piece reel
Customer Test Board
DC Current
Operating Temperature
Storage Temperature
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
development. Performance is based on target specifications, simulated results, and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under development. Performance is based on engineering tests. Specifications are typical. Mechanical
MAPDCT0032
3 Way 0 Degree Power Divider
5 to 1200 MHz
Electrical Specifications: : T
A
= 25°C, Z
0
= 75Ω
Parameter
Insertion Loss 1 (pin8 - pin1)
Ref value -4.77dB
*
Frequency
5 - 46 MHz
46 - 870 MHz
870 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 870 MHz
870 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 870 MHz
870 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 405MHz
405 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 1200 MHz
*
5 - 46 MHz
46 - 740 MHz
740 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 1002 MHz
1002 - 1200 MHz
5 - 46 MHz
46 - 1002 MHz
5 - 46 MHz
46 - 1002 MHz
5 - 50 MHz
50 - 1200 MHz
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
º
º
Min
-
-
-
-
-
-
-
-
-
-
-
-
33
20
17.5
11
22
20
22
20
17
14
34
20
18
-
-
-
-
-
-
Typ
0.37
1.23
1.50
2.23
0.37
1.0
1.2
2.0
0.38
1.5
1.8
2.8
34
25
20
18
24
25
24
20
25
18
40
25
24
0.0
0.3
-0.1
-0.3
0.4
3.0
Max
0.39
1.5
1.8
3.2
0.39
1.3
1.5
2.8
0.40
1.8
2.2
3.3
-
-
-
-
-
-
-
-
-
-
-
-
-
-0.1
0.5
-0.2
-0.5
0.5
4.0
M/A-COM Products
Part Status: Released, Rev. V2
Insertion Loss 2 (pin8 - pin4)
Ref value -4.77dB
*
Insertion Loss 3 (pin8 - pin5)
Ref value -4.77dB
*
Input Return Loss
*
Output Return Loss 1&2
(Pin1, Pin4)
Output Return Loss 3
(Pin5)
Isolation Between all Outputs
Amplitude Unbalance,
Output 1 to Output 2 (pin 1, 4)
Amplitude Unbalance,
Output 1 to Output 3 (pin 1, 5) &
Output 2 to Output 3 (pin 4, 5)
Phase Unbalance between all
Outputs
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
development. Performance is based on target specifications, simulated results, and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under development. Performance is based on engineering tests. Specifications are typical. Mechanical
MAPDCT0032
3 Way 0 Degree Power Divider
5 to 1200 MHz
Typical Performance Curves @ T
A
= 25°C, Z
0
= 75Ω
Insertion Loss
0.0
-0.5
-1.0
-1.5
-2.0
-2.5
5
244
483
722
961
1200
M/A-COM Products
Part Status: Released, Rev. V2
Isolation
0
-5
-1
0
-1
5
dB
dB
-20
-25
-30
-35
-40
5
244
483
722
961
1
200
Frequency (MHz)
Amplitude Balance
1.0
0.8
0.6
0.4
Frequency (MHz)
Phase Balance
2.0
1.5
1.0
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
5
244
483
722
961
1200
Degree
0.2
0.5
0.0
-0.5
-1.0
-1.5
-2.0
5
244
483
722
961
1200
dB
Frequency (MHz)
Frequency (MHz)
Return Loss: Input
0
-5
- 10
- 15
-20
-25
-30
-35
5
244
483
722
961
1200
Return Loss: Output
0
-5
-10
dB
dB
-15
-20
-25
-30
-35
5
244
483
722
961
1200
Frequency (MHz)
Frequency (MHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
development. Performance is based on target specifications, simulated results, and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under development. Performance is based on engineering tests. Specifications are typical. Mechanical
