1335-5-32-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1335-5-32-0

1335-5-32-0: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1335-5-32-0 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug

1335-5-32-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.165 inch
subject depth	0.472 inch
body length	1.038 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	1335
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

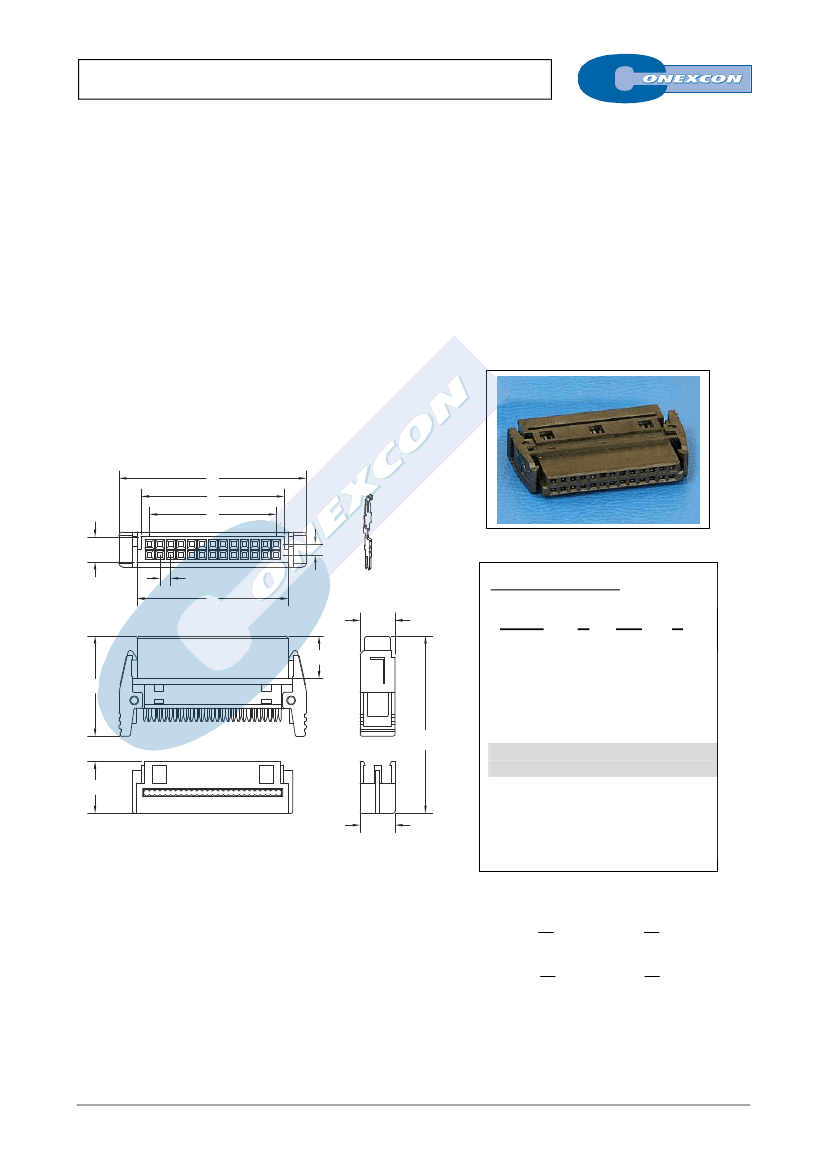

FLAT CABLE IDC SOCKET

1335 SERIES.

1.27 x 1.27 mm. (0.050 x 0.050”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 26, 30, 34, 36, 40,

44, 50, 60, 68 and 80 circuits

Mates with 1.27 mm pitch pin headers and connectors

1336, 1337 and 1338 series

Use flat cable 0.635 mm pitch 9063 series

Bifurcated contact



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Beryllium cooper

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

3.0

1.27

4.2

5.1

12.0

1. Connector Series

2. (T) Contact Plating

1.27

Ordering Information:

1335 -

T-

XX-

12.3



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

6.2

4.2

3. (XX) Number of circuits



Available in 6 through 80 circuits

Dimensions:

(In mm.)

1.27























0.68

1.27

















1.68

1.27

















6.04

1.27









(XX) = Number of circuits

A-XX
