RoHS
Compliant
2 Way 0º Power Divider
50-120MHz
Features
•
•
•
•
•
•
Surface Mount
2 Way 0º Power Divider
260°C Reflow Compatible
RoHS* Compliant
RoHS version of ESSM-2-9-75
Available on Tape and Reel. Reel Quantity 2000
MAPD-008185-C20720
V2

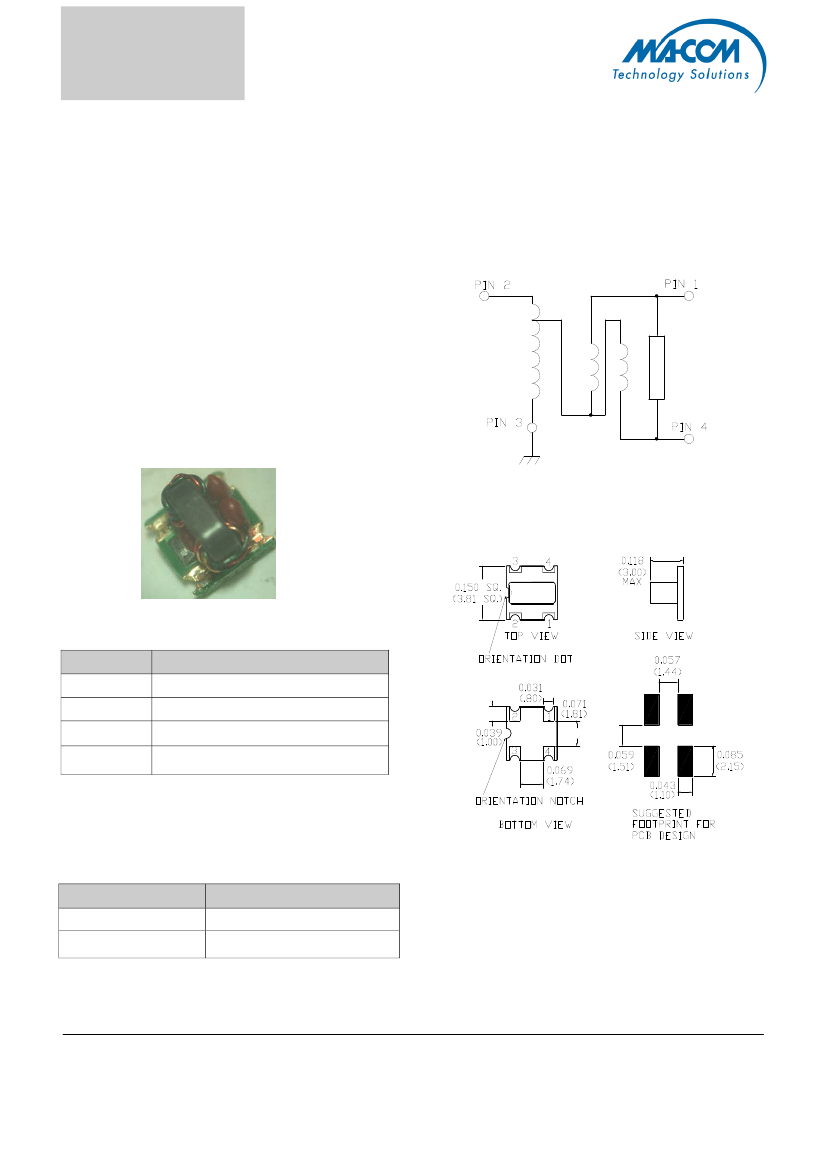

Schematic
Description
M/A-COM’s MAPD-008185-C20720 is a 2 Way 0
o
Power Divider in a low cost, surface mount package.
ideally suited for high volume cellular, wireless and
CATV applications. No external resistor is required
with this part.
Case Style: SM-114
Pin Configuration
Pin No.
1
2
3
4
Function
Port 1
Input
Ground
Port 2
Ordering Information
Part Number
MAPD-008185-C20720
MAPD-008185-C207TB
Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010
Package
2000
Customer Test Board
Note: Reference Application Note
M513
for reel size information.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
RoHS
Compliant
2 Way 0º Power Divider
50-120MHz
MAPD-008185-C20720
V2
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
1
Parameter
Insertion Loss
Isolation
Frequency
5 - 120 MHz
5 - 50MHz
50 - 60MHz
60 - 120MHz
5 - 120MHz
5 - 120 MHz
Units
dB
dB
dB
dB
dB
o
Min
—
Typ
00.3
Max
00.6
23
22
21
—
—
—
—
—
—
—
—
00.5
2.0
o
Amplitude Unbalance
Phase Unbalance
—
—
Absolute Maximum Ratings
1,2
Parameter
RF Power
Internal Load Dissipation
Pin Temp (10 Sec)
Operating/Storage
Temperature
Recommended PCB Configuration
Absolute Maximum
1 Watt
0.125 Watt
260°C
-55°C to +100°C
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM does not recommend sustained operation near
these survivability limits.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
RoHS
Compliant
2 Way 0º Power Divider
50-120MHz

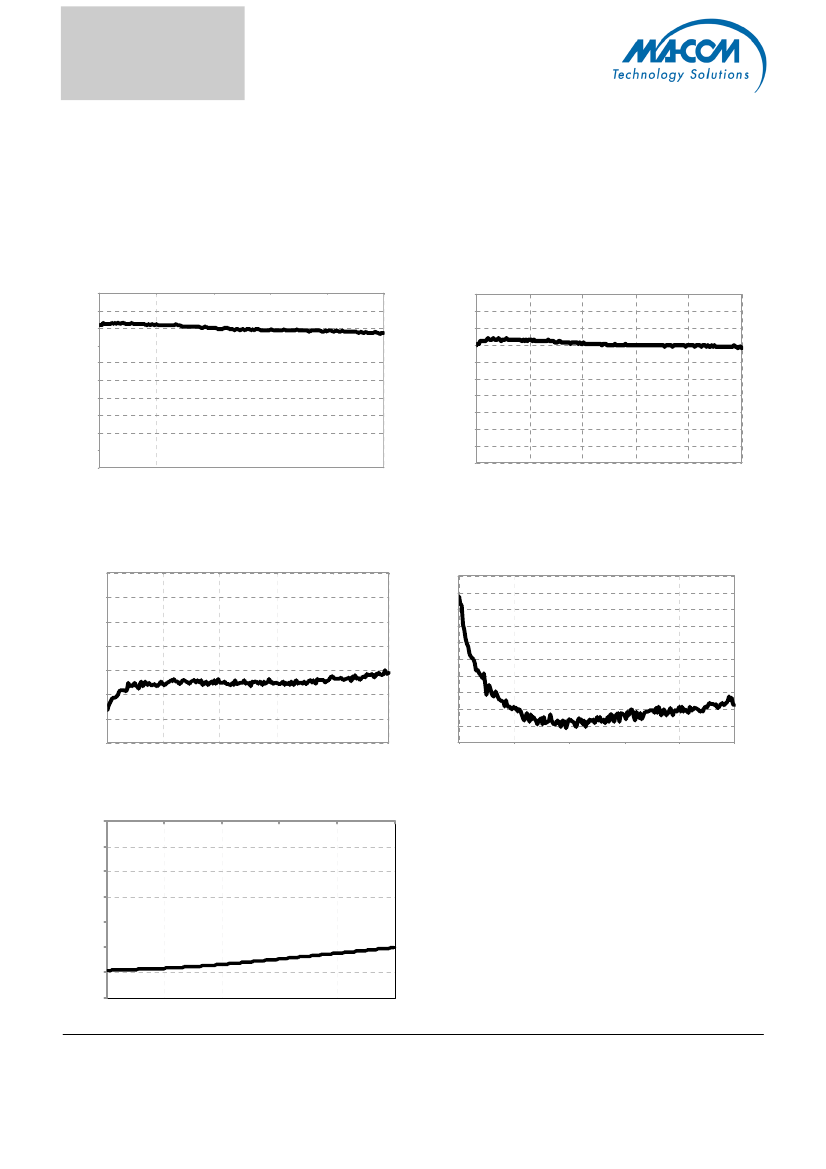

Typical Performance Curves: T
A
= 25°C, Z
0
= 75Ω
1
MAPD-008185-C20720
V2
Insertion Loss 1: Pin 4 to 1
-3. 00
- 3 . 10
-3. 20
Insertion Loss 2: Pin 4 to 6
-3.00
- 3 . 10
-3.20
-3.30
-3.40
-3. 30
-3. 40
dB
dB
-3. 50
-3.50
-3.60
-3.70
-3.80
-3.90
-4.00
-3. 60
-3. 70
-3. 80
-3. 90
-4. 00
5
28
51
74
97
12
5
28
51
74
97
12 0
Frequency (MHz)
Frequency (MHz)
Amplitude Unbalance
0.00
-0. 02
Phase Unbalance
0.50
0.45
0.40
-0. 04
Degrees
0.35
0.30
0.25
0.20
0 . 15
0 . 10
dB
-0. 06
-0. 08
- 0 . 10
- 0 . 12
0.05
- 0 . 14
5
28
51
74
97
12 0
0.00
5
28
51
74
97
12 0
Frequency (MHz)
Isolation
0
-5
- 10
- 15
- 20
- 25
- 30
- 35
5
28
51
74
97
120
Frequency (MHz)
dB
3
Frequency (MHz)
