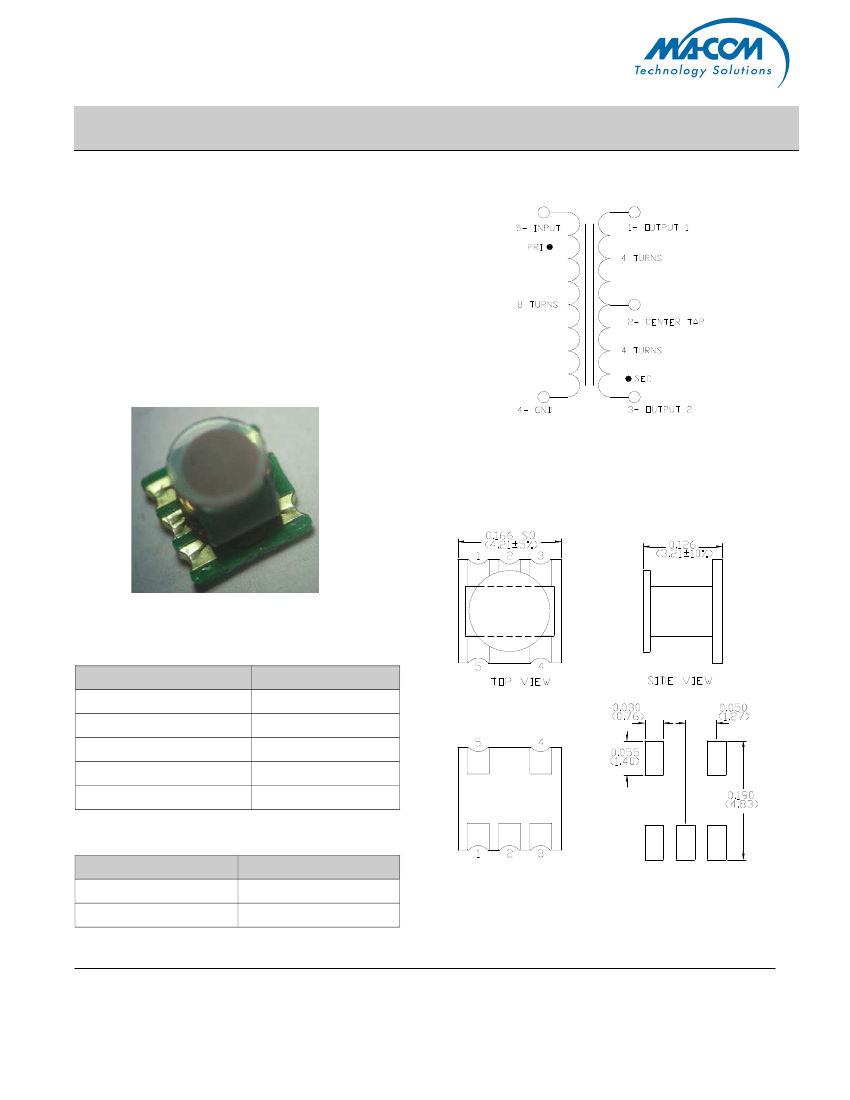

MABA-009005-CF1A40
1:1 Flux Coupled Balun Transformer
5 - 120 MHz
Features
•
•
•
•
Surface Mount
1:1 Impedance
75 Ohm
RoHS Compliant and lead free
M/A-COM Products
Part Status: Released Rev V1
Schematic
Description
M/A-COM’s MABA-009005-CF1A40 is a 1:1 RF flux
coupled Transformer in a low cost surface mount
package. Ideally suited for high volume CATV appli-
cation.
Case Style SM-164A
Pin Configuration
Function
Secondary (Output 1)
Secondary Centre Tap
Secondary Dot (Output 2)
Primary (Ground)
Primary Dot (Input)
Pin Number
1
2
3
4
5
Ordering Information
Part Number
MABA-009005-CF1A40
MABA-009005-CF1ATB
Package
2000 pieces per reel
Customer test board
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABA-009005-CF1A40
1:1 Flux Coupled Balun Transformer
5 - 120 MHz
M/A-COM Products
Part Status: Released Rev V1
Electrical Specifications: T
A
= 25°C, 0dBm, Z
0
= 75Ω
Parameter
Frequency Range
Insertion Loss 1 (Pin 5 to Pin 1)
Insertion Loss 2 (Pin 5 to Pin 3)
Amplitude Un-Balance
Phase Un-Balance
Input Return Loss (Pin 5)
Test Conditions
5 – 120 MHz
5 – 80 MHz
80 – 120 MHz
5 – 80 MHz
80 – 120 MHz
5 – 80 MHz
80 – 120 MHz
5 – 65 MHz
65 – 120 MHz
5 – 70 MHz
70 – 120 MHz
Units
Min.
Typ.
Max.
dB
dB
dB
dB
dB
dB
º
º
dB
dB
–
–
–
–
–
–
–
–
19
14
0.1
0.3
0.2
0.4
±0.06
±0.18
±0.05
±0.10
25
19
0.4
0.5
0.4
0.6
±0.2
±0.3
±1.5
±3.0
–
–
Absolute Maximum Ratings
Recommended PCB Configuration
Parameter
RF Power
DC Current
Operating Temperature
Storage Temperature
Absolute Maximum
250mW
30mA
-40°C to +85°C
-40°C to +85°C
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABA-009005-CF1A40
1:1 Flux Coupled Balun Transformer
5 - 120 MHz
Typical Performance: T
A
= 25°C, 0dBm, Z
0
= 75Ω
Insertion Loss 1 (Pin 5 - Pin 1)
0.0
-0.1
-0.2
-0.3
-0.4
0.0
-0.1
-0.2
-0.3
-0.4
M/A-COM Products
Part Status: Released Rev V1
Insertion Loss 2 (Pin 5 - Pin 3)
dB
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
5
24
43
62
82
101
120
dB
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
5
24
43
62
82
101
120
F re que nc y ( M H z)
F reque nc y ( M H z)
Amplitude Balance
1.0
0.8
0.6
0.4
Phase Balance
181.0
180.8
180.6
180.4
degree
0.2
180.2
180.0
179.8
179.6
179.4
179.2
179.0
dB
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
5
24
43
62
82
101
120
5
24
43
62
82
101
120
F re que nc y (M H z)
F re que ncy ( M H z)
0
-5
-10
Return Loss: Input (Pin 5)
dB
-15
-20
-25
-30
-35
5
24
43
62
82
101
120
F re que nc y ( M H z)
