0010894246: Description2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,24 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating; CategoryThe connector The connector; File Size121KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0010894246 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0010894246	-	-	View	Buy Now

0010894246 Overview

2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,24 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating

0010894246 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS/PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

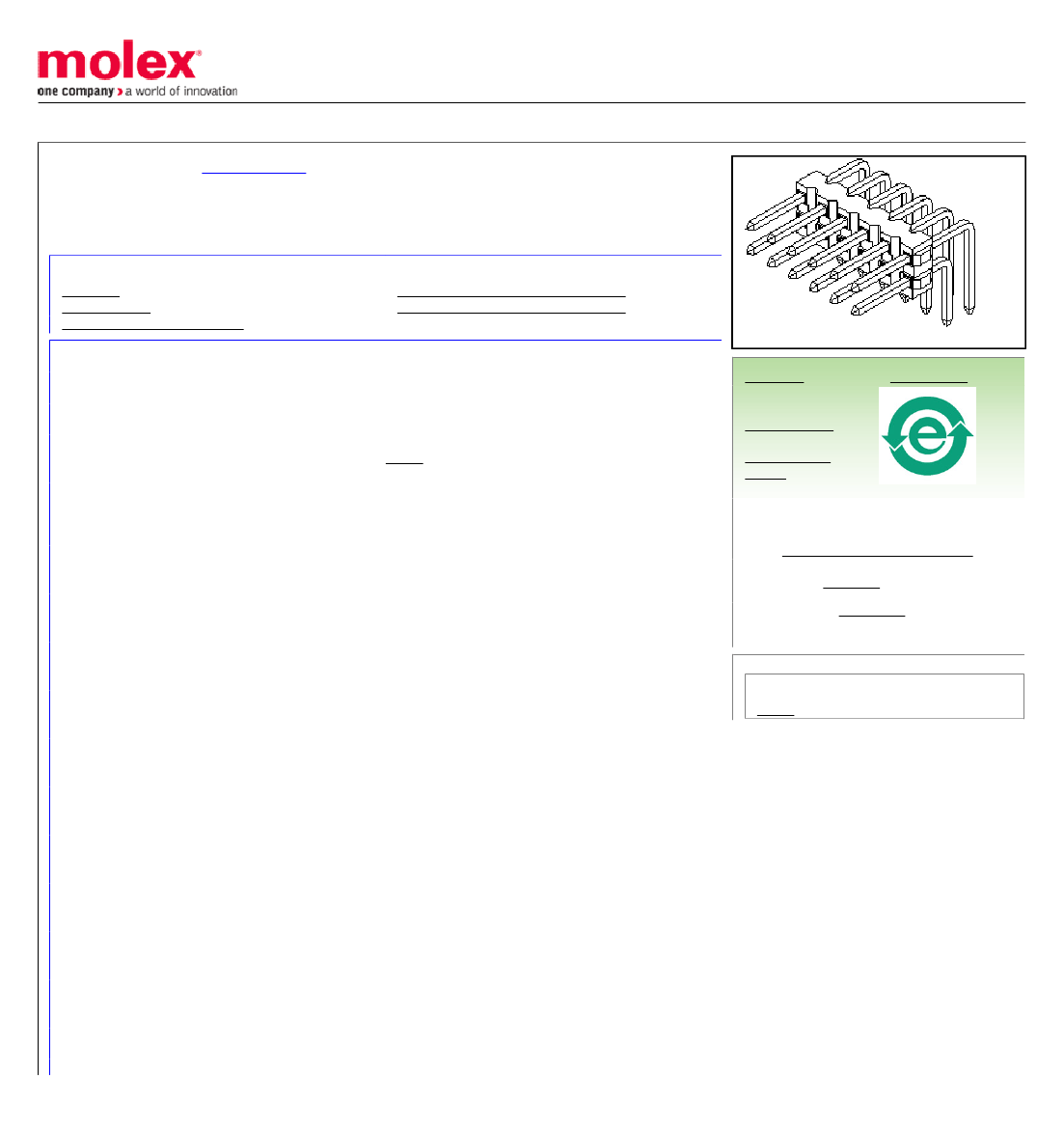

This document was generated on 03/29/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0010894146

Active

2.54mm (.100") Pitch C-Grid® Breakaway Header, High Profile, Dual Row, Right Angle,

14 Circuits, 6.10mm (.240") Mating Pin Length, 0.76µm (30µ") Gold (Au) Selective

Plating

Documents:

3D Model

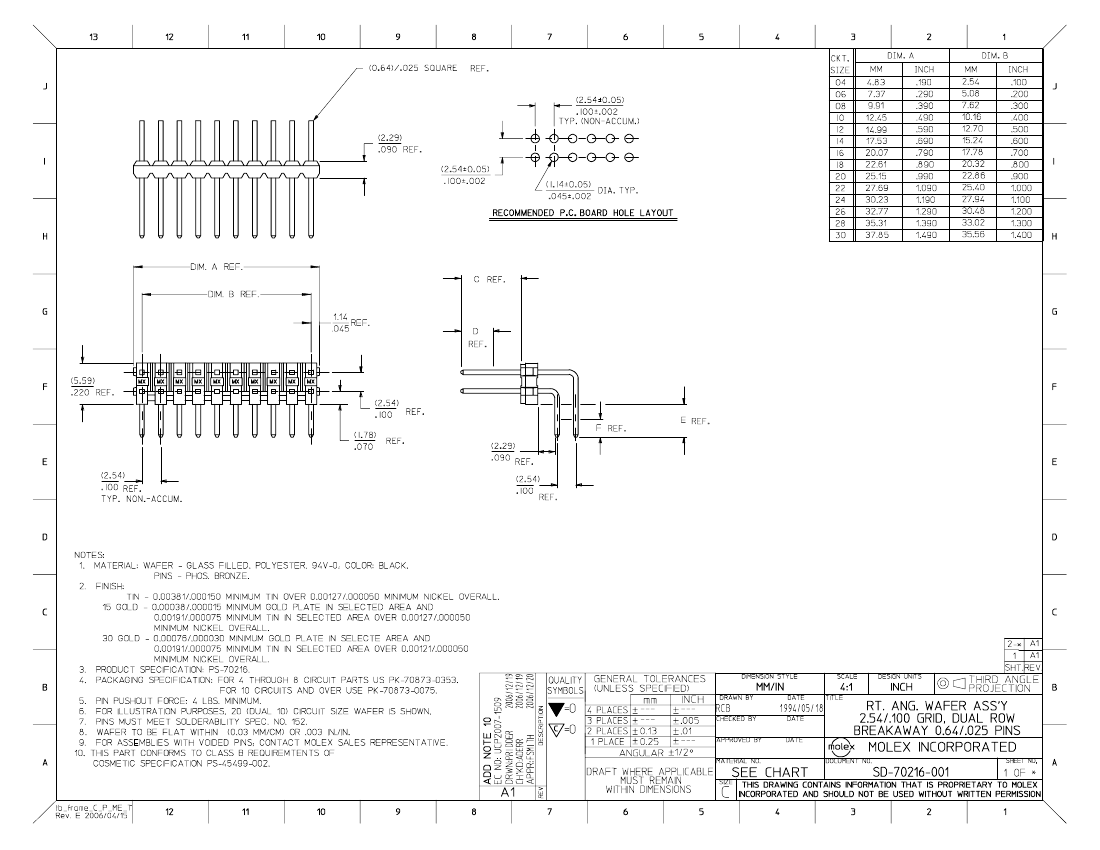

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-70216 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

PCB Headers

70216

Board-to-Board, Wire-to-Board

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Brass, Phosphor Bronze

Gold

Tin

Polyester

Right Angle

0.110 In

2.79 mm

None

Tube

0.100 In

2.54 mm

0.75

1.875

Yes

-40°C to +105°C

Through Hole

Search Parts in this Series

70216Series

Electrical

Current - Maximum per Contact

0010894246 Related Products

	0010894246	0010894146	0010894162	0010894166
Description	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,24 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 14 circuits, 6.10mm (.240") mating pin length	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 16 circuits, 6.10mm (.240") mating pin length	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,16 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD (150)	GOLD	GOLD (150)
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	BRASS/PHOSPHOR BRONZE	PHOSPHOR BRONZE	BRASS/PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	14	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
Factory Lead Time	8 weeks	8 weeks	-	7 weeks
