HW-08-20-G-D-335-SM

Description
Board Stacking Connector
CategoryThe connector    The connector
File Size135KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

HW-08-20-G-D-335-SM Overview

Board Stacking Connector

HW-08-20-G-D-335-SM Parametric

Parameter NameAttribute value
Objectid7107051071
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.58
subject depth0.335 inch
body length0.8 inch
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts16
UL Flammability Code94V-0
F-217
HW–15–08–G–S–335–SM
HW–25–15–L–D–474–SM–A
(2.54 mm) .100"

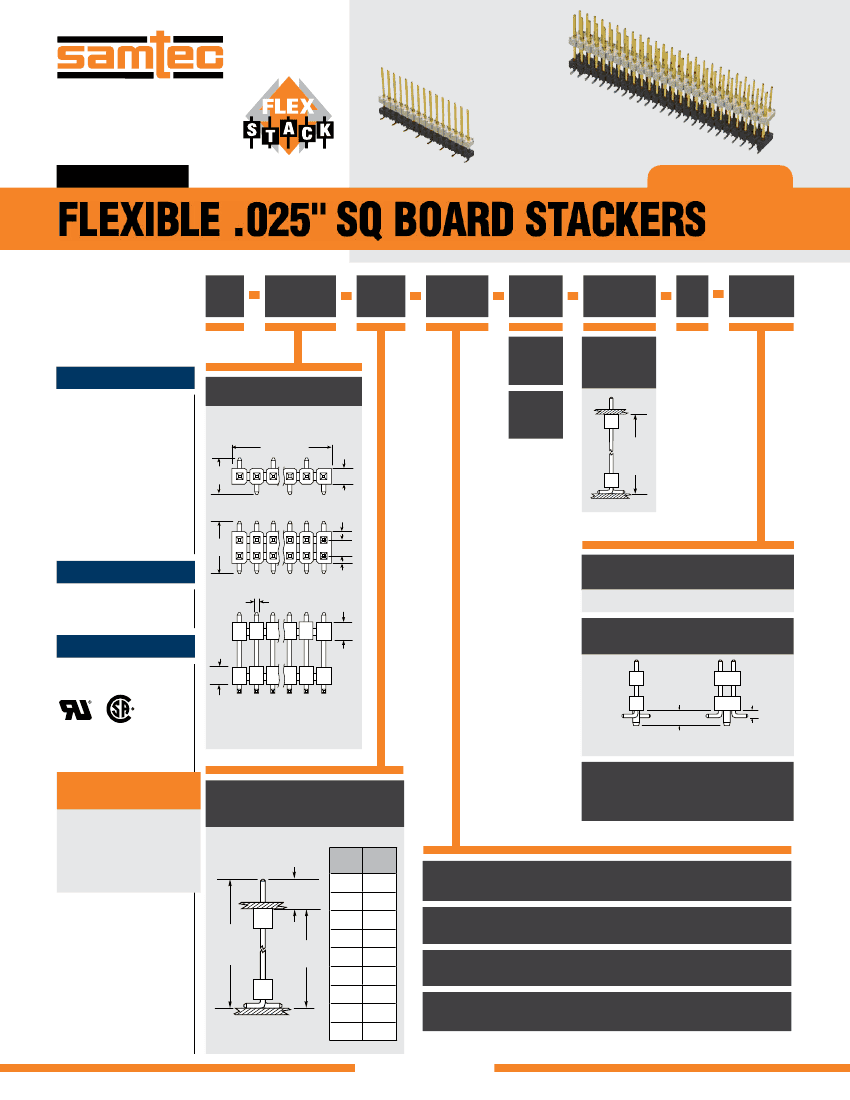

HW-SM SERIES
FLEXIBLE .025" SQ BOARD STACKERS
Board Mates:
SSW, SSQ, ESW, ESQ,
CES, SLW, BSW, BCS,
SSM, HLE, PHF
Cable Mates:
IDSS, IDSD, SMSD, SMSS
HW
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
STACKER
HEIGHT
SM
OTHER
OPTIONS
SPECIFICATIONS
For complete specifications
and recommended PCB layouts
see www.samtec.com?HW-SM
Insulator Material:
Top: Natural LCP
Bottom: Black LCP
Terminal Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
RoHS Compliant:
Yes
02 thru 36
36
(4.70)
.185
01
02
72
(2.54)
.100
01
(0.64) .025
SQ TYP
(2.54)
.100
71
(5.08)
.200
(2.54) .100 x
No. of Positions
(2.54)
.100
= Single
Row
–S
–“XXX”
= Stacker
Height
= Double
Row
STACKER
HEIGHT
(6.35)
.250
MIN
–D
(7.37)
.290
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.15 mm) .006" max
–‘‘XXX’’
= Polarized
Specify omitted pin position
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
(2.54)
.100
= Alignment Pin
–A
(1.27)
.050
FILE NO. E111594
FILE NO: 090871_0_000
(2.54)
.100
–S
–D
(Metal or plastic at Samtec discretion)
ALSO AVAILABLE
(MOQ Required)
• Other platings
• Locking Clip
(Manual placement
required) available with
double row –SM
Contact Samtec.
Specify LEAD STYLE
from chart
LEAD
OAL
STYLE
(SMT)
= Tape & Reel Packaging
(4–27 pins per row only)
(Not Available on Lead Styles 10, 11, 12 & 20)
–TR
POST
(0.00).000
MIN
OVERALL
LENGTH
– 08
– 09
–10
–11
(11.81)
.465
(16.89)
.665
(19.43)
.765
(21.97)
.865
(24.51)
.965
(14.35)
.565
(9.65)
.380
(10.54)
.415
(27.05)
1.065
= Gold flash on contact, Matte Tin on tail
–F
–L
= 10 µ" (0.25 µm) Gold on contact area of longer tail, Matte Tin on tail
Note:
For added mechanical
stability, Samtec recommends
mechanical board spacers be
used in applications with gold or
selective gold plated connectors.
Contact ipg@samtec.com for
more information.
Note:
This Series is
non-standard, non-returnable.
(OAL)
STACKER
HEIGHT
–12
–15
–16
–17
–20
= 10 µ" (0.25 µm) Gold on contact area of longer tail, Gold flash on balance
–G
–T
= Matte Tin
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
