SQT-127-01-F-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SQT-127-01-F-T

SQT-127-01-F-T: DescriptionBoard Connector, 81 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size833KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SQT-127-01-F-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SQT-127-01-F-T	-	-	View	Buy Now

SQT-127-01-F-T Overview

Board Connector, 81 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

SQT-127-01-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1667348257
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Samacsys Manufacturer	SAMTEC
Samacsys Modified On	2019-01-13 19:08:34
YTEOL	8.7
Other features	FLEXYZ, TIGER BUY CONTACT
body width	0.237 inch
subject depth	0.25 inch
body length	2.145 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.112 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SQT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5.1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	81
Evacuation force-minimum value	.834 N

Preview

Download Datasheet

View All

F-215

SQT–110–01–F–D–RA

SQT–107–02–L–S

SQT–110–03–F–Q

SQT–117–01–L–D

SQT–112–01–L–6

(2,00 mm) .0787"

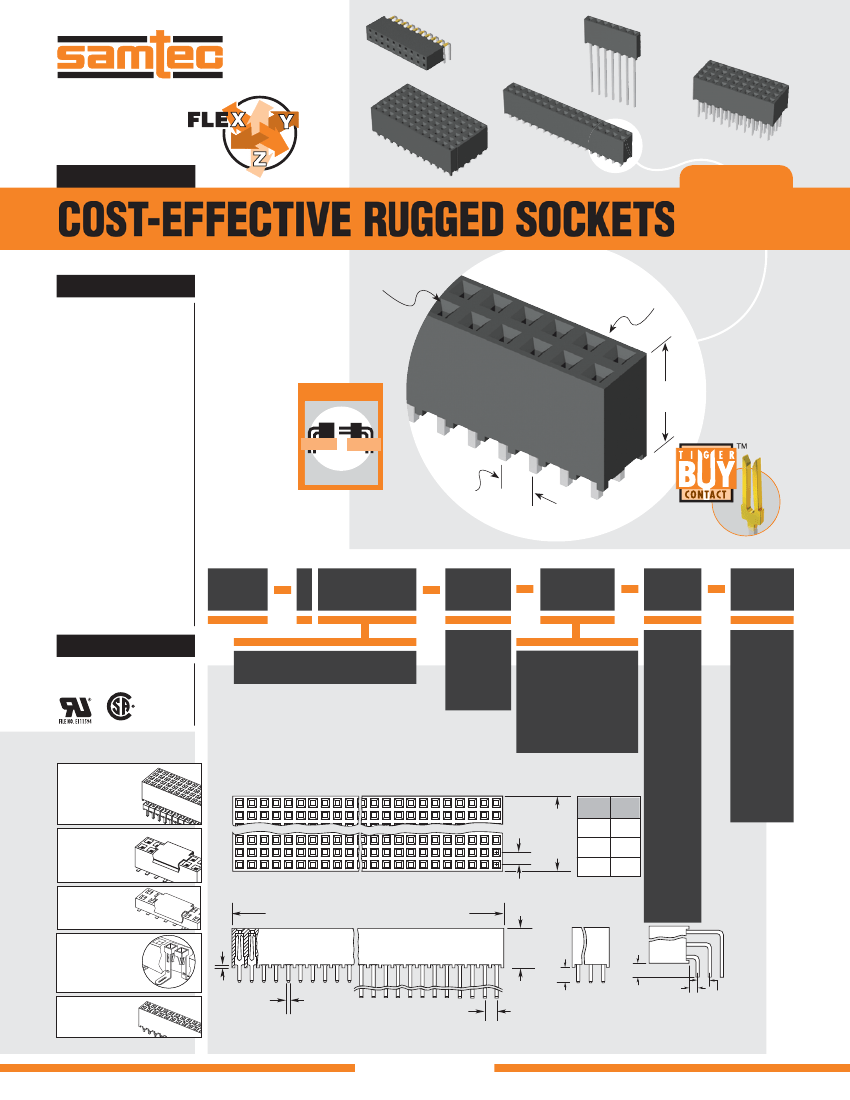

SQT SERIES

COST-EFFECTIVE RUGGED SOCKETS

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SQT

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ" (1,27 µm) Ni

Current Rating (TMMH/SQT):

5.1 A per pin

(1 pin powered per row)

Voltage Rating:

450 VAC mated with

TMM or TMMH

Operating Temp Range:

-55°C to +125°C

Contact Resistance:

10 mΩ

Insertion Depth:

(2,62 mm) .103" to

(5,03 mm) .198"

Insertion Force:

(Single contact only)

4 oz (1,11 N) average

Normal Force:

60 grams (0,59 N) average

Withdrawal Force:

(Single contact only)

3 oz (0,83 N) average

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

TMMH, TMM, MTMM,

MMT, TW, LTMM, ZLTMM,

ESQT, TCMD, PTT, TSH

Choice of one

through six rows

Vertical and

Right Angle

APPLICATIONS

TMM/

SQT TMMH

(6,35 mm)

.250"

HORIZONTAL

(2,00 mm)

.0787" pitch

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

SQT

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–S

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Single

Row

–RA

= Right

Angle

(–Q, –5 & –6

Row not

available)

(Lead Style

–01 only)

02 thru 50
