501844-2210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 501844-2210

501844-2210: Description2.00mm (.079") pitch microclasp wire-to-board header, dual row, vertical, 22 circuits; CategoryThe connector The connector; File Size376KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

501844-2210 Overview

2.00mm (.079") pitch microclasp wire-to-board header, dual row, vertical, 22 circuits

501844-2210 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Board mount options	PEG
body width	0.453 inch
subject depth	0.384 inch
body length	1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	501844
Plug contact pitch	0.079 inch
Match contact row spacing	0.197 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

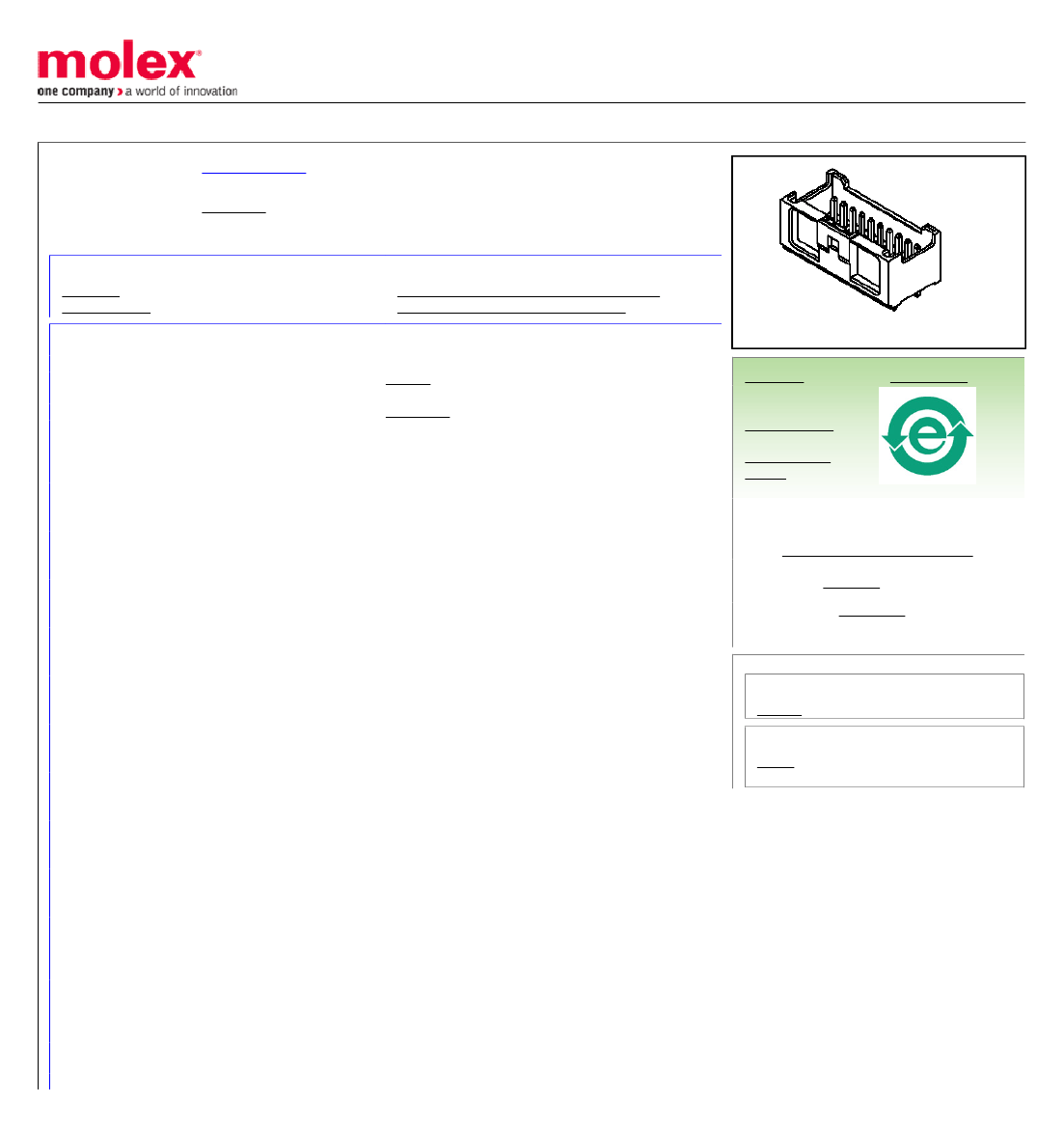

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5018442210

Active

microclasp

2.00mm (.079") Pitch MicroClasp™ Wire-to-Board Header, Dual Row, Vertical, 22

Circuits, with PCB Locator

Documents:

3D Model

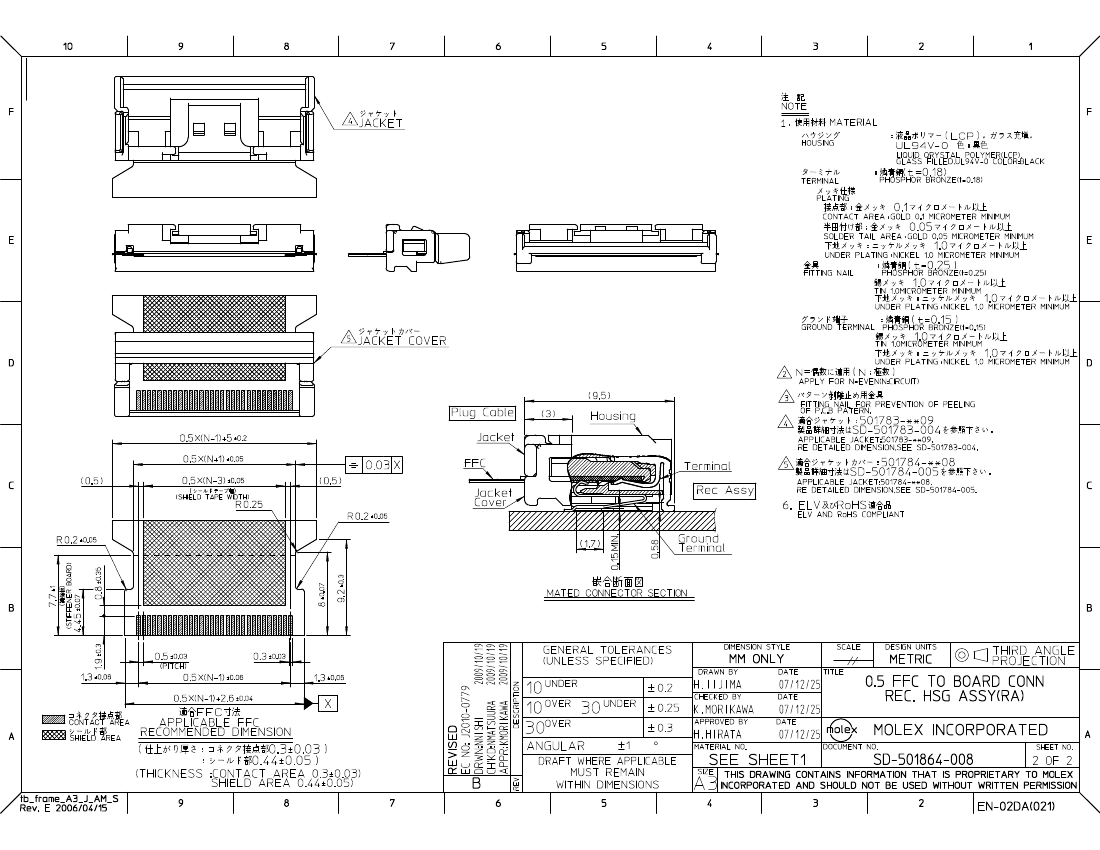

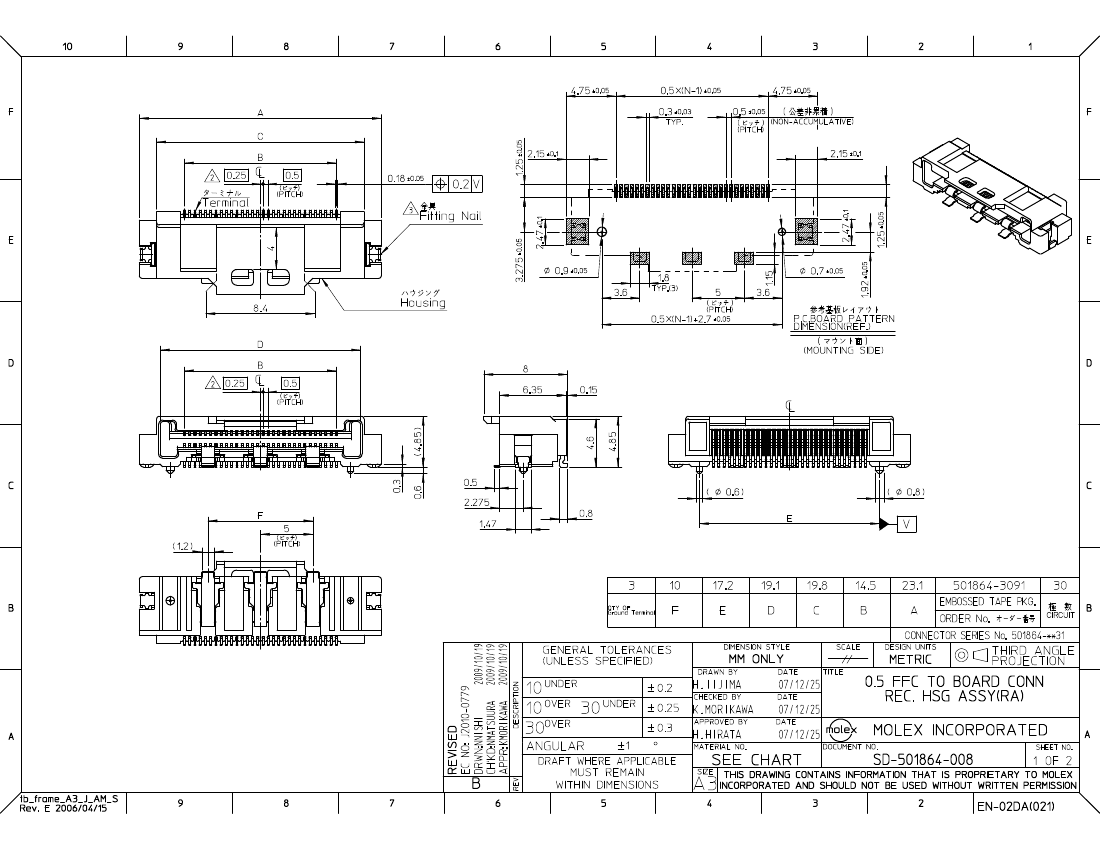

Drawing (PDF)

Product Specification PS-501844-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

501844

Wire-to-Board

microclasp

MicroClasp™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

None

Yes

Tin

Polyester

Vertical

0.126 In

3.20 mm

Yes

None

0.047 In

1.60 mm

Tray

0.079 In

2.00 mm

Yes

Fully

-25°C to +85°C

Through Hole

Search Parts in this Series

501844Series

Mates With

51353 MicroClasp™ Wire-to-Board

Receptacle Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

Reference - Drawing Numbers

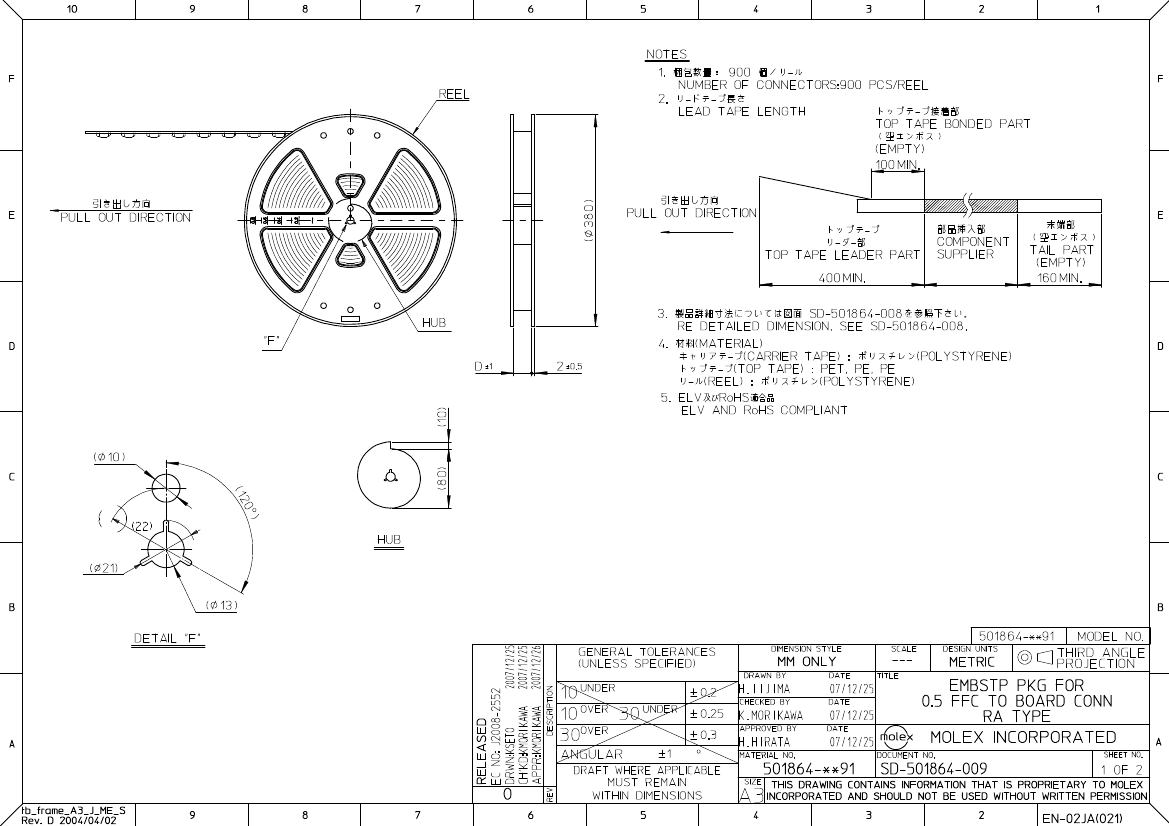

Packaging Specification

SPK-501844-001

501844-2210 Related Products

	501844-2210	5018442210
Description	2.00mm (.079") pitch microclasp wire-to-board header, dual row, vertical, 22 circuits	2.00mm (.079") pitch microclasp wire-to-board header, dual row, vertical, 22 circuits
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compli	compli
Board mount options	PEG	PEG
body width	0.453 inch	0.453 inch
subject depth	0.384 inch	0.384 inch
body length	1 inch	1 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	NOT SPECIFIED
Contact material	BRASS	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V	1400VAC V
Durability	30 Cycles	30 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.197 inch	0.197 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.0038 mm	5.0038 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch
Terminal pitch	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER
Total number of contacts	22	22
