50224-7312

Description
Terminal R 1.25-4 R 1.25-4
CategoryThe connector    terminals
File Size28KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

50224-7312 Overview

Terminal R 1.25-4 R 1.25-4

50224-7312 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Manufacturer's serial number50224
Terminal and terminal strip typesRING TERMINAL
Conductor cross section1.65 mm2
Wire gauge16 AWG
Base Number Matches1

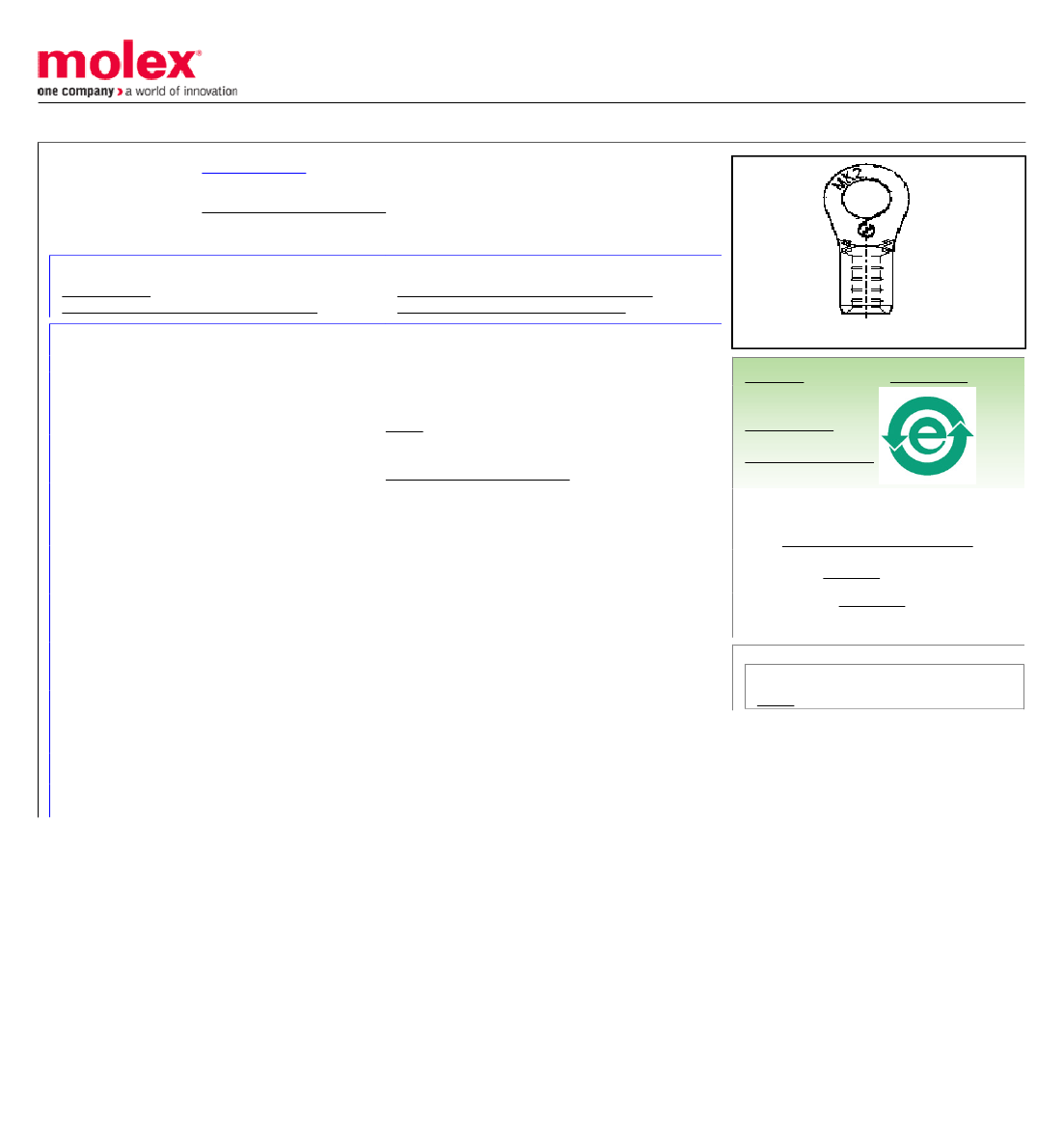

This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0502247312
Contact Molex
ring_tongue__spade_terminals
Ring Tongue Terminal for 16-22 AWG, Closed Uninsulated Brazed Barrel, Stud Size 8
(M4), Oxygen-Free Copper, Length 15.70mm (.618")
Documents:
Drawing (PDF)
Product Specification PS-50224-001 (PDF)
Product Specification PS-50224-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
E134962
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
UL
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Overview
Product Name
Type
Ring and Spade Terminals
50224
Yes
N/A
ring_tongue__spade_terminals
R (Ring)
Ring
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min - Mating
Plating min - Termination
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
1.016µm (40µ")
1.016µm (40µ")
8 (M4)
Crimp or Compression
16, 18, 20, 22
0.25 - 1.65
Search Parts in this Series
50224Series
Material Info
Country of Origin
HK, JP, KR
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-50224-001, PS-50224-002
SD-50224-001
This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
