54944-3673

Description
I/O connector.5mm 36p RA recpt smt T-hole shell tab
CategoryThe connector    The connector
File Size28KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54944-3673 Online Shopping

Suppliers Part Number Price MOQ In stock
54944-3673 - - View Buy Now

54944-3673 Overview

I/O connector.5mm 36p RA recpt smt T-hole shell tab

54944-3673 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED PLASTIC
MIL complianceNO
Manufacturer's serial number54944
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceGOLD
Shell materialSTAINLESS STEEL
Termination typeSURFACE MOUNT
Total number of contacts36
UL Flammability Code94V-0

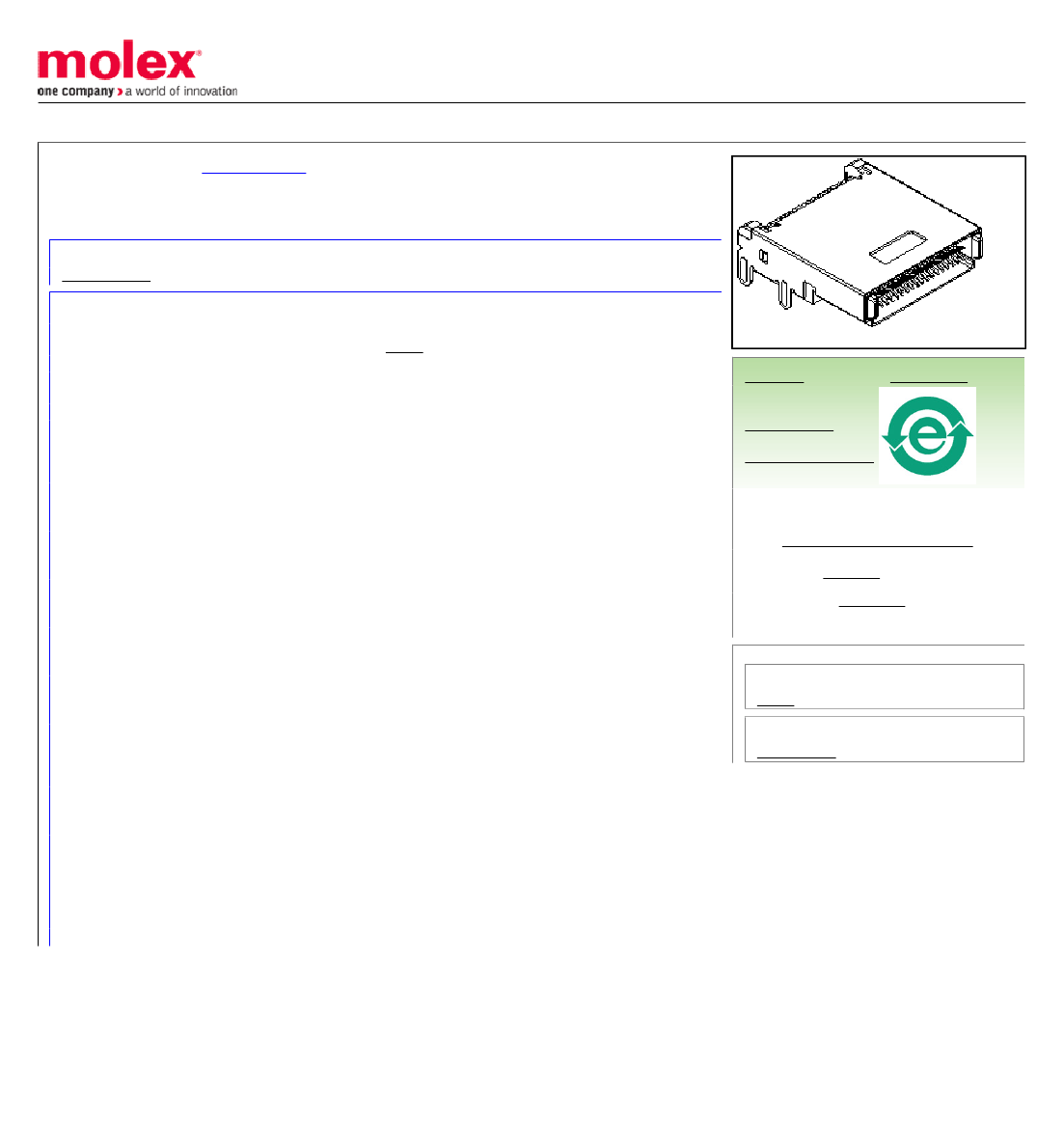

This document was generated on 11/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0549443673
Obsolete
0.50mm (.020") Pitch Cradlecon™ I/O Receptacle, SMT, Right Angle, Through Hole
Shell Tabs, 36 Circuits
Documents:
Drawing (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
I/O Connectors
54944
Board-to-Board
Receptacle
CradleCon™
N/A
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
36
36
Black
Yes
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
Right Angle
Yes
0.80mm (.031"), 1.00mm (.039")
Embossed Tape on Reel
No
0.50mm (.020")
0.203µm (8µ")
2.032µm (80µ")
Yes
-20°C to +60°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54944Series
Mates With
501231-3674
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
0.5A
Full Shield
Yes
30V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-54944-029
SD-54944-027, SD-54944-028
This document was generated on 11/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
