0190080001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 0190080001

0190080001: Descriptionflag krimptite? quick disconnect, female, for 18-22 (0.80-0.35) wire, box, tab4.75mm (.187") x 0.51mm (.020"); CategoryThe connector terminals; File Size103KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0190080001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0190080001	-	-	View	Buy Now

0190080001 Overview

flag krimptite? quick disconnect, female, for 18-22 (0.80-0.35) wire, box, tab4.75mm (.187") x 0.51mm (.020")

0190080001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Is Samacsys	N
Terminal and terminal strip types	PUSH-ON TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0190080001

Active

Flag Krimptite™ Quick Disconnect, Female, for 18-22 (0.80-0.35) Wire, Box, Tab

4.75mm (.187") x 0.51mm (.020")

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E79133

image - Reference only

Series

General

Product Family

Series

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

19008

Yes

Krimptite™

Quick Disconnect

Physical

Barrel Type

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Orientation

Packaging Type

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Closed

Female

None

Brass

Flag

Bag

0.51mm (.020")

4.75mm (.187")

Per Wire Specification

18, 20, 22

0.35 - 0.80

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

19008Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0640034200

Electrical

Voltage - Maximum

Per Wire Specification

Material Info

Old Part Number

AA-1147

Reference - Drawing Numbers

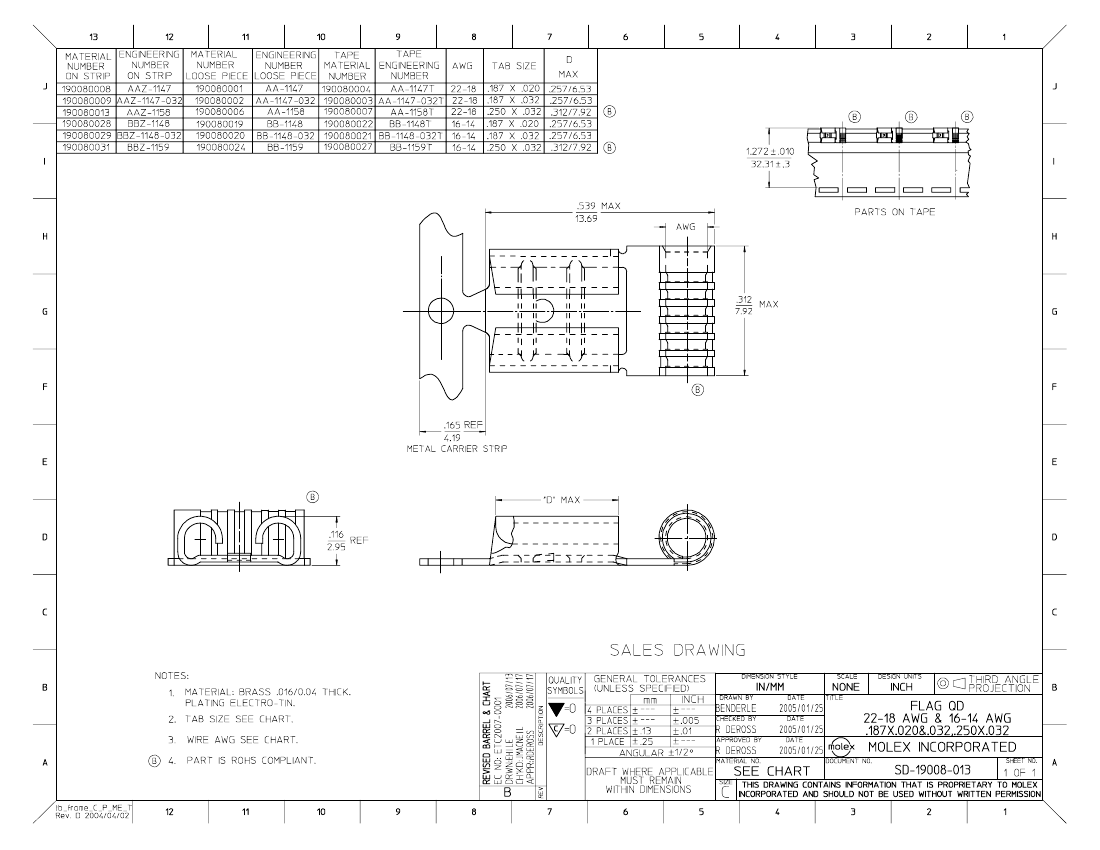

Sales Drawing

SD-19008-013

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0190080001 Related Products

	0190080001	190080001	AA-1147
Description	flag krimptite? quick disconnect, female, for 18-22 (0.80-0.35) wire, box, tab4.75mm (.187") x 0.51mm (.020")	BRASS, TIN FINISH, PUSH-ON TERMINAL	BRASS, TIN FINISH, PUSH-ON TERMINAL
Maker	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	unknow
Terminal and terminal strip types	PUSH-ON TERMINAL	PUSH-ON TERMINAL	PUSH-ON TERMINAL
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
Is Samacsys	N	N	-
ECCN code	-	EAR99	EAR99
Manufacturer's serial number	-	19008	AA-11
terminal gender	-	FEMALE	FEMALE
Wire gauge	-	18 AWG	18 AWG
