0554013419 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0554013419

0554013419: Description2.54mm (.100") pitch QF-50? flat ribbon cable header, dual row, verticalshrouded header with eject levers, 34 circuits, lead-free; CategoryThe connector The connector; File Size161KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0554013419 Overview

2.54mm (.100") pitch QF-50? flat ribbon cable header, dual row, verticalshrouded header with eject levers, 34 circuits, lead-free

0554013419 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	55401
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0554013419

Contact Molex

qf50

2.54mm (.100") Pitch QF-50™ Flat Ribbon Cable Header, Dual Row, Vertical,

Shrouded Header with Eject Levers, 34 Circuits, Lead-free

Documents:

3D Model

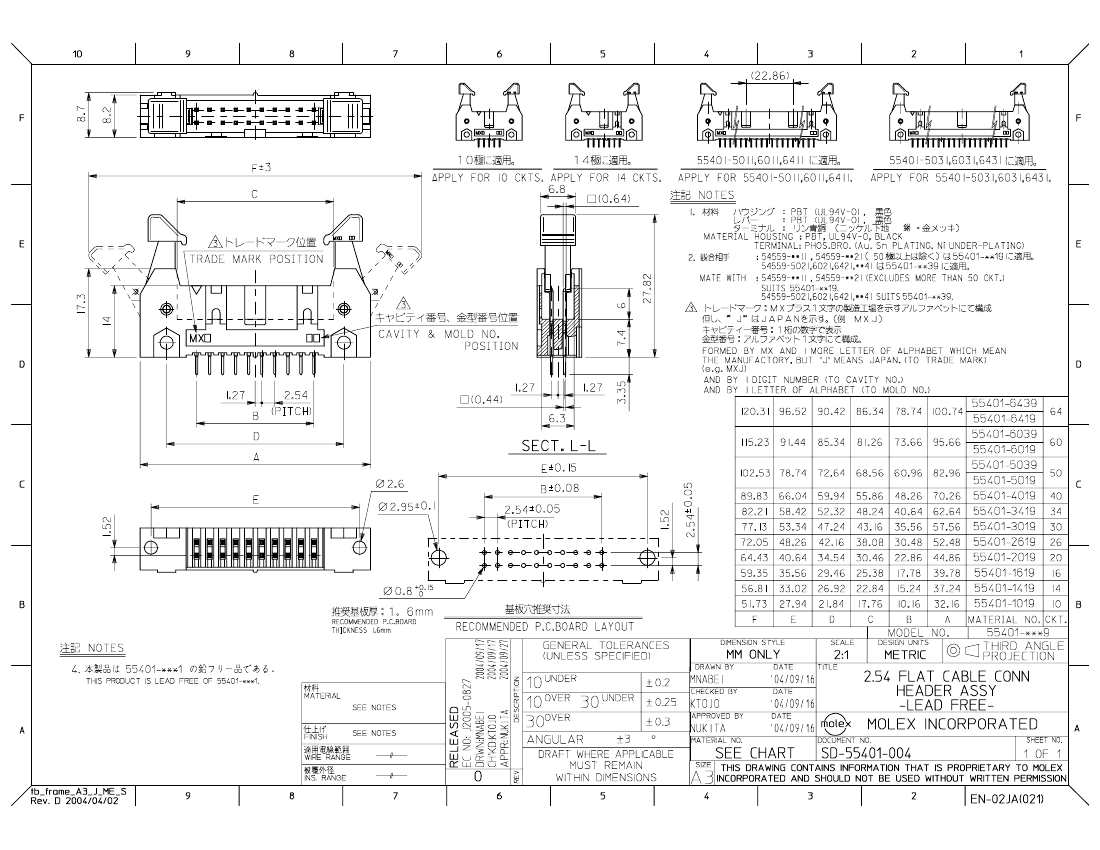

Drawing (PDF)

Product Specification PS-54559-005 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

55401

Wire-to-Board

qf50

QF-50™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

500

None

Yes

Brass

Gold

Tin

Polyester

Vertical

Yes

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.3

101.6

2.54

Yes

Fully

-40°C to +85°C

Through Hole

Search Parts in this Series

55401Series

Mates With

54559 QF-50™ Flat Cable Receptacle

Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

300V

0554013419 Related Products

	0554013419	55401-3419
Description	2.54mm (.100") pitch QF-50? flat ribbon cable header, dual row, verticalshrouded header with eject levers, 34 circuits, lead-free	2.54mm (.100") pitch QF-50? flat ribbon cable header, dual row, verticalshrouded header with eject levers, 34 circuits, lead-free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	POLARIZED, SHROUDED	ROHS AND ELV COMPLIANT
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	AU ON NI
Contact completed and terminated	TIN	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	BRASS	PHOSPHOR BRONZE
Manufacturer's serial number	55401	55401
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	34	34
Base Number Matches	1	1
