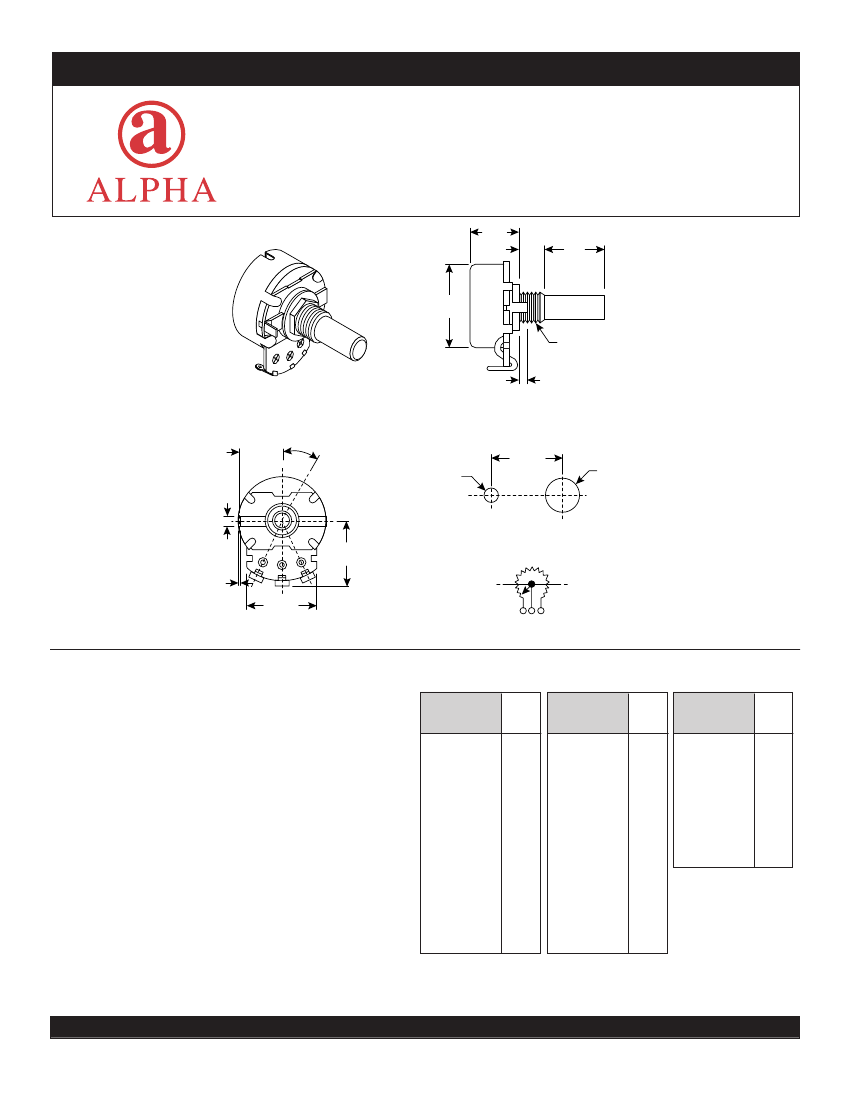

Date:
08/07/08
Ref.#:
TW-700187
Potentiometer
31VA Series
31VC Series
31VJ Series
.453
.256
*
ø.945
M8 x .75mm
Dimensions (In.)
(except where noted)
.472
30°
.098
.472
ø.118
ø.323
.110
Mounting Holes
.740
.047
.787
Shaft Shown in
Full C.C.W. Position
12 3
Specifications:
•
Resistance tolerance: ±20%
•
Taper: linear(31VA series, 31VC series),
MOUSER
Value
audio(31VJ series)
STOCK NO.
(Ω)
•
Maximum working voltage: 500V(linear taper)
31VA301-F 1K
250V(audio taper)
31VA302-F 2K
•
Power Dissipation: .5W(linear taper)
31VA303-F 2.5K
.25W(audio taper)
31VA305-F 5K
•
Insulation resistance: > 100MΩ @ 500VDC
31VA401-F 10K
•
Minimum resistance: if total R < 2K then ≤ 20Ω
31VA403-F 25K
if total R > 2K then ≤ 100Ω
31VA405-F 50K
if total R > 1m then ≤ 200Ω
31VA501-F 100K
•
Rotation life: 15,000 cycles
31VA503-F 250K
•
Resistive element: carbon composition
31VA505-F 500K
•
Electrical rotation angle: 285° ± 5°
31VA601-F 1M
•
Rotation angle: 300° ± 5°
31VA602-F 2M
•
Rotation torque: 20~200 gf.cm
31VA605-F 5M
•
Shaft stop strength: > 6Kgf.cm/min
•
Terminals: solder lugs
•
Shaft length*: .335"(31VA series, 31VJ series), 1.32"(31VC series)
•
RoHS Compliant
MOUSER
Value
MOUSER
Value
STOCK NO.
(Ω)
STOCK NO.
(Ω)
31VC205-F
31VC301-F
31VC302-F
31VC303-F
31VC305-F
31VC401-F
31VC403-F
31VC405-F
31VC501-F
31VC503-F
31VC505-F
31VC601-F
31VC605-F
500
1K
2K
2.5K
5K
10K
25K
50K
100K
250K
500K
1M
5M
31VJ301-F
31VJ305-F
31VJ401-F
31VJ405-F
31VJ501-F
31VJ503-F
31VJ505-F
31VJ601-F
1K
5K
10K
50K
100K
250K
500K
1M
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
