8STA Through Bulkhead
Features & Benefits
•

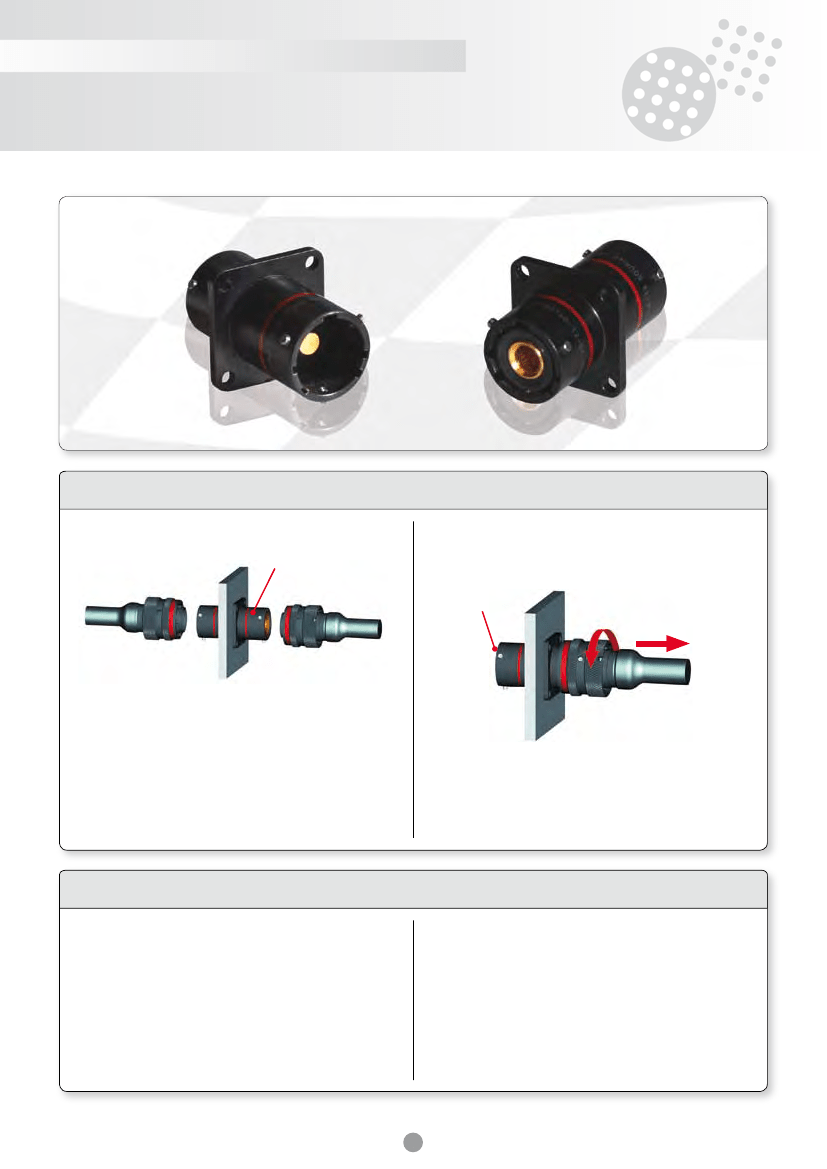

Easy mating/unmating on both sides of the bulkhead
Through Bulkhead
•
Simplified connection through a bulkhead, eliminating hard
wiring to the panel on one side
•
Simplifies maintenance procedures having a detachable
connector on each side of the bulkhead
Through Bulkhead
A
B
•
Significant time saving advantage over conventional plugs
& receptacles
- «Double receptacle» mounted on panel
•
The smallest single way power through bulkhead connec-
tor on the market
- Male / female single way power contact #4 in a shell size 1
2
•
Easy identification with colour coded bands
- 5 visual keyway orientations
•
Ideal for external use (dust, water etc.)
- IP67 (Interfacial & mating seals)
•
RoHS compliant
- Respect for environment
Technical characteristics
Mechanical
• Shell
• Shell plating
• Insulator
• Grommet & seal
• Contact
• Contact plating
• Endurance
• Shock resistance
• Vibration resistance
• Contact retention
Aluminium alloy
Conductive black zinc
Thermoplastic
Liquid silicone rubber
Copper alloy
Gold over nickel
500 matings/unmatings
300 g for 3 ms and EIA-364-27
1 m/s2, 10 to 2000 Hz
47
200 N
Electrical
• Test voltage
• Contact resistance
• Insulation resistance
• Contact rating
1
300 Vrms (sea level)
2 mΩ
≥
5000 MΩ
(at
500 Vdc)
1 A (continuous)
25
Climatic
• Temperature range
• Sealing mated connectors
• Salt spray
-55°C to +1
75°C
IP67
(1 metre for 30 min. minimum)
48 hours
8STA Through Bulkhead
How to order
Basic series
Shell style
Shell size
Layout
0:
Receptacle
1
2
01 (1 power contact #4)
8STA
0
1
2
01
PS
N
500
Type of contact P S:
Pin + Socket contacts
Orientation
Specification*
N:
Red /
A:
Yellow /
B:
Blue /
C:
Orange /
D:
Green /
U:
Universal
500:
Through Bulkhead connector
* Mandatory / Please consult us for other sizes & layouts

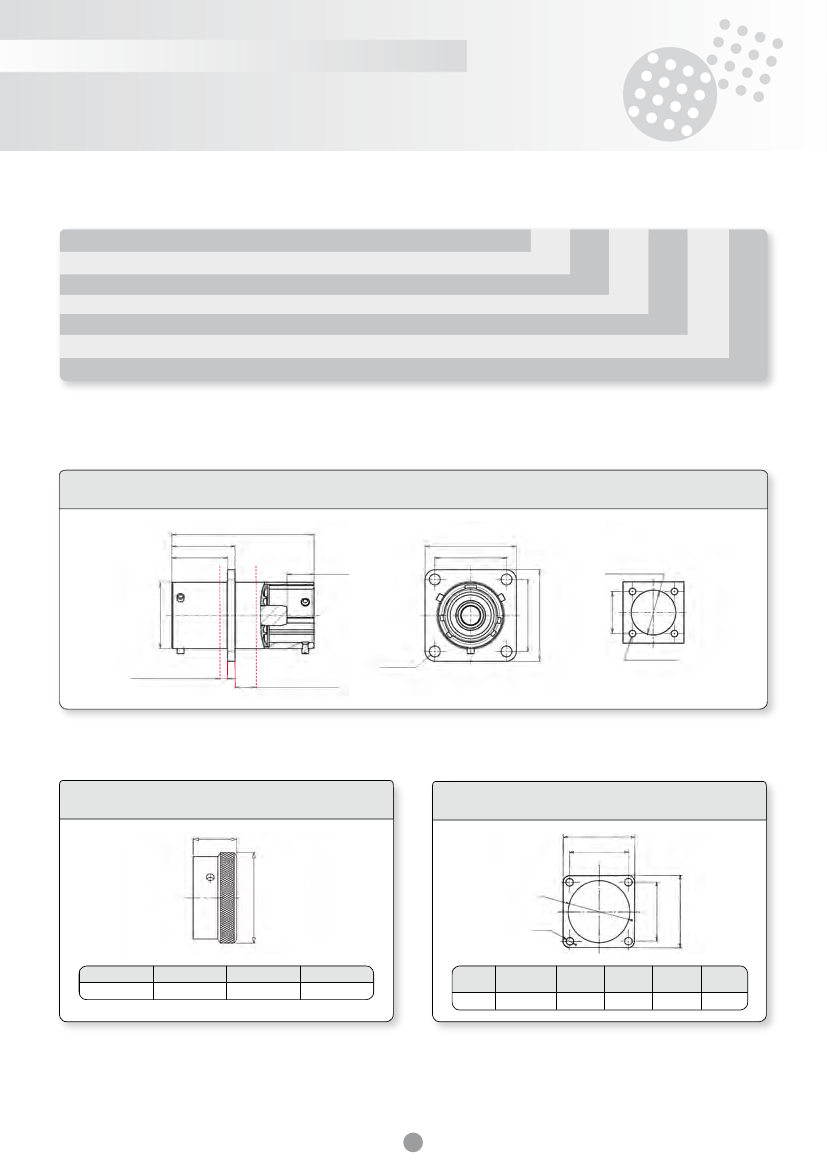

Range presentation
Through Bulkhead receptacle
41 max
18.21
+0.13
-0
0
16.05
+0.13
7.25/8.1
5
26.19
±0.4
20.6
±0.13
PANEL CUT OUT
Ø21.9
±0.1
19.05
+0 3
-0.1
20.6
±0.13
26.19
±0.4
□
20.6
Ø3.25
±0.13
Female side
Panel thickness 2.2 max
Male side
Panel thickness 6.0 max
Ø3.1
+0.1
4
0
Accessories
Metal protective cap
B
Gasket
A
±0.40
B
±0.12
ØA max.
ØC
+0.40
0
4 holes
ØD
+0.12
0
ØA
±0.40
ØC
19.05
ØB
±0.12
A
26.18
B
20.62
Shell size
1
2
Part number
8STA91
2
Ø A max.
26.10
B max.
1
4.20
Shell
size
1
2
Part number
8525-1
433
ØD
3.30
Note : all dimensions are in mm
