35802-1589: Description1.00mm (.039") pitch ffc/fpc connector, vertical, non-zif, kinked PC tails, 15 circuits; CategoryThe connector The connector; File Size312KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35802-1589 Overview

1.00mm (.039") pitch ffc/fpc connector, vertical, non-zif, kinked PC tails, 15 circuits

35802-1589 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (32)
Contact completed and terminated	TIN (32)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

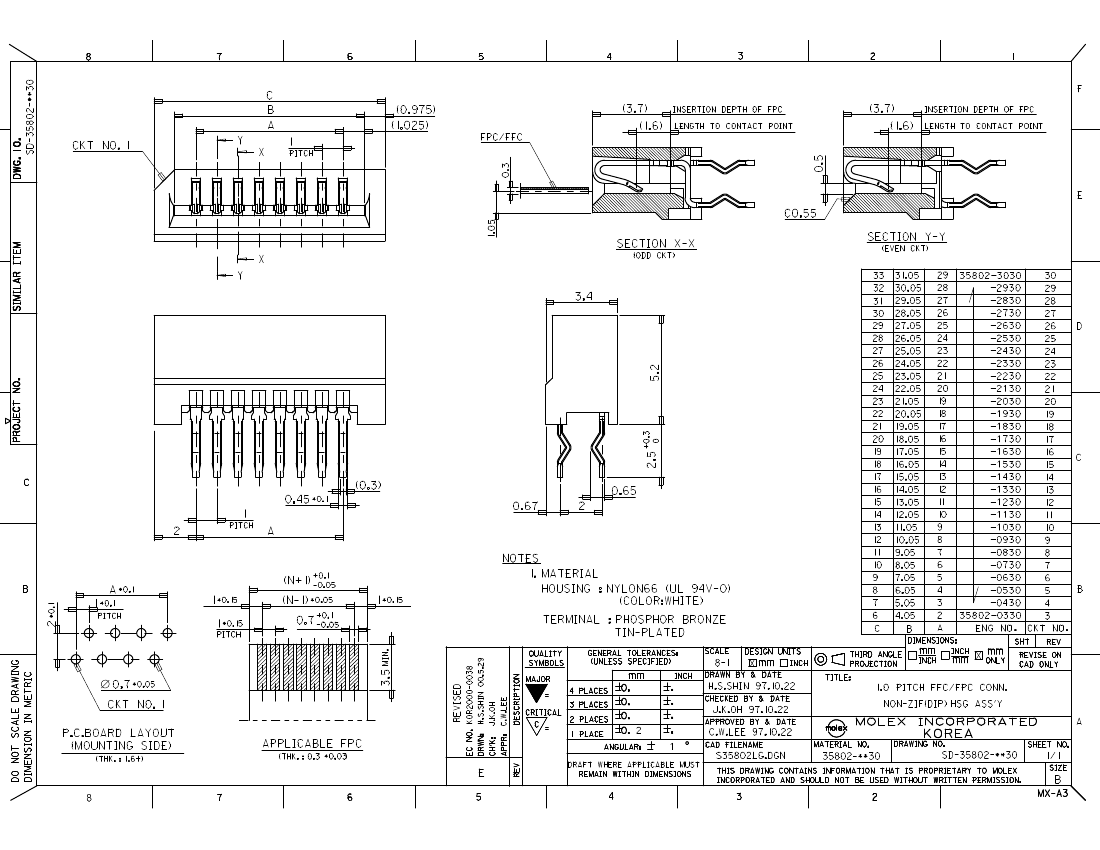

Preview

Download Datasheet

View All

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0358021589

Active

1.00mm (.039") Pitch FFC/FPC Connector, Vertical, Non-ZIF, Kinked PC Tails, 15

Circuits

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

Overview

Product Name

FFC/FPC Connectors

35802

Use Pre-Notched

ffc_fpc_throughhole

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Contact Position

Entry Angle

Flammability

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Natural

Top

Vertical

94V-0

0.205 In

5.20 mm

Phosphor Bronze

Tin

Nylon

Vertical

0.098 In

2.50 mm

None

0.063 In

1.60 mm

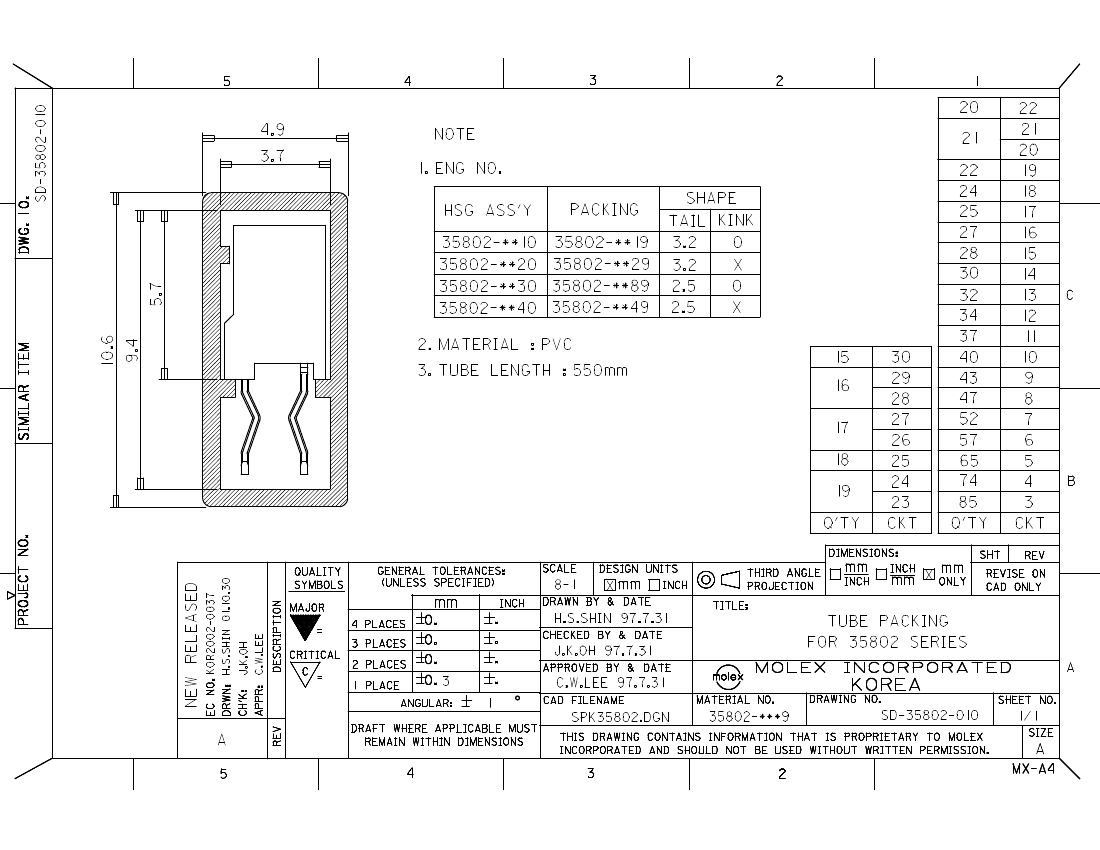

Tube

0.039 In

1.00 mm

0.039 In

1.00 mm

32.00

0.800

32.00

0.80

Yes

-20°C to +80°C

Through Hole - Kinked Pin

FFC/FPC

Search Parts in this Series

35802Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.2A, 0.4A, 0.5A

50V AC (RMS)/DC
