INTEGRATED CONNECTOR MODULES
Gigabit belStick™ with LEDs
•
Four port shielded RJ-45 connector with integrated
Gigabit Ethernet magnetics
Compatible with a variety of Gigabit Ethernet
transceiver ICs and 10/100Base-TX transceiver ICs
Operating temperature 0° to +70° C
•
•
Storage temperature -40° to +85° C
Adaptable, modular design provides higher reliability
•
BM02830
Complies with IEEE 802.3ab standards and all Gigabit
Ethernet specifications
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
•
•
•
•
ELECTRICAL SPECIFICATIONS AT 25° C
Insertion Loss
dB max
Return Loss
dB min
Common to
Differential Mode
Rejection
dB min
100KHz to 100MHz
Common to
Common Mode
Rejection
dB min
100KHz to 100MHz
-33 + 20 log
(f/100MHz)
Crosstalk
dB min
Hipot
Vrms min
0.1MHz
to 100MHz
-0.8
100MHz to
125MHz
-1.2
0.5MHz
to 40MHz
-18
40MHz
to 100MHz
-12 + 20 log
(f/80 MHz)
-35
-30
1500
SCHEMATIC
13
LED 1
14
11
12
10
4
6
5
3
1
2
8
7
9
15
LED 2
16
Shield
See chart on page 2 for LED colors and polarity.
©2003 Bel Fuse Inc.
Specifications subject to change without notice. 05.03
0826-1A4T-23
0826-1B4T-23
0826-1C4T-23
0826-1D4T-23
0826-1E4T-23
0826-1G4T-23
0826-1K4T-23
0826-1L4T-23
0826-1X4T-23
0826-1Y4T-23
1CT : 1CT
RJ45
1
2
1CT : 1CT
3
6
1CT : 1CT
4
5
1CT : 1CT
7
8
75Ω
x4
1000pF
2kV
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 1
INTEGRATED CONNECTOR MODULES
BM02830
Gigabit belStick™ with LEDs
LED COLORS AND POLARITY
LED 1
Part Number
Color
Pin 13
0826-1A4T-23
0826-1B4T-23
Bi-color
Orange
Green
0826-1C4T-23
0826-1D4T-23
0826-1E4T-23
0826-1G4T-23
0826-1K4T-23
Bi-color
Yellow
Green
Green
Green
Green
+
-
-
-
-
-
+
+
+
+
Bi-color
Yellow
Green
0826-1L4T-23
Bi-color
Yellow
0826-1X4T-23
0826-1Y4T-23
Yellow
Yellow
+
-
-
-
Green
+
+
Bi-color
Orange
Yellow
+
-
-
+
-
+
-
+
Green
-
+
+
-
Bi-color
Orange
Green
Green
+
-
-
-
+
+
+
-
-
+
Bi-color
Yellow
Yellow
Green
+
-
-
-
+
+
Yellow
Green
-
-
Pin 14
+
+
Bi-color
Orange
Green
+
-
-
+
Green
Green
Polarity
Color
Pin 15
-
-
Pin 16
+
+
LED 2
Polarity
©2003 Bel Fuse Inc.
Specifications subject to change without notice. 05.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 2
INTEGRATED CONNECTOR MODULES
Gigabit belStick™ with LEDs
BM02830

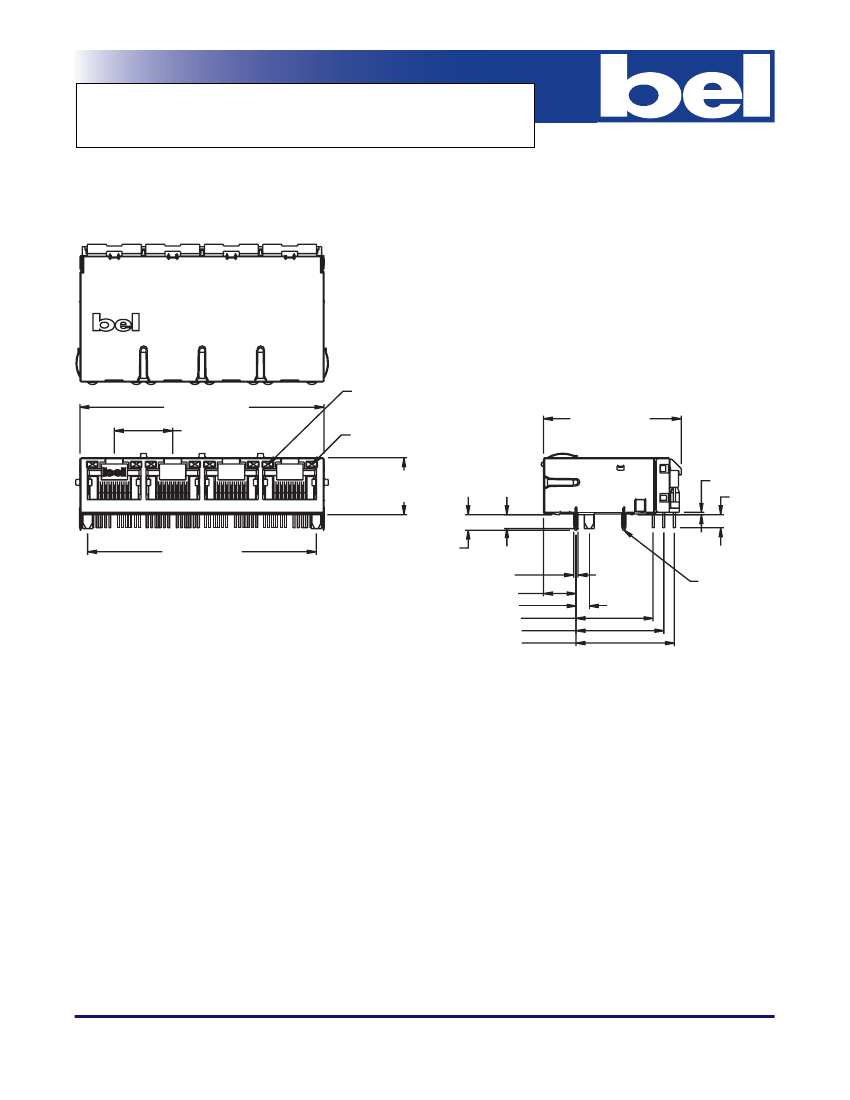

MECHANICAL
0826-1A4T-23
0826-1B4T-23
0826-1C4T-23
0826-1D4T-23
0826-1E4T-23
0826-1G4T-23
0826-1K4T-23
0826-1L4T-23
0826-1X4T-23
0826-1Y4T-23
LED 2
2.292 [58.22]
0.550 [13.97]
port pitch
1.300 [33.02]
LED1
0.130
[3.30]
0.145
[3.68]
0.040 ±0.005
[1.02 ±0.13]
0.305 [7.75]
0.125 [3.18]
0.725 [18.42]
0.825 [20.96]
0.925 [23.50]
0.020
[0.51]
0.125
[3.17]
0.535
[13.59]
2.150 [54.61]
Solder dipped
ground lead
4x
Dimensions are in inches [millimeters].
Standard dimension tolerance is ±0.010 [0.25]
unless otherwise noted.
Notes
Plastic Housing
Contacts
Pins
Solderability
Metal Shield
Thermoplastic, flammability rating UL 94V-0
50 micro-inch hard gold plating
Tin-coated copper wire, DIA 0.018" [0.46]
Per MIL Std. 202, Method 208
Nickel plated copper alloy
©2003 Bel Fuse Inc.
Specifications subject to change without notice. 05.03
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 3
INTEGRATED CONNECTOR MODULES
BM02830
Gigabit belStick™ with LEDs
PAD LAYOUT
0826-1A4T-23
0826-1B4T-23
0826-1C4T-23
0826-1D4T-23
0826-1E4T-23
0826-1G4T-23
0826-1K4T-23
0826-1L4T-23
0826-1X4T-23
0826-1Y4T-23
2.285 [58.04]
2.150 [54.61]
0.067 [1.71]
0.125
[3.17]
0.550
[13.97]
pitch
4x ø0.062 [ø1.57]
2x ø0.128 [ø3.25]
0.825
0.925 [20.95] 0.725
[23.49]
[18.41]
0.450
[11.43]
0.050
[1.27]
0.080 [2.03] typ
1 2 3 4 5 6
7 8 9
10 11 12
15 16
0.100 [2.54]
0.040 [1.02]
13 14
0.040 [1.02] typ
Suggested PCB Pad Layout
Component Side View
64x ø0.035 [ø0.89]
Packing Quantity
20 pieces finished goods per tray
8 trays per carton box for a total of
160 pieces of finished goods
2.350 [59.69]
0.080
[2.03]
0.566
[14.38]
Suggested Panel Opening
©2003 Bel Fuse Inc.
Specifications subject to change without notice. 05.03
CORPORATE
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
