This document was generated on 04/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:

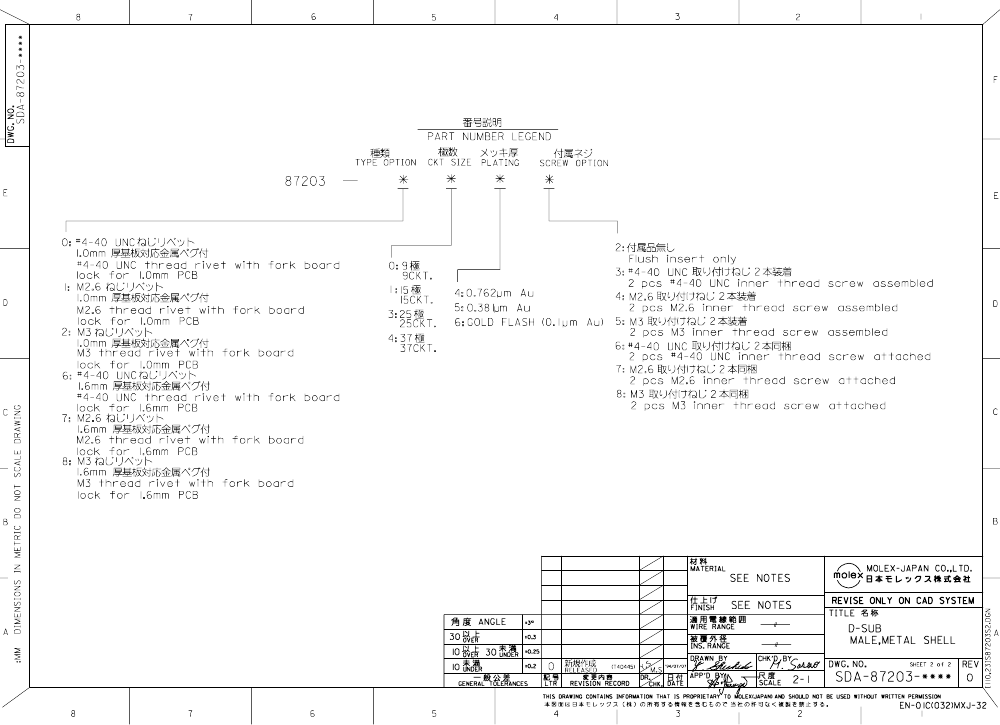

Drawing (PDF)
0872038042
Active
D-Subminiature Shielded I/O PCB Male Plug, Right Angle, Through Hole, 9 Circuits,
Screw Hole, Threaded, Gold (Au) 0.76µm (30µ")
NO REPLACEMENT PART AVAILABLE
RoHS Certificate of Compliance (PDF)
Series

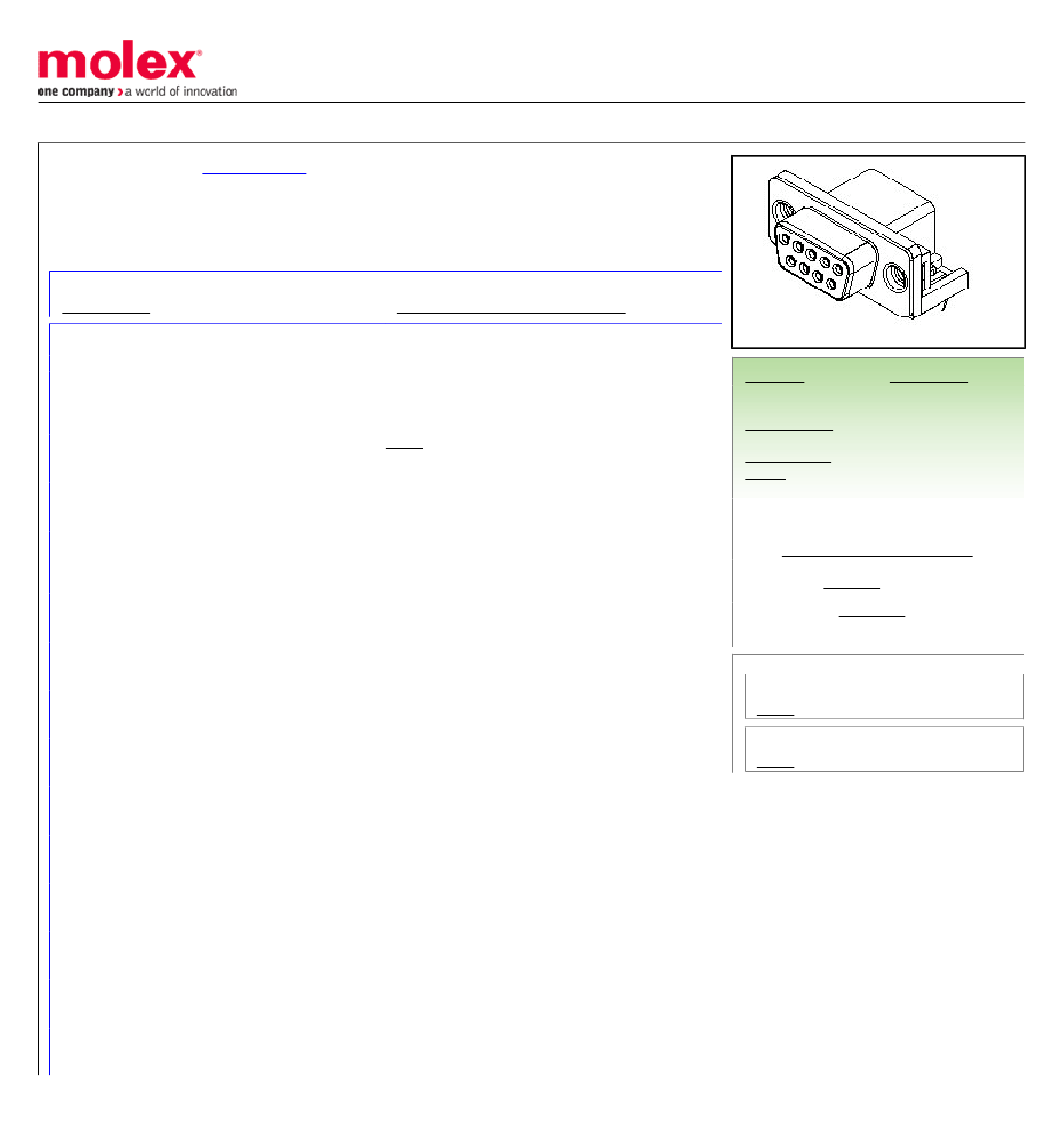

image - Reference only
LR19980
E29179
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Component Type
Obsolete Date
Product Name
Replacement Part Number
Type
I/O Connectors
87203
Wire-to-Board
Shell: Steel
Plug
2006/07/01
D-Sub, DB9
NO REPLACEMENT PART AVAILABLE
N/A
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Flammability
Gender
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
9
9
94V-0
Male
Yes
Gold
2
Right Angle
0.125 In
3.18 mm
Yes
Yes
Tray
Yes
0.054 In
1.38 mm
0.054 In
1.38 mm
30
0.76
Yes
Yes
1
No
Through Hole
No
N/A
Search Parts in this Series
87203Series
Mates With
87204
Electrical
