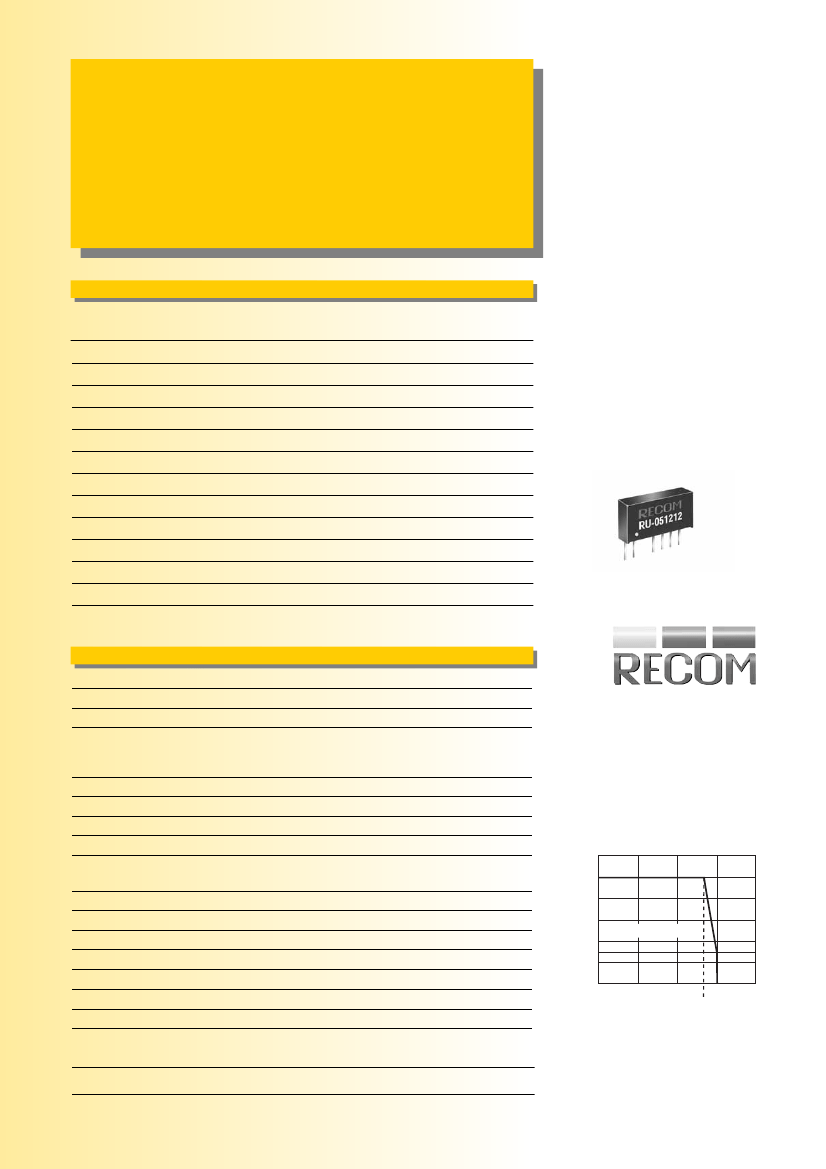

RU-091212: Description1 watt sip7 isolated dual output; File Size93KB，3 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet View All

RU-091212 Overview

1 watt sip7 isolated dual output

Preview

Download Datasheet

View All

Features

Unregulated

Converters

●

Twin Independent Outputs

Output/Output Isolation 1kVDC

Power Sharing on Outputs

Input/Output Isolation 1kVDC

No Heatsink Required

UL94V-0 Package Material

Toroidal Magnetics

No Extern. Components Required

Custom Solutions Available

Efficiency to 84%

ECONOLINE

DC/DC-Converter

RU

Series

Selection Guide

Part

Number

SIP 7

RU-xx1.81.8

RU-xx3.33.3

RU-xx053.3

RU-xx0505

RU-xx0509

RU-xx0512

RU-xx0515

RU-xx0909

RU-xx1212

RU-xx1515

RU-xx2424

xx = Input Voltage

Input

Voltage

(VDC)

1.8, 3.3, 5, 9, 12, 24

Output

Voltage

(V1VDC)

1.8

3.3

5

9

12

15

24

Output

Voltage

(V2VDC)

1.8

3.3

5

9

12

15

9

12

15

24

Output

Current

(mA)

278/278

152/152

100/152

100/100

100/55

100/42

100/33

55/55

42/42

33/33

21/21

Efficiency

(%)

70

70-78

75

78

75-80

78-80

80-82

80-84

1 Watt

SIP7

Isolated

Dual Output

Specifications

(Core Operating Area)

Input Voltage Range

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load)

Output Ripple and Noise (20MHz limited)

Operating Frequency

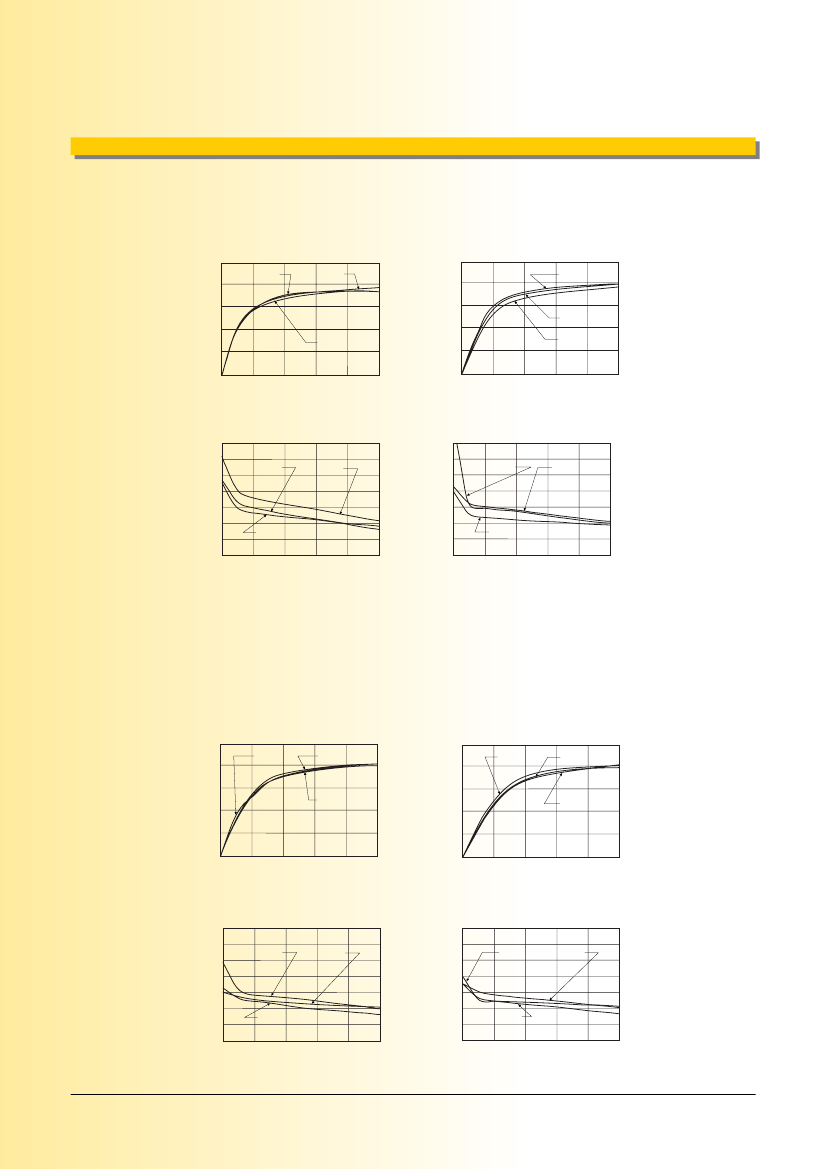

Efficiency at Full Load

No Load Power Consumption

Isolation Voltage

Rated Working Voltage

Isolation Capacitance

Isolation Resistance

Short Circuit Protection

Operating Temperature Range (free air convection)

Storage Temperature Range

Relative Humidity

Package Weight

MTBF (+25°C)

(+85°C)

1)

±10%

±5%

1.2%/1% of Vin max.

1.8V, 3.3V output types

5V output type

9V, 12V, 15V, 24V output types

20% max.

15% max.

10% max.

75mVp-p max.

50kHz min. / 100kHz typ. / 105kHz max.

70% min. / 80% typ.

87mW min. / 130mW typ. / 190mW max.

(tested for 1 second)

(long term isolation)

1.000VDC min.

see Application Notes

20pF min. / 94pF max.

Output Power (%)

100

80

60

40

30

20

0

Derating-Graph

(Ambient Temperature)

10 GΩ min.

1 Second

-40°C to +85°C (see Graph)

-55°C to +125°C

MSL Level 1

95% RH

2.7g

1012 x 10

3

hours

151 x 10

3

hours

Safe Operating Area

85

Operating Temperature °C

-40

0

50

100

150

}

using MIL-HDBK 217F

Detailed Information see

Application Notes chapter "MTBF"

using MIL-HDBK 217F

Input/Output and Output V1/Output V2

46

April-2005

www.recom-international.com
