5096-05C

Description
7.92mm (.312") pitch spox? header, vertical, with friction lock, 5 circuits
CategoryThe connector    The connector
File Size98KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5096-05C Overview

7.92mm (.312") pitch spox? header, vertical, with friction lock, 5 circuits

5096-05C Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0010634057
Active
kk
7.92mm (.312") Pitch SPOX™ Header, Vertical, with Friction Lock, 5 Circuits
Documents:
3D Model

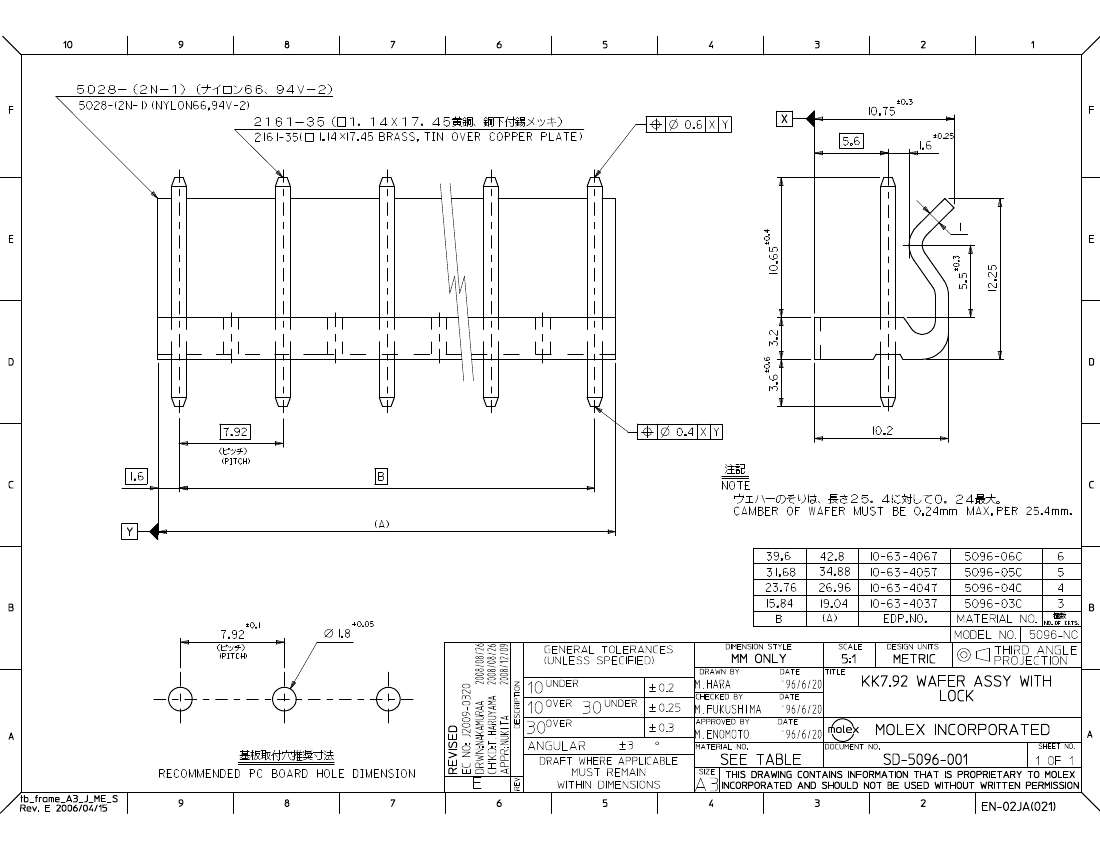

Drawing (PDF)
Product Specification PS-5195-002 (PDF)
Product Specification PS-5195-006 (PDF)
Product Specification PS-5239-005 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
R72090224
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
5096
Wire-to-Board
kk
SPOX™
Physical
Breakaway
Circuits (Loaded)
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
5
30
No
94V-2
No
No
None
Yes
Brass
Tin
Tin
Nylon
1
Vertical
0.142 In
3.60 mm
No
None
0.062 In
1.60 mm
Bag
0.312 In
7.92 mm
200
5
200
5
No
Partial
No
-40°C to +105°C
Through Hole
Search Parts in this Series
5096Series
Mates With
5195 SPOX™ Crimp Housing. 5239 KK®
Crimp Housing
