50862-7225

Description
terminal r70-10 r70-10
CategoryThe connector    terminals
File Size27KB，1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

50862-7225 Overview

terminal r70-10 r70-10

50862-7225 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial number50862
Terminal and terminal strip typesRING TERMINAL
Conductor cross section76.28 mm2
Base Number Matches1

Preview

Download Datasheet

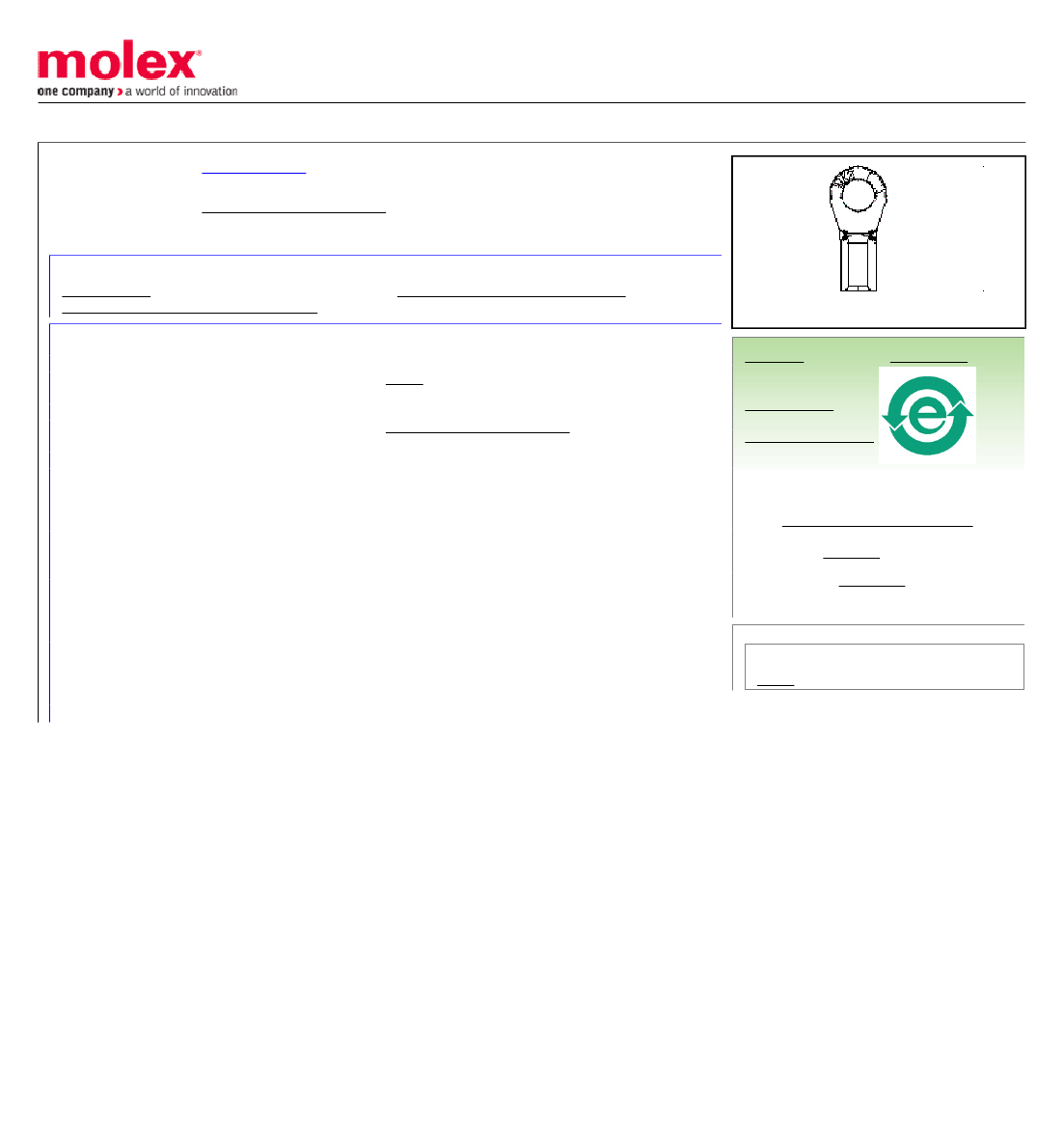

This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0508627225
Planned for Obsolescence
ring_tongue__spade_terminals
Ring Tongue Terminal for 2/0 AWG, Closed Uninsulated Brazed Barrel, Stud Size M10,
Oxygen-Free Copper, Length 51.00mm (2.008")
Documents:
Drawing (PDF)
Product Specification PS-50862-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Ring and Spade Terminals
50862
Yes
N/A
ring_tongue__spade_terminals
R (Ring)
Ring
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Overview
Product Name
Type
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
M10
2/0
60.57 - 76.28
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Country of Origin
JP, KR
Search Parts in this Series
50862Series
PS-50862-001
SD-50862-001
Reference - Drawing Numbers
Product Specification
Sales Drawing
This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
