50446-7225: Descriptionring tongue double hole terminal for 300 - 350mcm awg, closed uninsulatedbrazed barrel, stud size No hole, oxygen-free copper, length 111.00mm (4.370"); CategoryThe connector terminals; File Size74KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50446-7225 Overview

ring tongue double hole terminal for 300 - 350mcm awg, closed uninsulatedbrazed barrel, stud size No hole, oxygen-free copper, length 111.00mm (4.370")

50446-7225 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	50446
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	192.6 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 03/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0504467125

Active

Ring Tongue Double Hole Terminal for 300 - 350MCM AWG, Closed Uninsulated

Brazed Barrel, Stud Size M14, Oxygen-Free Copper, Length 111.00mm (4.370")

Documents:

Drawing (PDF)

Product Specification PS-50442-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

50446

Yes

N/A

RD (Double-Hole)

Ring

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Closed - Brazed

None

Tin

Bag

40

1

40

1

M14

Crimp or Compression

300MCM, 350MCM

152.05 - 192.6

Material Info

Reference - Drawing Numbers

Product Specification

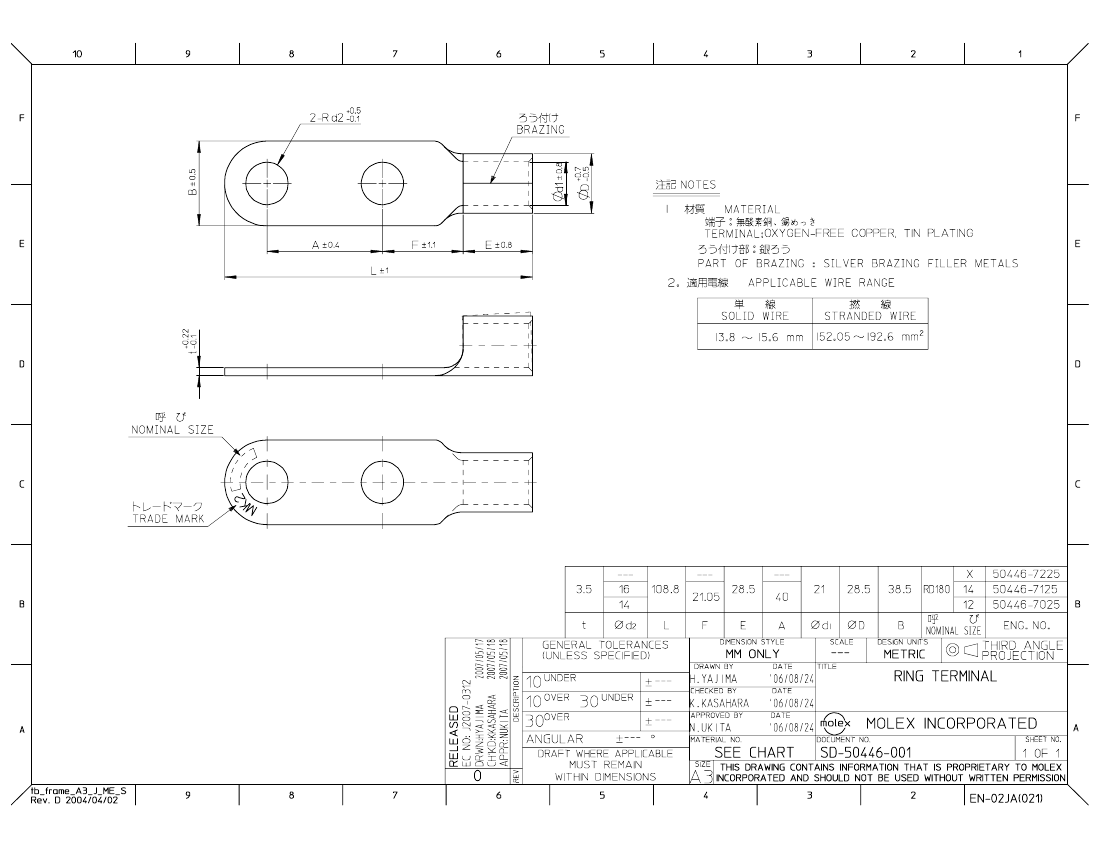

Sales Drawing

PS-50442-001

SD-50446-001

Search Parts in this Series

50446Series

Application Tooling

|

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Japan

Description

Product #

Tool Kit For

0573439001

57343-9012

This document was generated on 03/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

50446-7225 Related Products

	50446-7225	50446-7125	0504467125
Description	ring tongue double hole terminal for 300 - 350mcm awg, closed uninsulatedbrazed barrel, stud size No hole, oxygen-free copper, length 111.00mm (4.370")	Ring Tongue Double Hole Terminal for 300 - 350MCM AWG, Closed UninsulatedBrazed Barrel, Stud Size M14, Oxygen-Free Copper, Length 111.00mm	Ring Tongue Double Hole Terminal for 300 - 350MCM AWG, Closed UninsulatedBrazed Barrel, Stud Size M14, Oxygen-Free Copper, Length 111.00mm
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Manufacturer's serial number	50446	50446	50446
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL	RING TERMINAL
Conductor cross section	192.6 mm2	192.6 mm2	192.6 mm2
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-
