(1/13)
Common Mode Choke Coils(Line Filters) for AC Power Supply
Conformity to RoHS Directive
Toroidal Core Type TF Series
TDK common mode choke coils(line filters) are used in a wide
range of prevention of electromagnetic interference(EMI) and radio
frequency interference(RFI) from power supply lines and for pre-
vention of multifunctioning of products such as measuring equip-
ment and system equipment.
FEATURES
• Wide range of selection.
• High impedance at applicable frequency.
• High self-resonant frequency.
PRODUCT IDENTIFICATION
TF
(1)
(2)
V - A
(3) (4)
Y
(5)
R
(6)
- 01
(7)
(1) Core shape
TF: Toroidal core
(2) Dimensional code
Width× Depth
(3) External shape code
V:
Vertical type
H:
Horizontal type
(4) High µ material
(5) Inductance value
Example) 133:13mH
(6) Rated current value
Example) 3R0:3.0A
(7) Product management number
SELECTION CHART
Series
Configuration
Type
Inductance value
min.
Rated current
(A)
Handling power
∗
L× I
2
(mH× A
2
)
Weight
(g)typ.
Minimum
package quantity
(pieces/box)
960
560
460
440
240
960
550
380
320
280
700
320
Vertical type
TF
Horizontal type
Vertical type
(For high frequency)
TF1813V
TF2518V
TF2721V
TF3020V
TF3525V
TF1713H
TF2520H
TF2722H
TF3022H
TF3526H
TF2628V-1H
TF3524V-1H
2 to 20mH
0.65 to 9mH
1 to 13mH
0.35 to 13mH
0.65 to 20mH
2 to 20mH
0.65 to 9mH
1 to 13mH
0.35 to 13mH
0.65 to 20mH
25 to 65µH
25 to 120µH
0.7 to 3.2
2.5 to 10
2.5 to 10
3 to 20
3 to 20
0.7 to 3.2
2.5 to 10
2.5 to 10
3 to 20
3 to 20
6 to 12
8 to 20
20
50
75
130
195
20
50
75
130
195
3.65
10.8
5
15
20
30
41
5.3
15
20
32
42
18
40
∗
Handling power=(Inductance value)× (Current)
2
. It is possible to design within the range below this value.
[Example] The coil for 2A can make even the inductance of 2.5mH or less a product for handling power 10.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
001-03 / 20061027 / e93_tf.fm
(2/13)

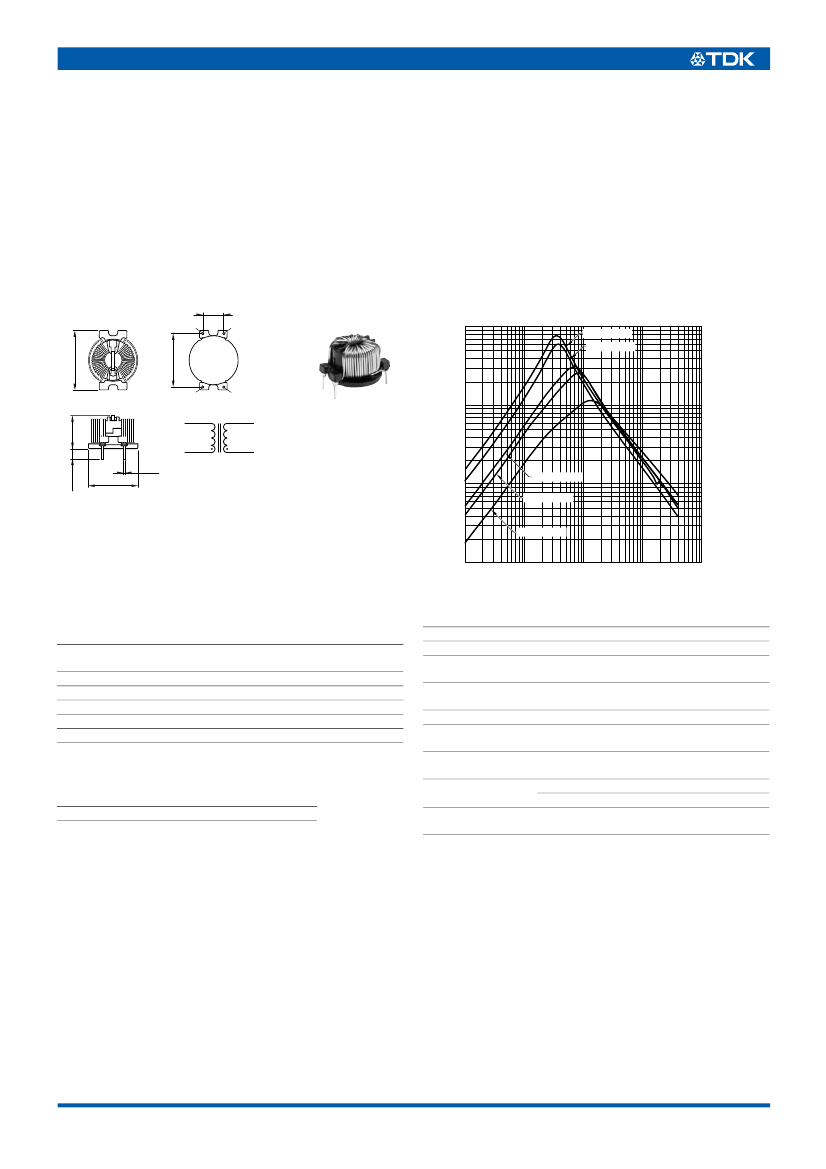

Horizontal Type TF Series
FEATURES
• This series uses a high permeability toroidal ferrite core and
therefore provide large inductance with a little number of turns.
• Therefore its stray capacity is small and it keeps the impedance
required to effectively suppress high frequency noises.
• Products mounted on a base with fixed leads are easy to insert
to circuit boards.
TF1713H-A(HORIZONTAL TYPE WITH TERMINAL BASE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
7±0.5
1
4
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
100
A203Y0R7
A153Y1R0
17.5±0.5
2
20max.
3
10
1
4
2
3
3.5±1
ø0.7
17max.
Weight: 5.3g typ.
Recommended hole diameter: ø1.2
Dimensions in mm
Impedance (kΩ)
13max.
1
A652Y1R6
A502Y2R0
A202Y3R2
0.1
0.01
0.1
1
Frequency (MHz)
10
100
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
Part No.
TF1713H-A203Y0R7-01
TF1713H-A153Y1R0-01
TF1713H-A652Y1R6-01
TF1713H-A502Y2R0-01
TF1713H-A202Y3R2-01
Inductance
(mH)min.
20
15
6.5
5
2
DC resistance
(Ω)max.
0.73
0.44
0.19
0.14
0.065
Rated current
Iac(A)max.
0.7
1
1.6
2
3.2
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ)
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
TF1713H-A
960pieces/box
• All specifications are subject to change without notice.
001-03 / 20061027 / e93_tf.fm
(3/13)

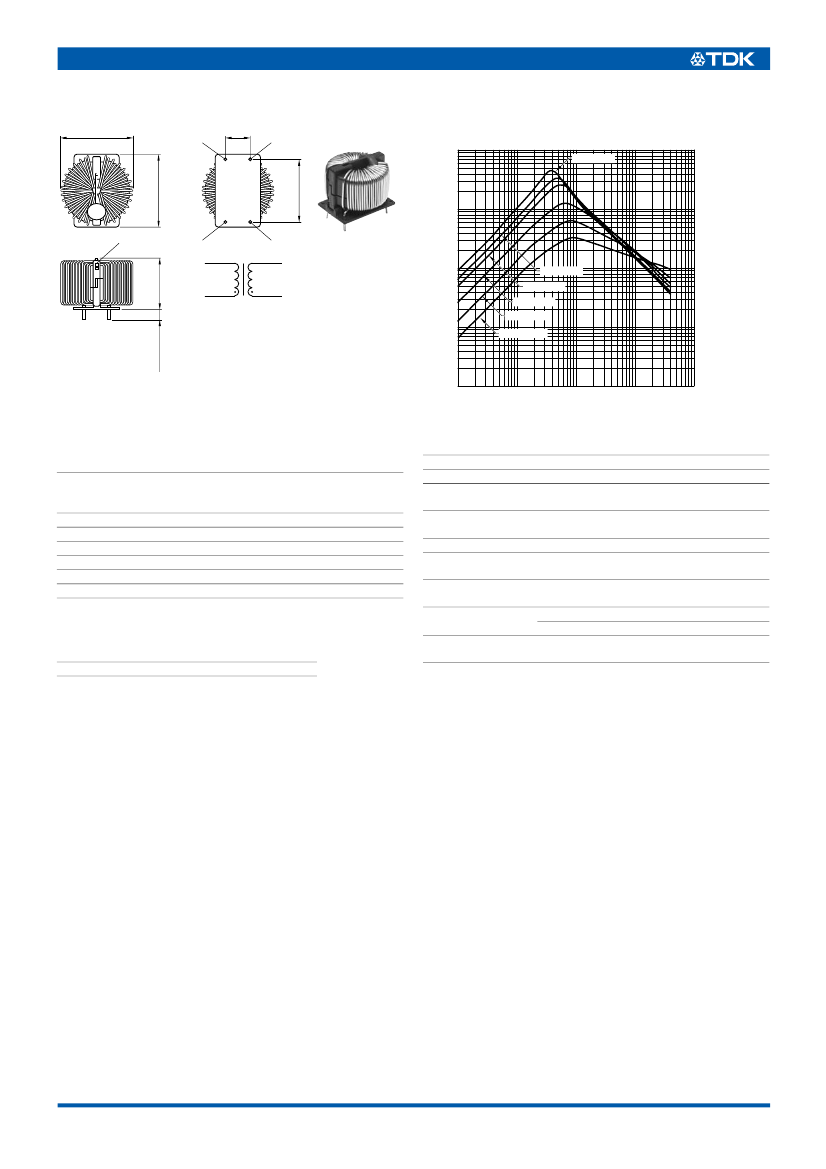

TF2520H-A(HORIZONTAL TYPE WITH TERMINAL BASE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
25max.
2
(11)
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
100
902Y2R5
3
25max.
(20)
10
Impedance (kΩ)
Lot No.
20max.
1
1
2
4
4
3
1
702Y3R0
502Y4R0
252Y5R0
102Y8R0
651Y10R0
3.75±0.75
Weight: 15g typ.
Recommended hole diameter: ød+0.5
Dimensions in mm
0.1
0.01
0.01
0.1
1
Frequency (MHz)
10
100
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
DC
Inductance
Part No.
resistance
(mH)min.
(Ω)max.
TF2520H-A902Y2R5-01 9
0.12
TF2520H-A702Y3R0-01 7
0.095
TF2520H-A502Y4R0-01 5
0.075
TF2520H-A252Y5R0-01 2.5
0.05
TF2520H-A102Y8R0-01 1
0.025
TF2520H-A651Y10R0-01 0.65
0.02
Rated
current
Iac(A)max.
2.5
3
4
5
8
10
ød
(mm)
0.6
0.65
0.7
0.75
0.95
1
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ)
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
TF2520H-A
550pieces/box
• All specifications are subject to change without notice.
001-03 / 20061027 / e93_tf.fm
(4/13)

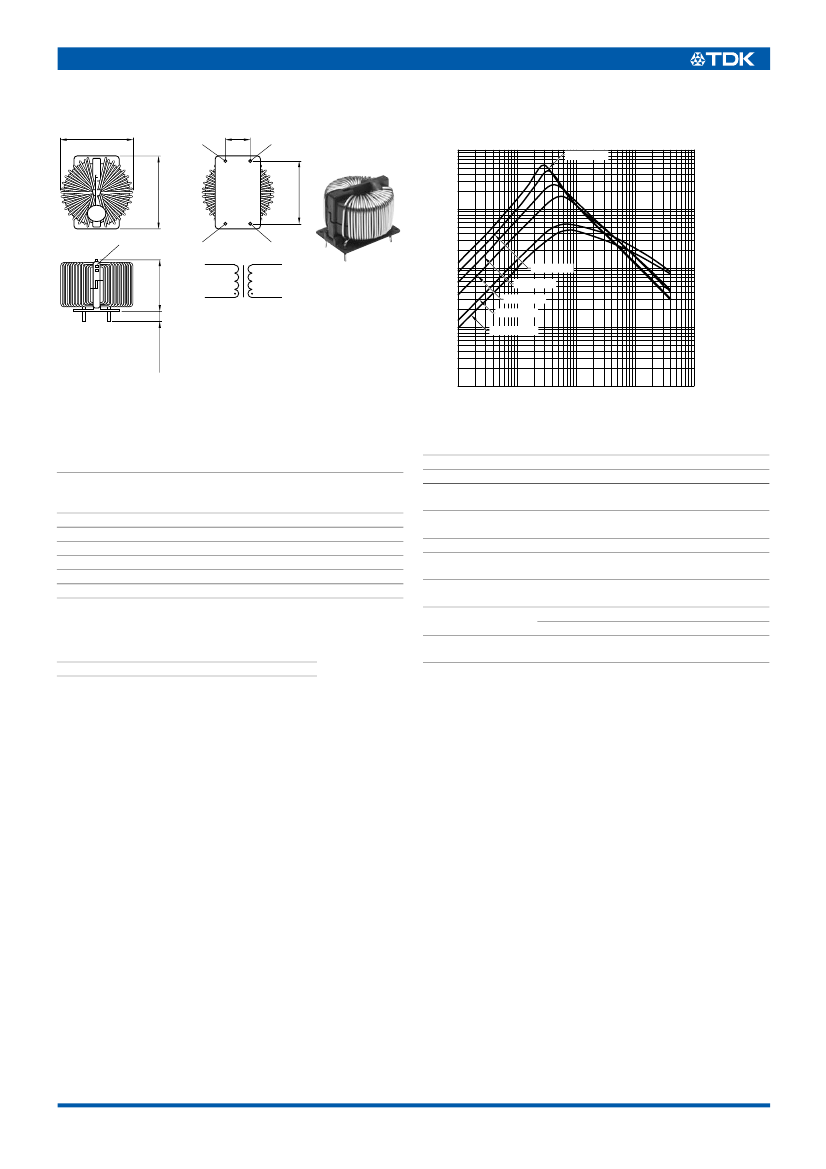

TF2722H-A(HORIZONTAL TYPE WITH TERMINAL BASE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
27max.
2
(11)
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
100
133Y2R5
3
27max.
(20)
10
Impedance (kΩ)
Lot No.
22max.
1
1
2
4
4
3
1
103Y3R0
652Y4R0
422Y5R0
152Y8R0
102Y10R0
3.75±0.75
Weight: 20g typ.
Recommended hole diameter: ød+0.5
Dimensions in mm
0.1
0.01
0.01
0.1
1
Frequency (MHz)
10
100
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
DC
Inductance
Part No.
resistance
(mH)min.
(mΩ)max.
TF2722H-A133Y2R5-01 13
130
TF2722H-A103Y3R0-01 10
90
TF2722H-A652Y4R0-01 6.5
60
TF2722H-A422Y5R0-01 4.2
40
TF2722H-A152Y8R0-01 1.5
20
TF2722H-A102Y10R0-01 1
11
Rated
current
Iac(A)max.
2.5
3
4
5
8
10
ød
(mm)
0.65
0.7
0.8
0.9
1
1.2
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ)
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
TF2722H-A
380pieces/box
• All specifications are subject to change without notice.
001-03 / 20061027 / e93_tf.fm
(5/13)

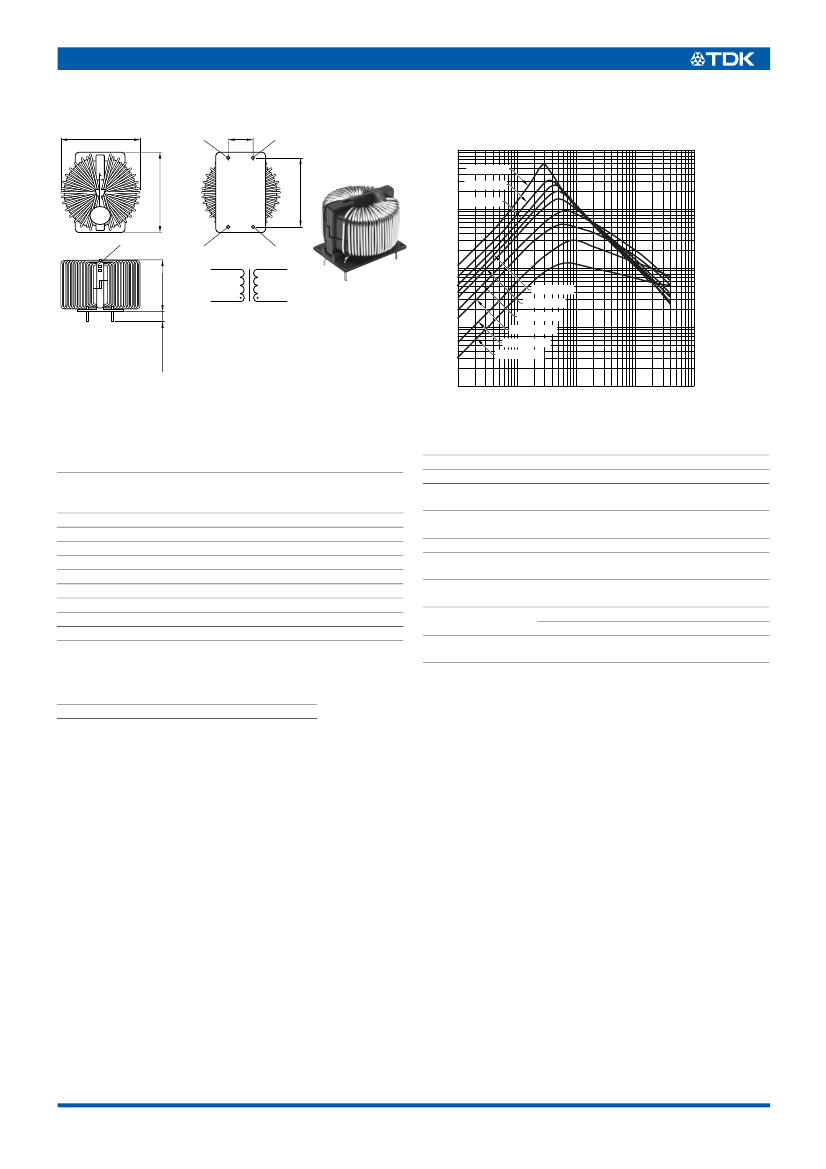

TF3022H-A(HORIZONTAL TYPE WITH TERMINAL BASE) TYPE
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM
30max.
2
(11)
3
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
100
133Y3R0
30max.
(24)
802Y4R0
10
Impedance (kΩ)
602Y5R0
Lot No.
22max.
1
1
2
4
4
3
1
502Y6R0
402Y7R0
252Y8R0
172Y10R0
701Y15R0
351Y20R0
3.75±0.75
Weight: 32g typ.
Recommended hole diameter: ød+0.5
Dimensions in mm
0.1
0.01
0.01
0.1
1
Frequency (MHz)
10
100
ELECTRICAL CHARACTERISTICS
(STANDARD LINE UP)
DC
Inductance
Part No.
resistance
(mH)min.
(Ω)max.
TF3022H-A133Y3R0-01 13
0.1
TF3022H-A802Y4R0-01 8
0.07
TF3022H-A602Y5R0-01 6
0.05
TF3022H-A502Y6R0-01 5
0.04
TF3022H-A402Y7R0-01 4
0.035
TF3022H-A252Y8R0-01 2.5
0.025
TF3022H-A172Y10R0-01 1.7
0.015
TF3022H-A701Y15R0-01 0.7
0.007
TF3022H-A351Y20R0-01 0.35
0.005
Rated
current
Iac(A)max.
3
4
5
6
7
8
10
15
20
ød
(mm)
0.75
0.8
0.9
0.95
1
1.1
1.3
1.6
1.7
RATINGS
Item
Standard value
Conditions
Rated voltage(V)
80 to 280
50Hz/60Hz
Dielectric withstanding
Between each winding for
2000
voltage(V)
1 minute
Insulation resistance
Between each winding for
100min.
(MΩ)
DC.500V
Temperature rise(°C)
45max.
With line resistance
Operating temperature
Including self-temperature
–20 to +120
range(°C)
rise
Storage temperature
–20 to +85
range(°C)
260±5°C, 10±1sec Solder bath method
Resistance to
soldering tenperature
∗1
350±5°C, 5sec max. Soldering iron method
Applicable safety
Electrical Appliance and Material Safety
∗2
Law ("DENAN"), IEC60065, UL6500, CSA C22.2
standard
∗1
Pb free solder(Sn-3Ag-0.5Cu)
∗2
However, this product is not recognized by each regulations.
• Measuring equipment of inductance value:
LCR meter(HP4261A, HP4263B or equivalent)[f=1kHz]
PACKAGING QUANTITIES
TF3022H-A
320pieces/box
• All specifications are subject to change without notice.
001-03 / 20061027 / e93_tf.fm
