3270W154K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3270W154K

3270W154K: DescriptionPotentiometer, 0.25W, 150000ohm, 10% +/-Tol, 100ppm/Cel, 2518; CategoryPassive components The resistor; File Size113KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3270W154K Overview

Potentiometer, 0.25W, 150000ohm, 10% +/-Tol, 100ppm/Cel, 2518

3270W154K Parametric

Parameter Name	Attribute value
Objectid	299658247
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rectangular
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	6.35 mm
Package length	6.35 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	4.45 mm
method of packing	Tube
Rated power dissipation(P)	0.25 W
resistance	150000 Ω
Resistor type	POTENTIOMETER
rotation angle	4320 deg
size code	2518
Temperature Coefficient	100 ppm/°C
Tolerance	10%

Preview

Download Datasheet

View All

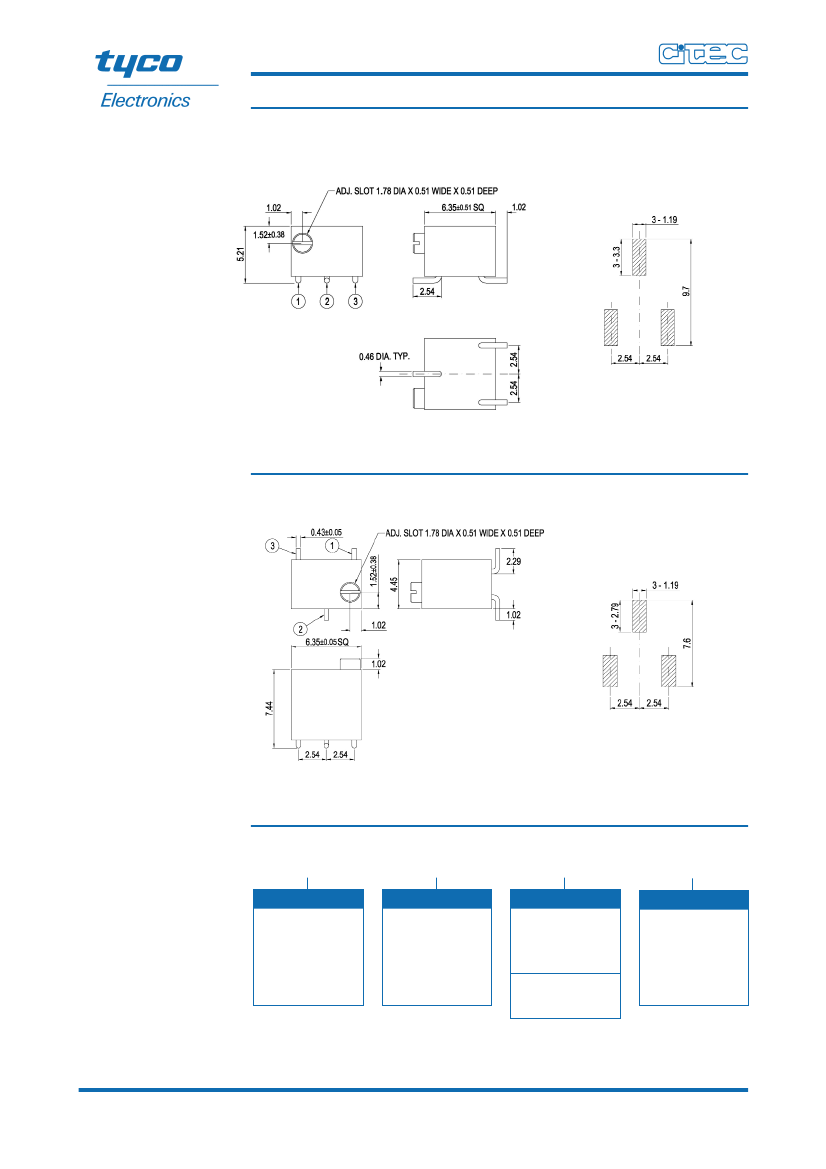

SMD Professional Trimmers

Type 3270 Series

Characteristics -

Electrical

Resistance Range:

Resistance Tolerance:

Absolute Minimum Resistance:

Contact Resistance Variation:

Adjustability:

Resolution:

Insulation Resistance:

Dielectric Strength:

This is the surface mount version of the

popular Tyco 4270. Top adjust and

low profile side adjust versions are

available in special high temperature

resistant packages. This multi-turn

device offers good setability, infinite

resolution and the other specification

features

typical

conventional

trimmers yet now suitable for s.m.

applications.

10R to 1M

± 10% standard (closer tolerance available)

1% or 2 ohms maximum

3.0% or 3 ohms (whichever is greater)

Voltage ± 0.02% : Resistance ± 0.05%

Infinite

500 VDC, 1000M minimum

Sea level 600 VAC 80,000 feet 250 VAC

12 turns nominal

Electrical Travel:

Characteristics -

Mechanical

Torque:

Mechanical Stops:

Terminals:

Weight:

Mechanical Travel:

21 mNm maximum

Wiper idles

Solderable pins

0.4 gram maximum

16 turns nominal

Key Features

Stable, Infinite Resolution

Element

High Temperature

Construction

0.25 Watt Power Rating

at 85°C

Low Temperature Coefficient:

± 100ppm/°C

Vertical and Low Profile

Adjust Style

Sealed to Withstand Dip

and Wave Solder

Packaged in Plastic Tubes

Characteristics -

Environmental

Maximum Exposure Temperature/Time:

Power Rating (300 Volts maximum):

Temperature Range:

Temperature Coefficient of Resistance:

Seal Test:

Humidity:

Vibration:

Shock:

Load Life:

Mechanical Life:

+245°C 10 seconds

0.25 Watt at 85°C derating to zero at 150°C

-65°C to 150°C

± 100ppm/°C maximum

85°C fluorinert

MIL STD 202 method 106

(2%

∆TR,

IR 100 MW minimum)

30G (1%

∆TR

∆VR)

100G (1%

∆TR

∆VR)

∆R

3% (1000 hours, 0.25 Watts at 85°C)

200 cycles

Literature No. 1773137

Issued: 08-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
