0673514804: Descriptionmicrocross? dvi-D digital visual interface, pcb receptacle, polyester (pbt),through hole, right angle, gold (Au) flash, 2.34mm (.092") PC tail length, screw; CategoryThe connector The connector; File Size178KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0673514804 Overview

microcross? dvi-D digital visual interface, pcb receptacle, polyester (pbt),through hole, right angle, gold (Au) flash, 2.34mm (.092") PC tail length, screw

0673514804 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (2)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYESTER
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

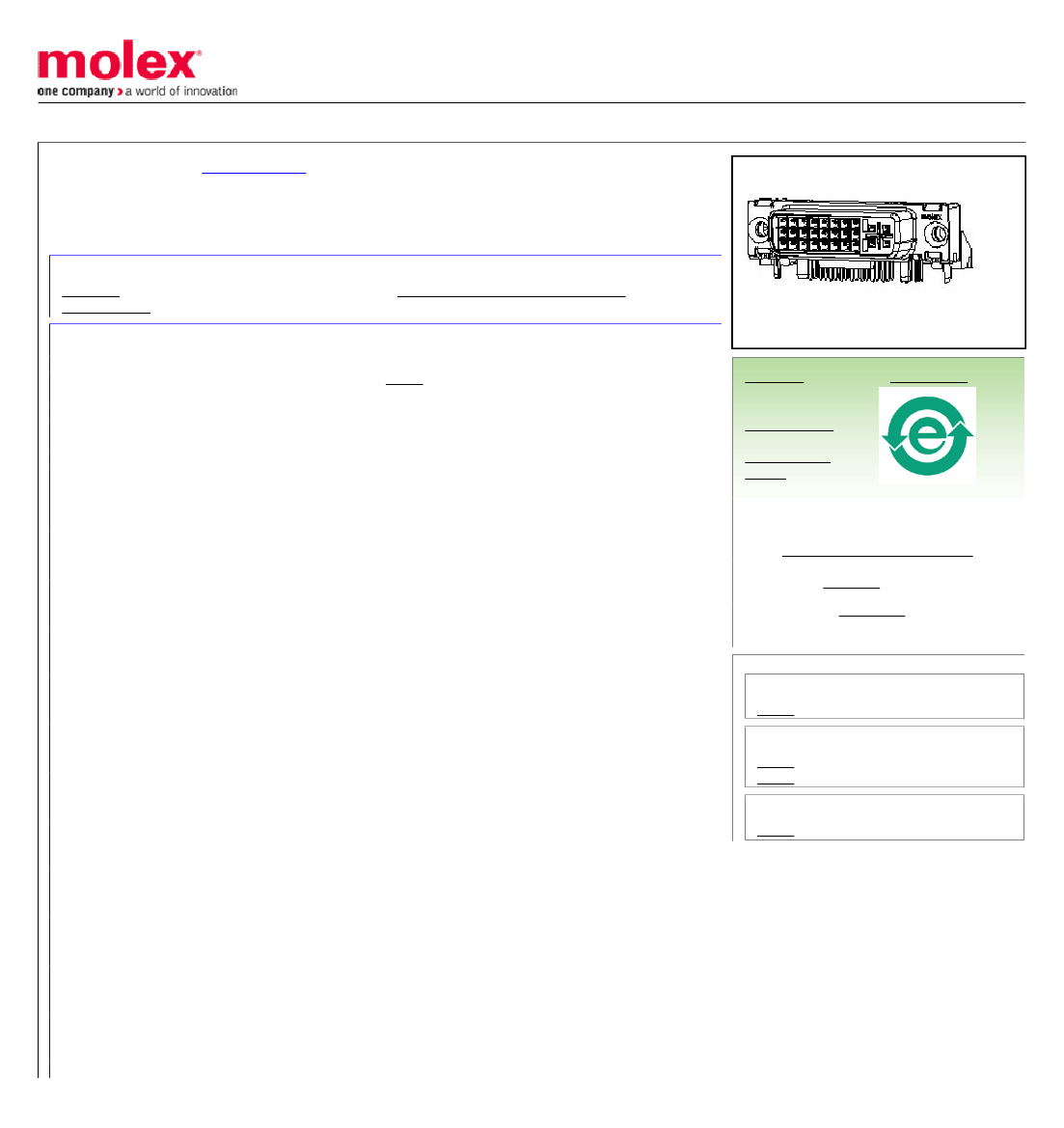

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0673514804

Active

MicroCross™ DVI-D Digital Visual Interface, PCB Receptacle, Polyester (PBT),

Through Hole, Right Angle, Gold (Au) Flash, 2.34mm (.092") PC Tail Length, Screw

Hole, 4-40 Thread, 24 Circuits, Lead Free

Documents:

3D Model

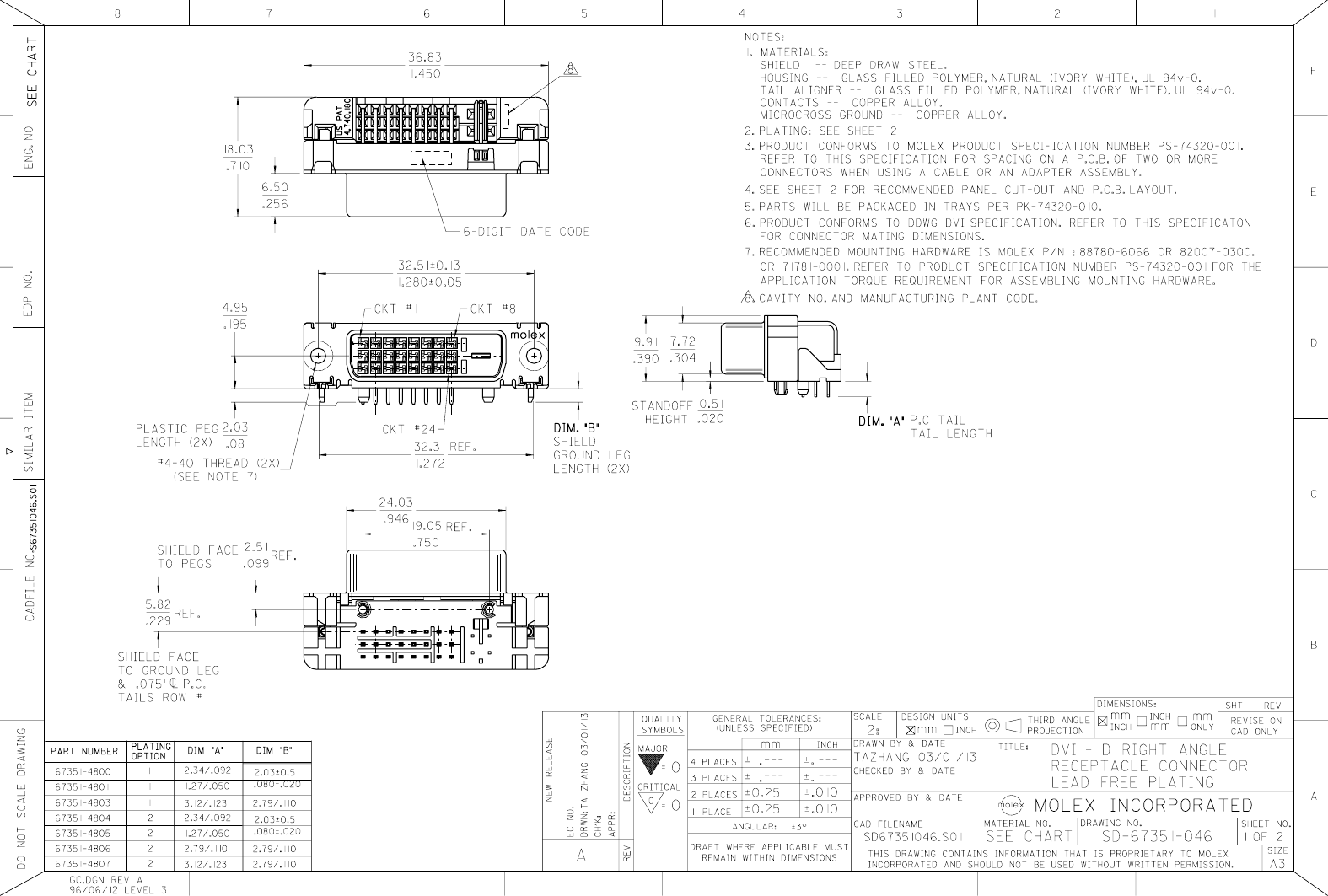

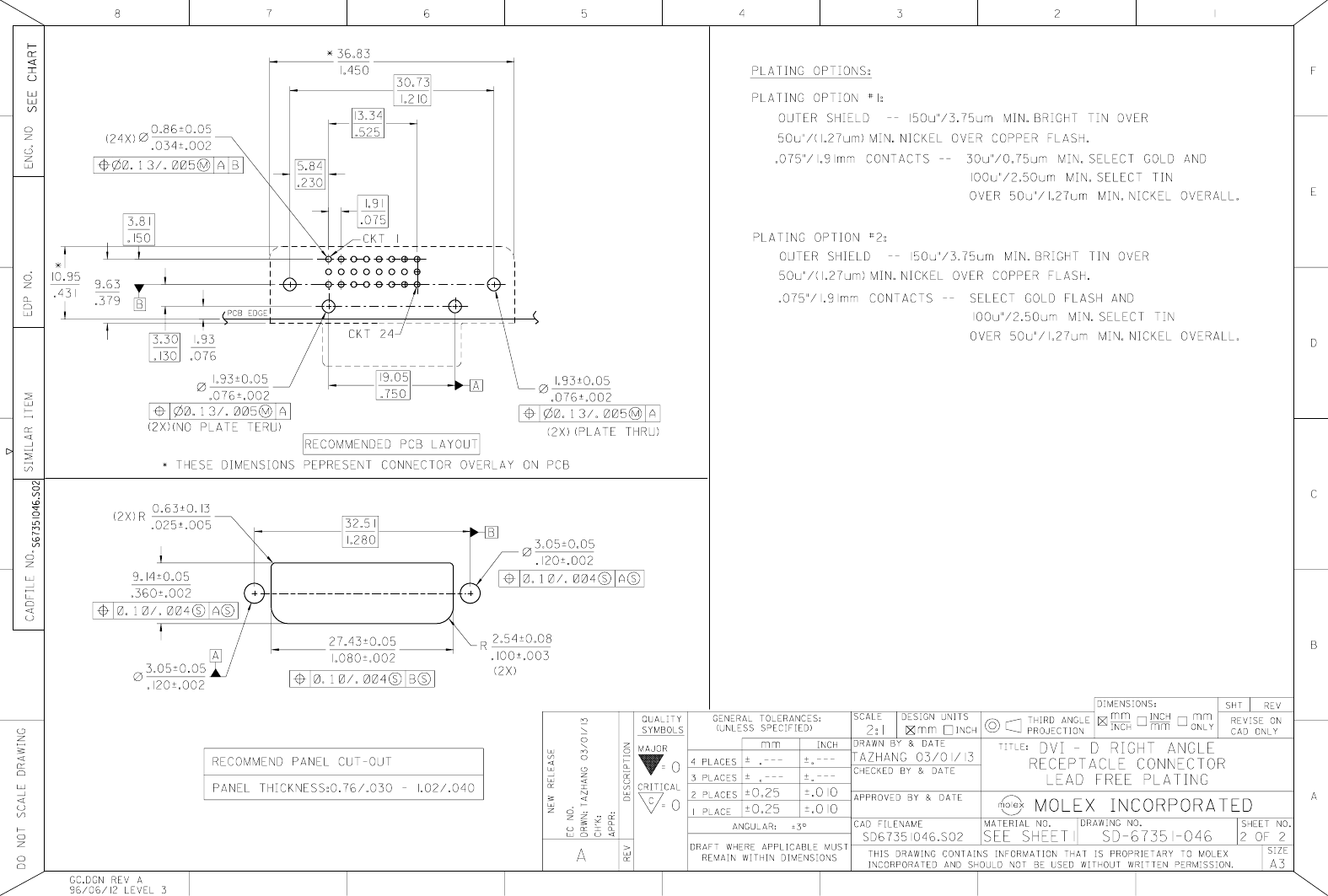

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

Component Type

Product Name

Type

I/O Connectors

67351

Wire-to-Board

DDWG (Digital Display Working Group) Standard

Receptacle

MicroCross™DVI

N/A

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Gender

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire Size AWG

N/A

Ivory, Natural

100

Receptacle

Yes

Copper Alloy

Gold

Tin

Polyester

Right Angle

0.092 In

2.34 mm

Yes

Tray

Yes

0.075 In

1.91 mm

0.075 In

1.91 mm

0.05

100

2.50

Yes

-20°C to +85°C

Through Hole

N/A

Search Parts in this Series

67351Series

Mates With

74323 MicroCross™ DVI Plug Components.

88741 MicroCross™ DVI Cable Assemblies

Use With

71781 Panel Mount Hex Screw Kit
