71226-0433 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71226-0433

71226-0433: Descriptionffc / fpc connector 1mm ffc zif peg retn IF peg retnBarb 4ckt; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

71226-0433 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71226-0433	-	-	View	Buy Now

71226-0433 Overview

ffc / fpc connector 1mm ffc zif peg retn IF peg retnBarb 4ckt

71226-0433 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ZIF, STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.142 inch
subject depth	0.299 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.124 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

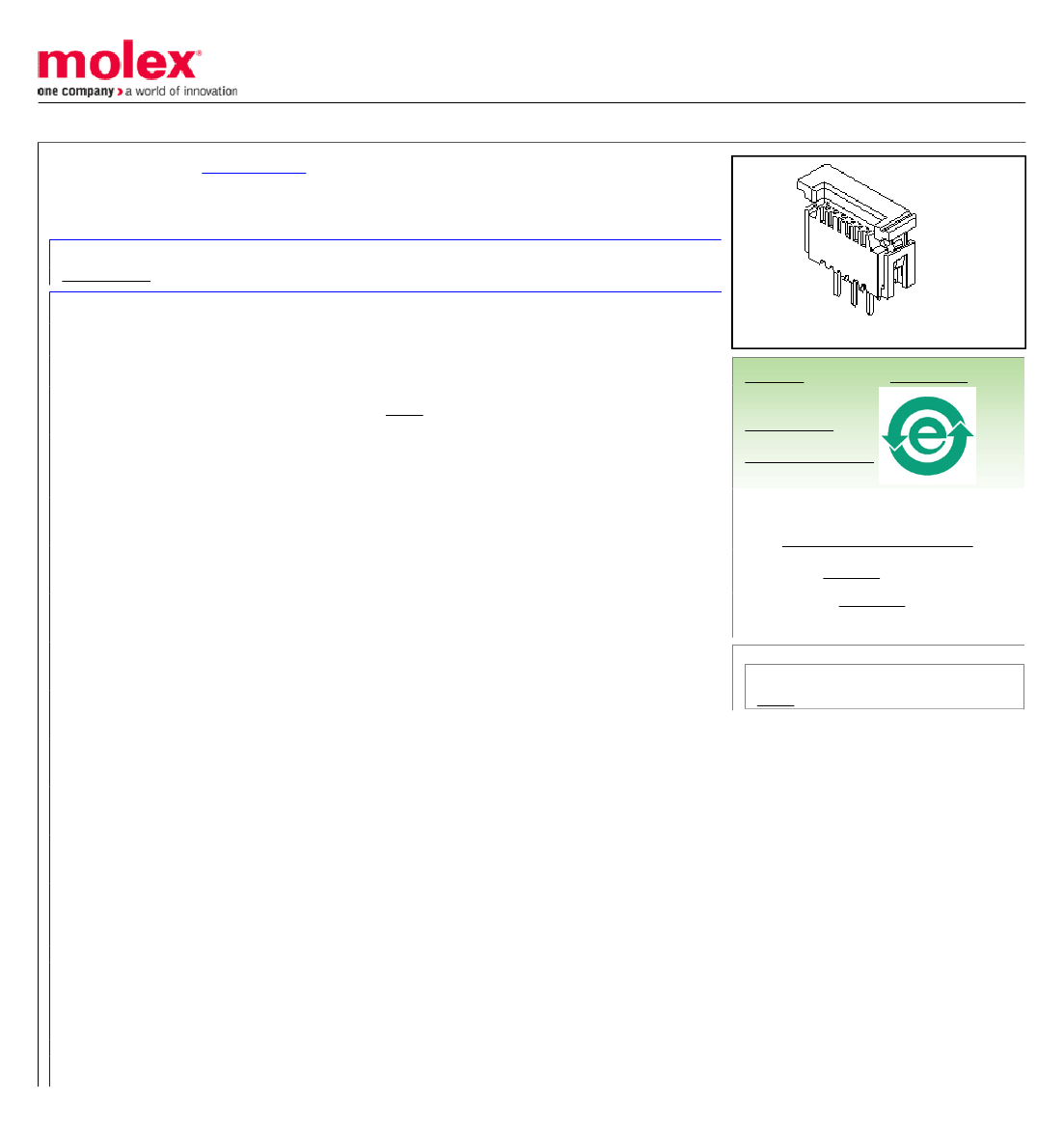

Preview

Download Datasheet

View All

This document was generated on 11/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0712260433

Obsolete

1.00mm (.039") Pitch ZIF Receptacle, Vertical, FFC Retention Barbs, 3.15mm (.124")

PC Tail Length, with Plastic Polarizing Peg, 4 Circuits

Documents:

Drawing (PDF)

Agency Certification

CSA

LR19980

E29179

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Comments

Product Name

FFC/FPC Connectors

71226

Options: Barb, Peg, Color

N/A

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Natural

N/A

Vertical

94V-0

6.00mm (.236")

Phosphor Bronze

Tin

High Temperature Thermoplastic

Vertical

3.15mm (.124")

Yes

2.40mm (.094")

Tray

1.00mm (.039")

5.080µm (200µ")

Yes

-20°C to +80°C

Through Hole

FFC/FPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

71226Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

Material Info

Country of Origin

Reference - Drawing Numbers
